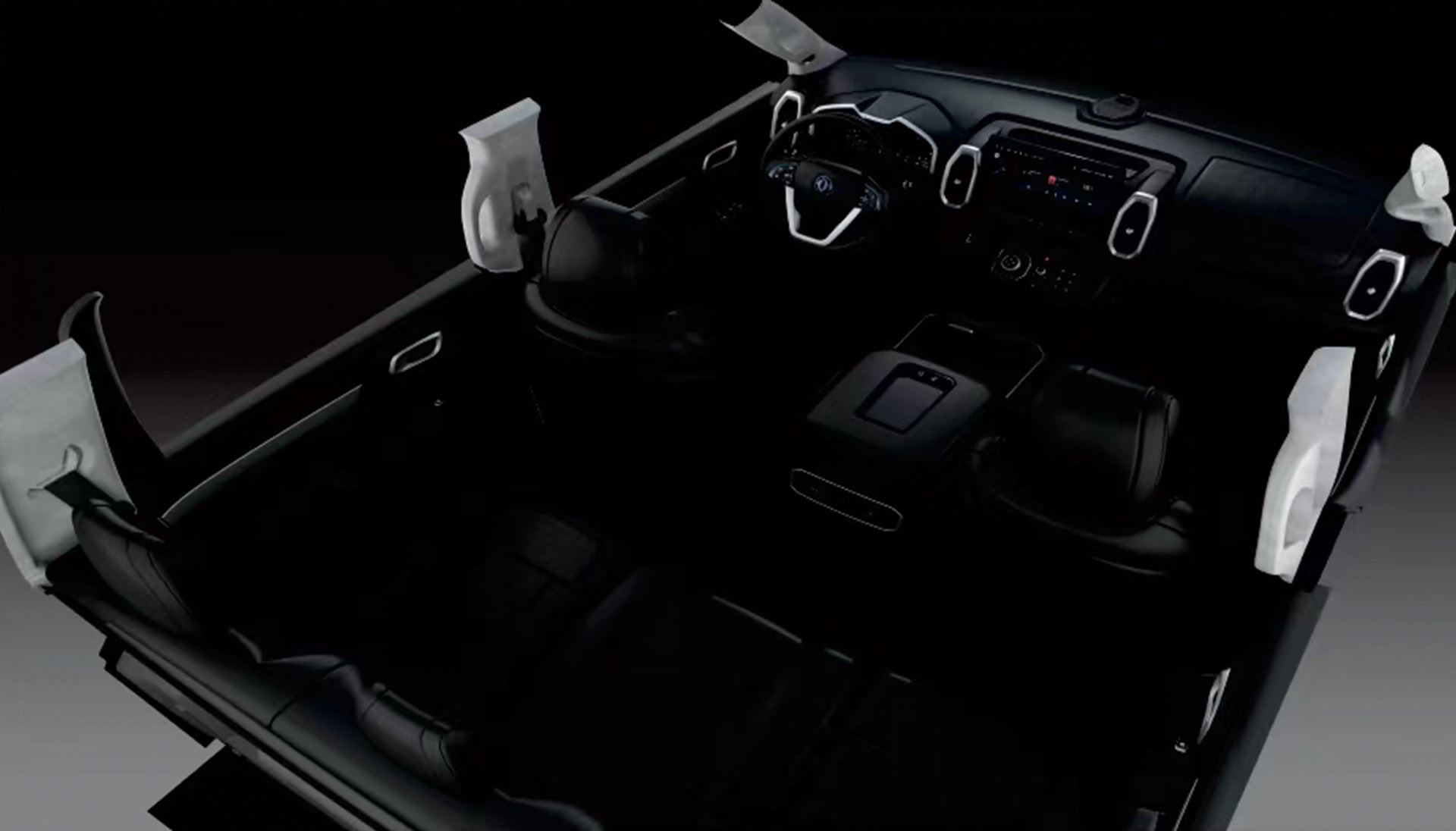

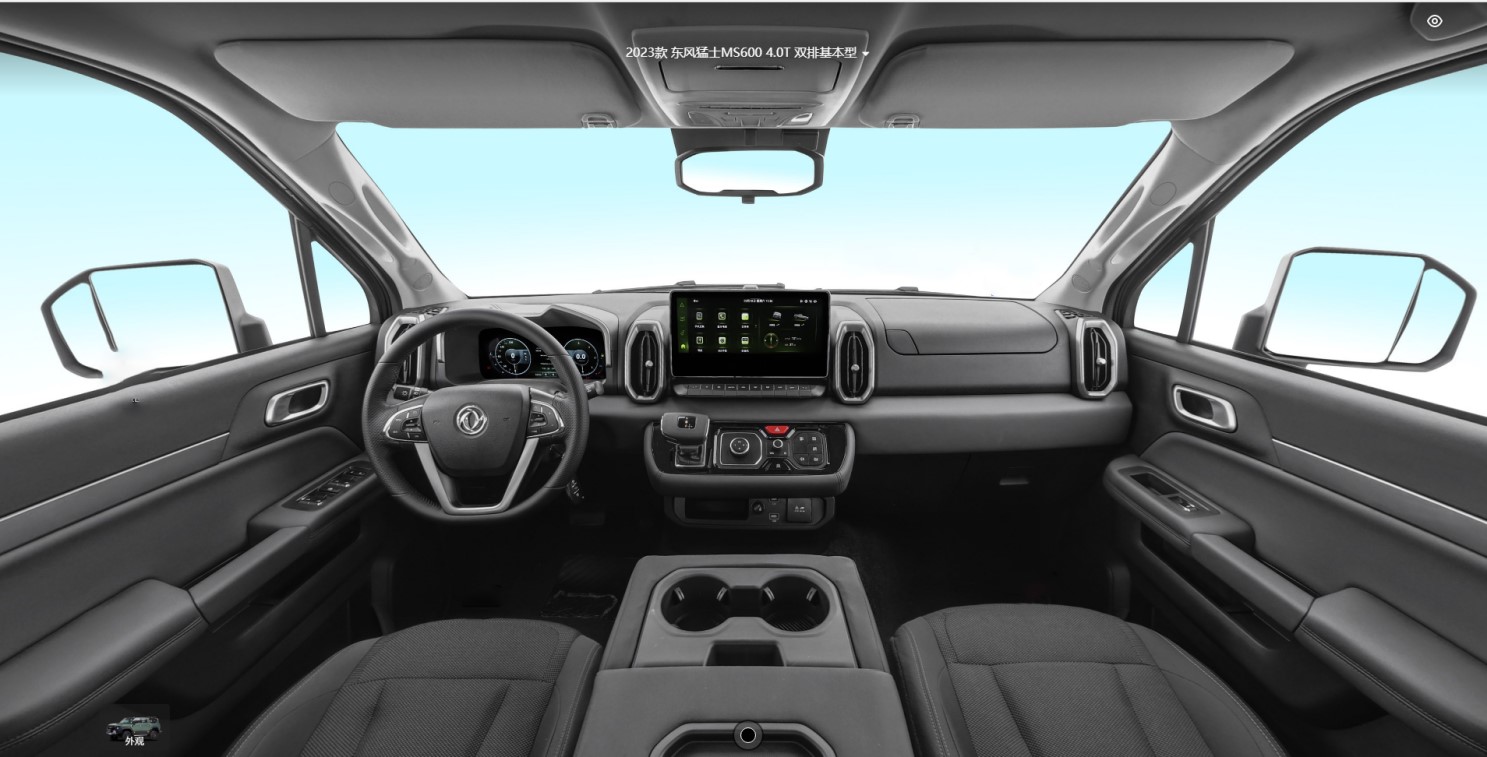

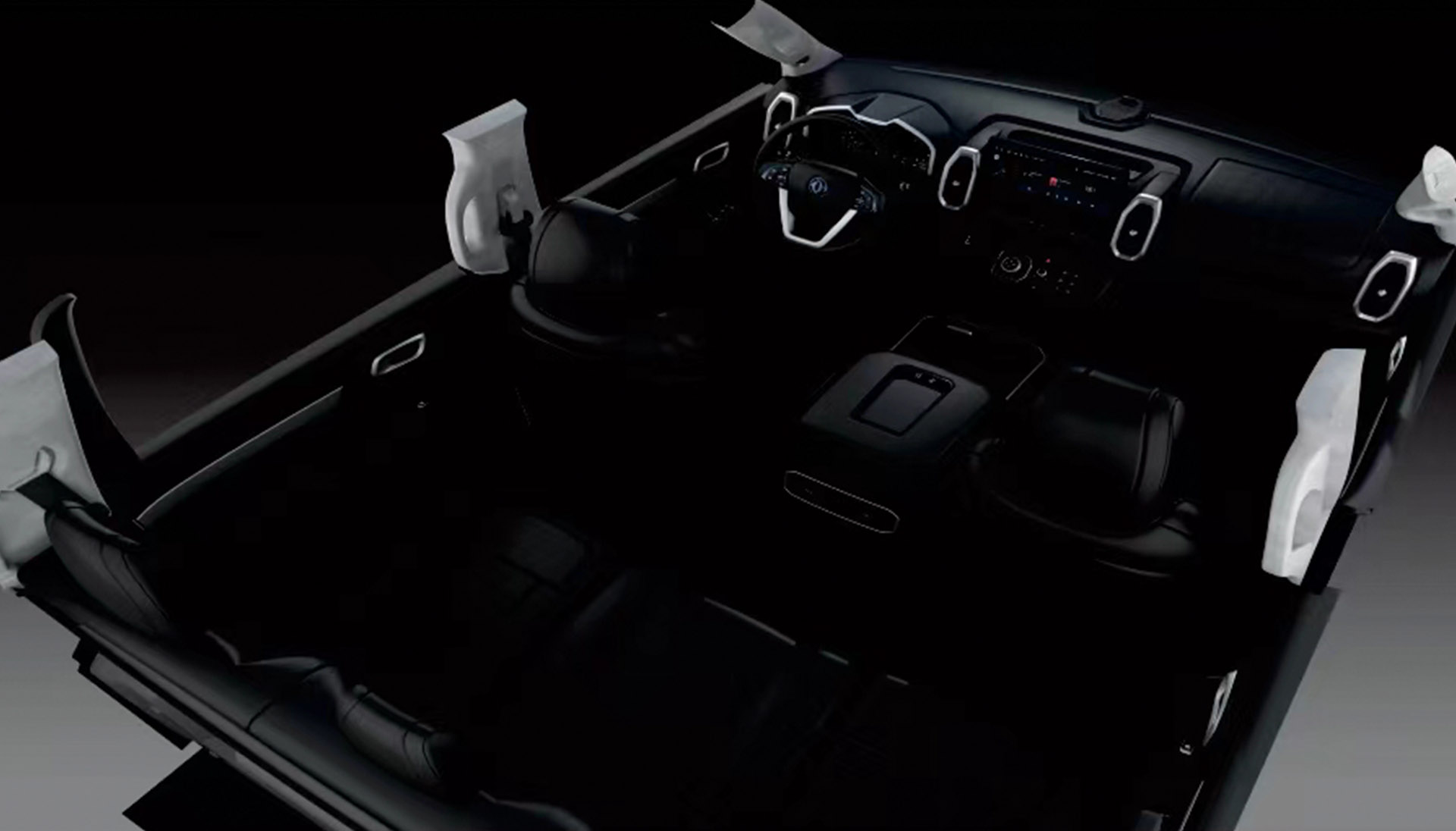

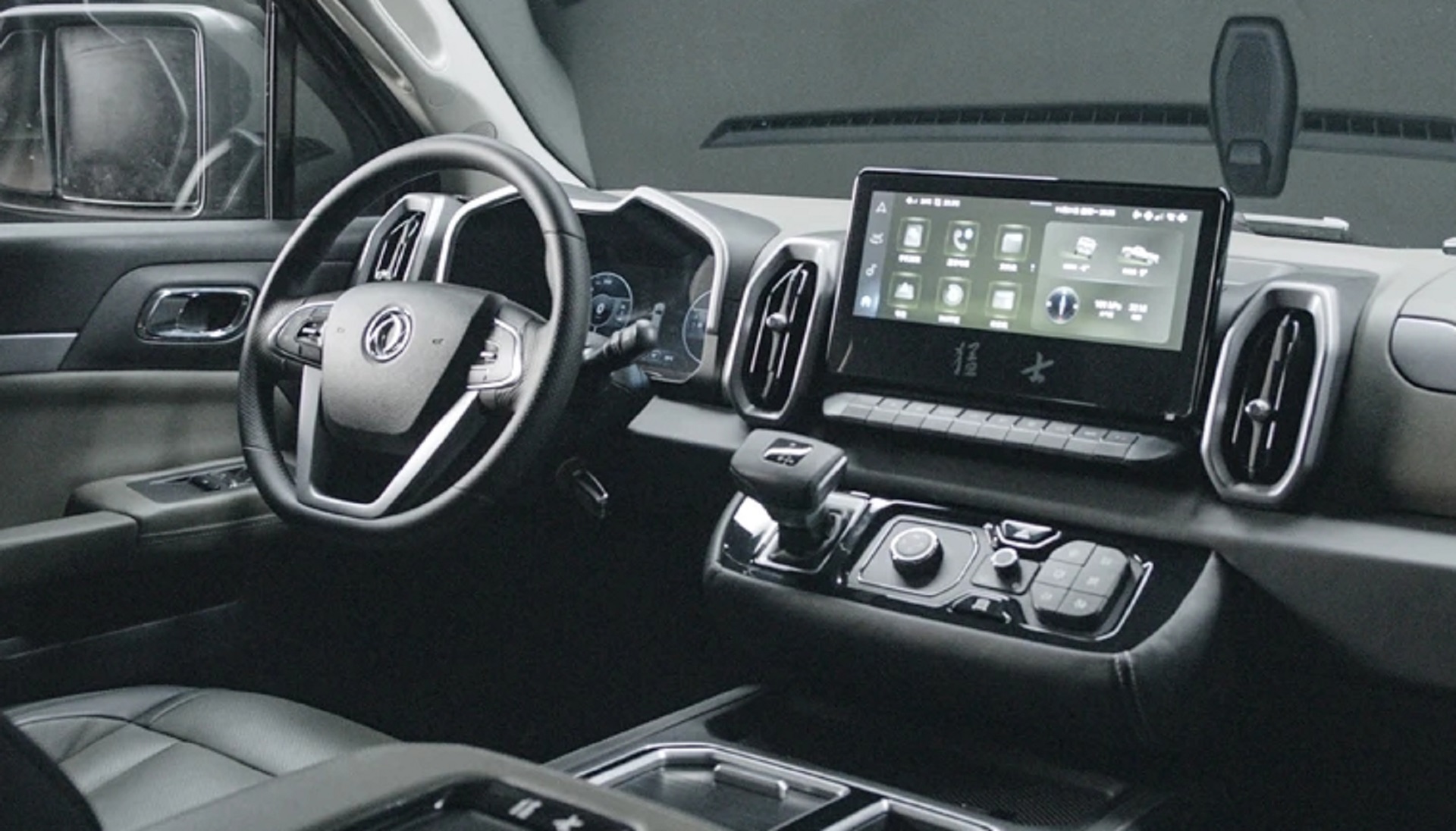

Comfortable Interior

1680mm wide horizontal seating space, comfortable and durable; 12.8-inch suspended three-dimensional central control screen allowing quick access to vehicle driving information.

staring-image

Steady Control

High-load rack-and pinion steering, easy to control, clear sense of road; PIS-2 high-performance independent suspension, smooth operation.

staring-image

Driving Convenience

Infrared night vision system, all time perception

staring-image

Versatile Modification

The modification length is 2.8m and modification space is 19.3 ㎡; The maximum continuous torque of a single power take-off port is 339N • m and the parking power take-off is 70kw.

staring-image

Safe And Worry-free

I-Brake-Intelligent and efficient engine cylinder brake. Traction Control System (TCS) - Improving Vehicle Off Road trafficability. Hill Assist (HSAS) - Assist in starting a hill to prevent slipping.

car-image

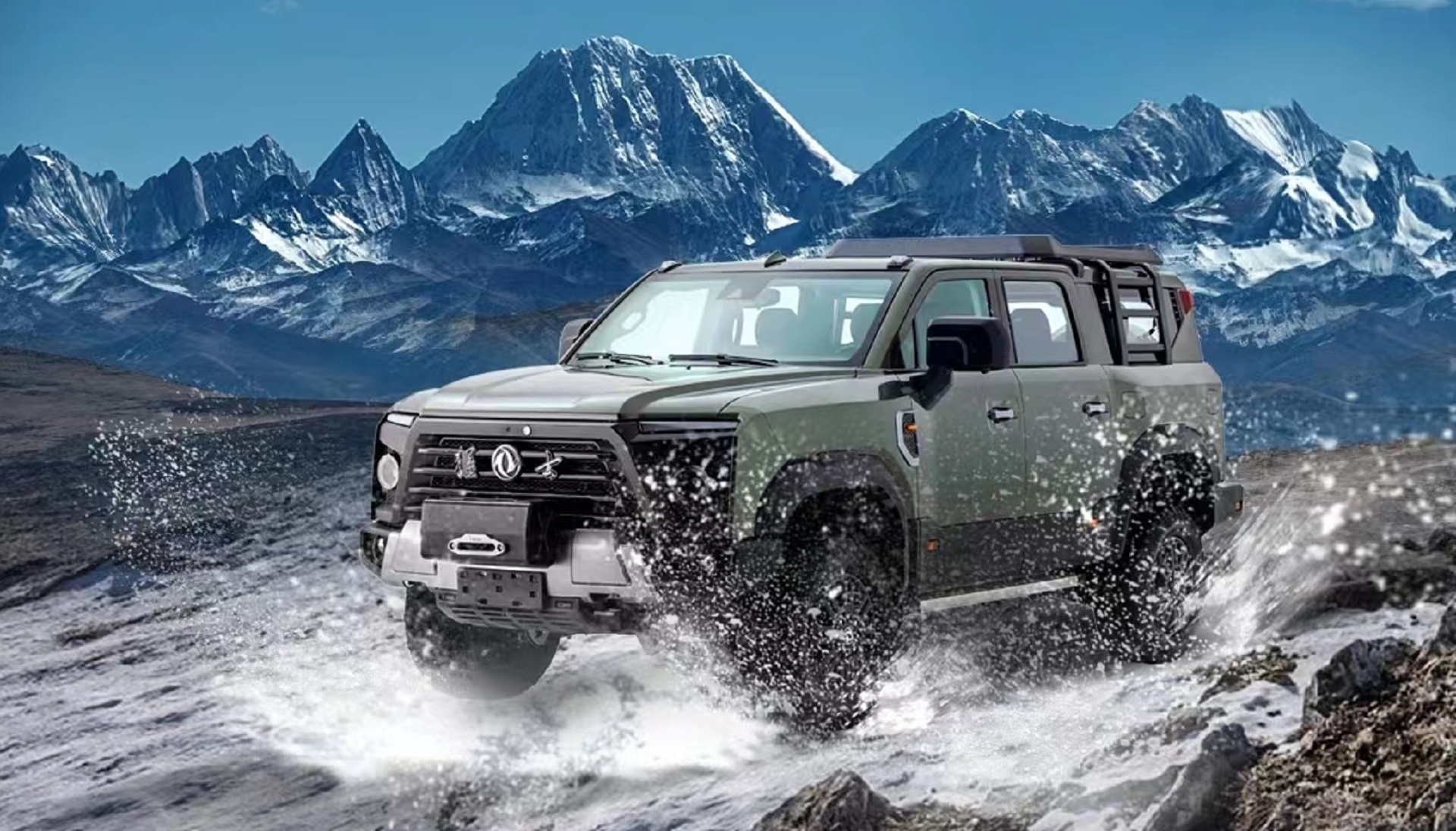

High Trafficability

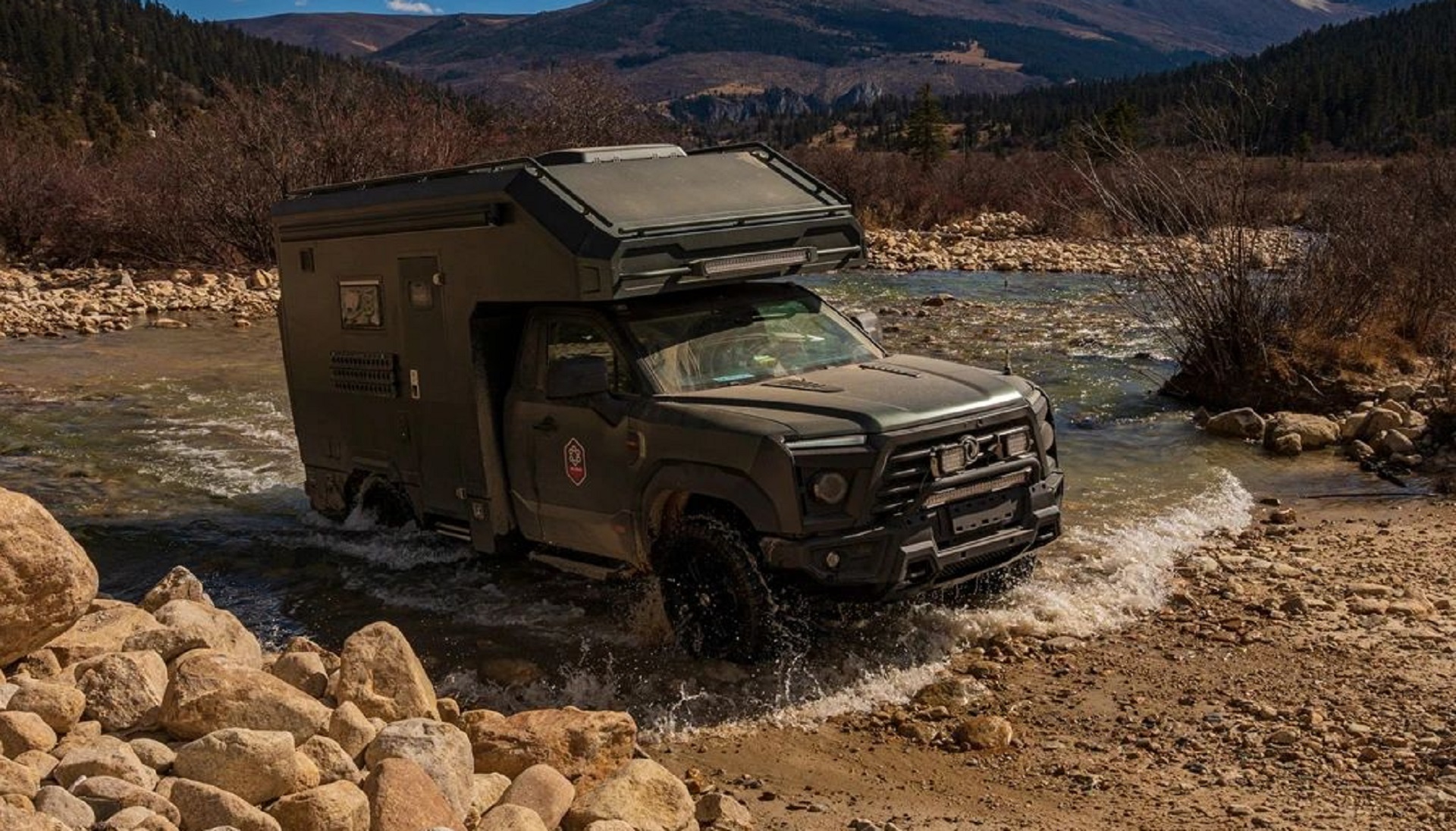

Min. ground clearance 340mm(full load)，Water-wading ability reaches 850mm，Approach angle 32°, departure angle 30°

car-image

High Reliability

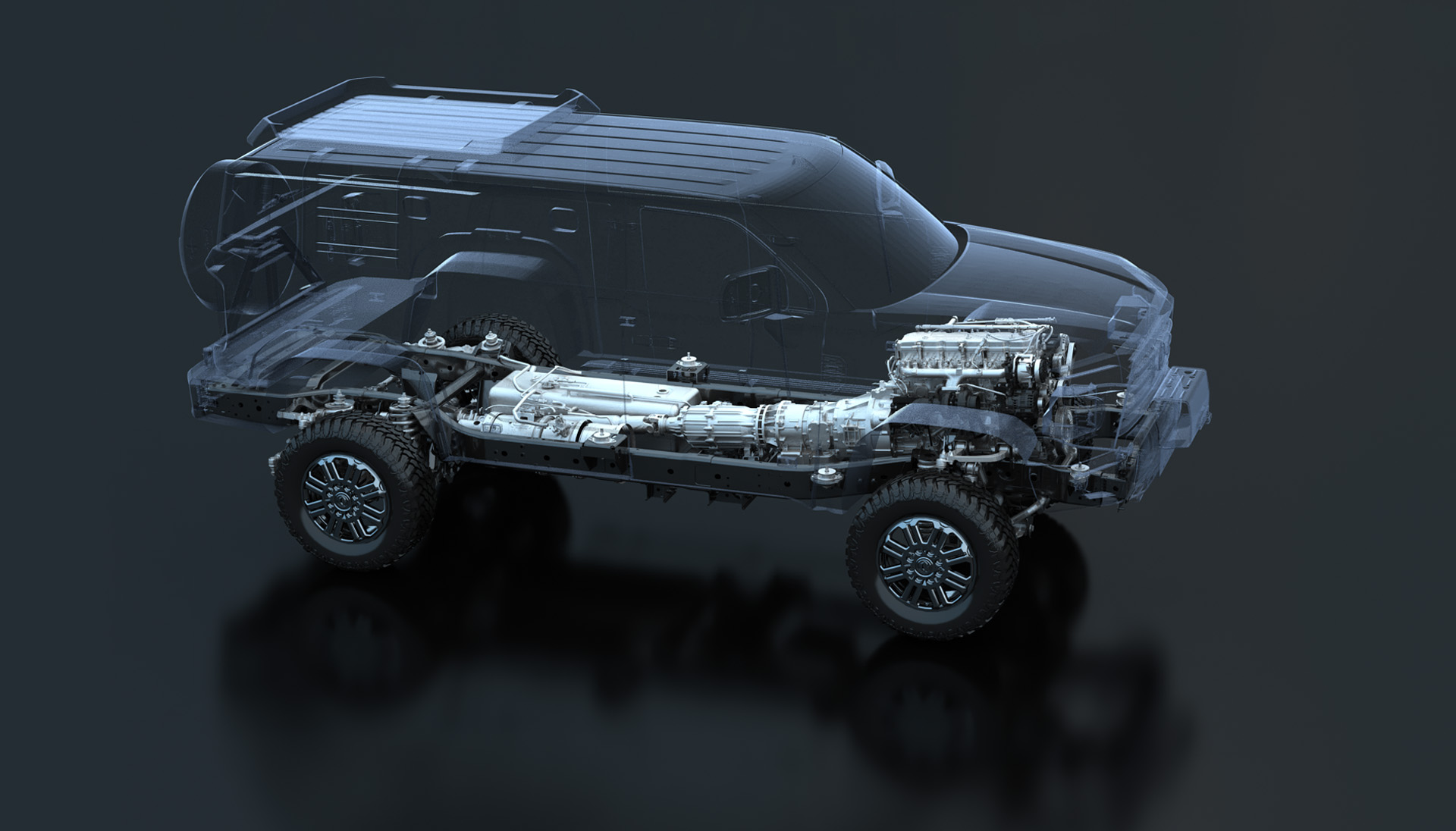

Perfectly pass through the test of 1.55 million km of high temperature, plateau, high cold and other extreme environments. The frame is adopted a 20000 ton ultra-high pressure hydraulic forming process longitudinal beam, which makes the performance of high strength, high precision, and strong resistance to bending and torsion.

car-image

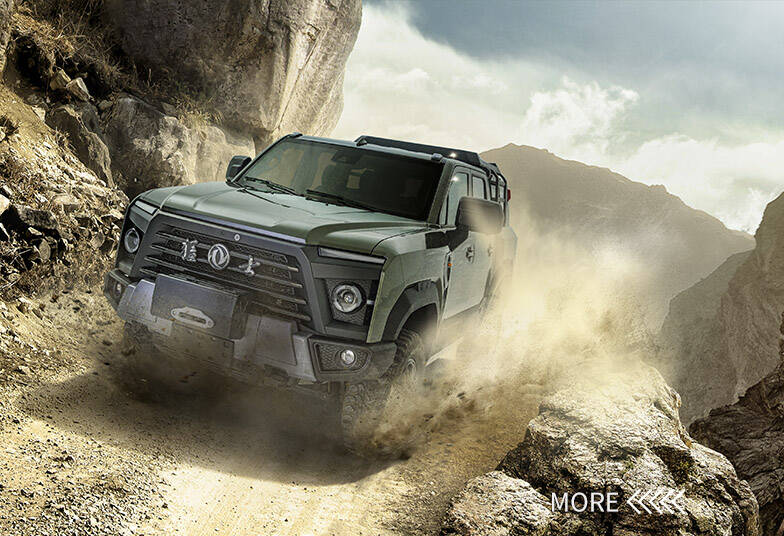

High Mobility

Cummins D6.7 engine, 1050N · m torque，Wheel torque 20000N.m，Full-time chain transfer case，Max. speed >140km/h，Max. Climbing Slope >60%

jeep

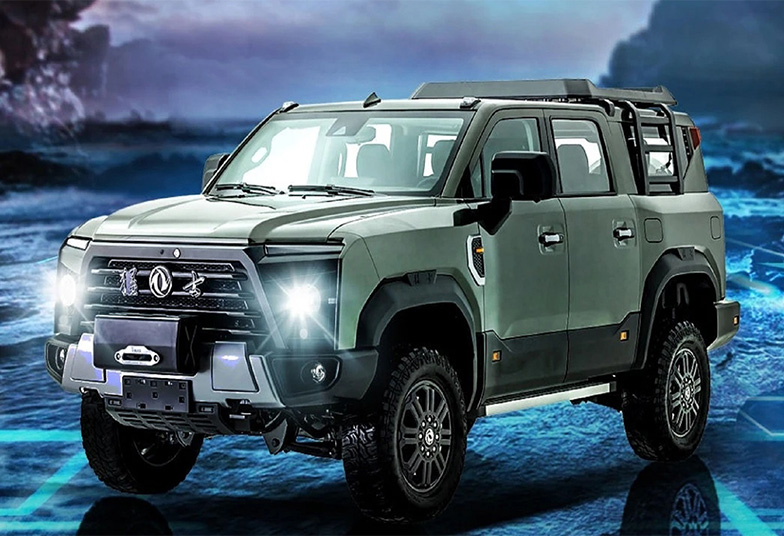

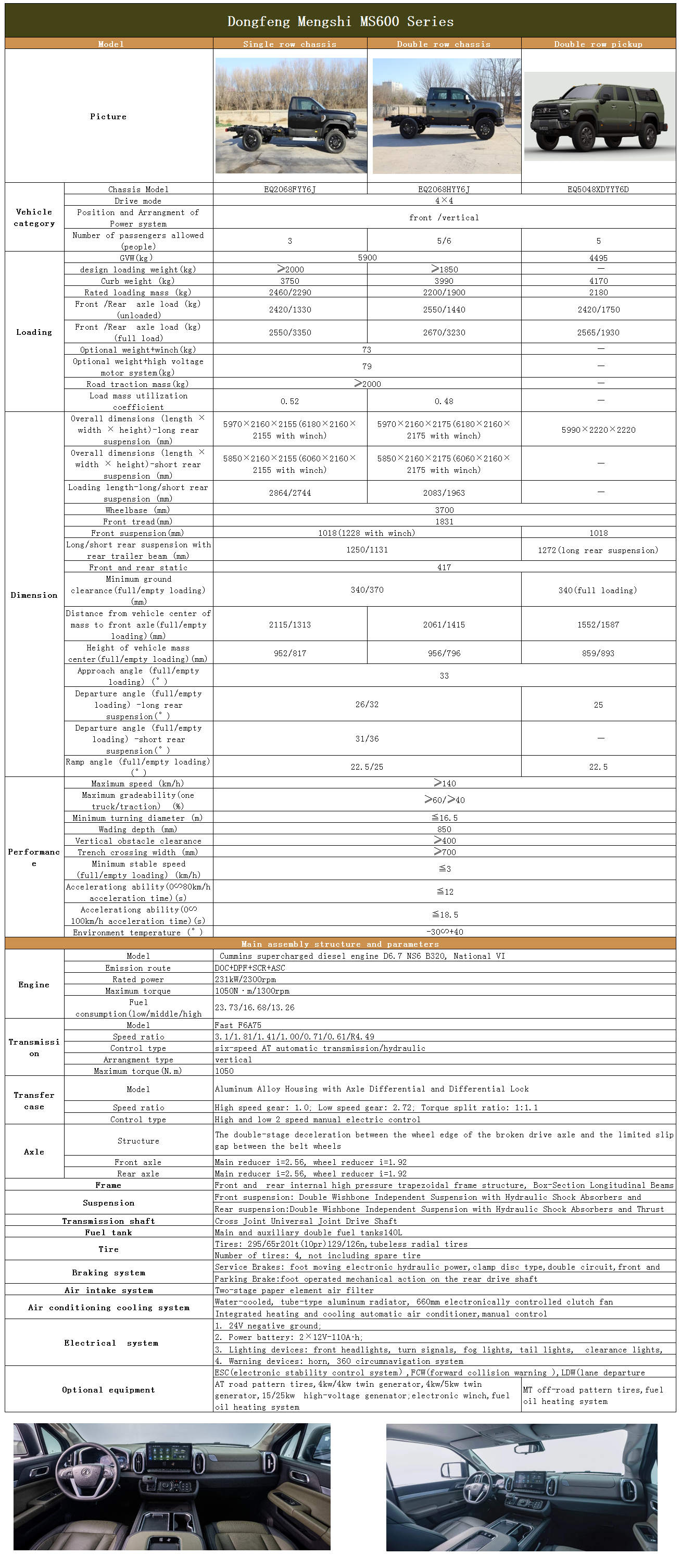

Dongfeng Mengshi MS600 Chassis

car-image

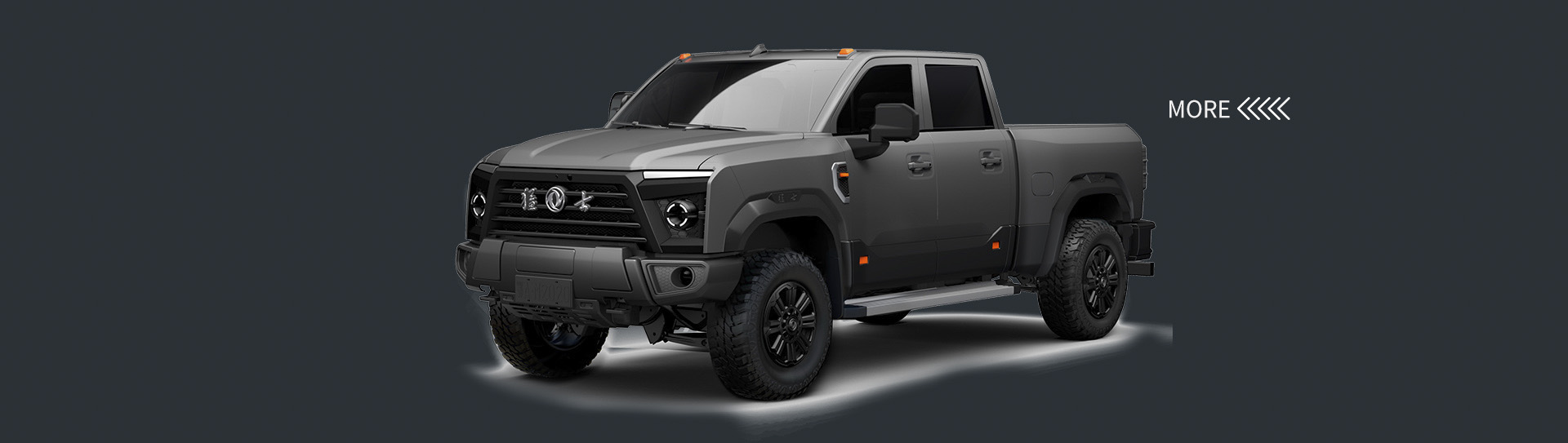

Pickup

Dongfeng Mengshi MS600
Seats: 5
Overall Dimension ((LxWxH)(mm): 5970 X 2220X2165;6181X2220X2165
Wheelbase (mm): 3700
F&R suspension(mm): 1018/1272;1229/1272
F&R Tread(mm): 1831/1831
car-image

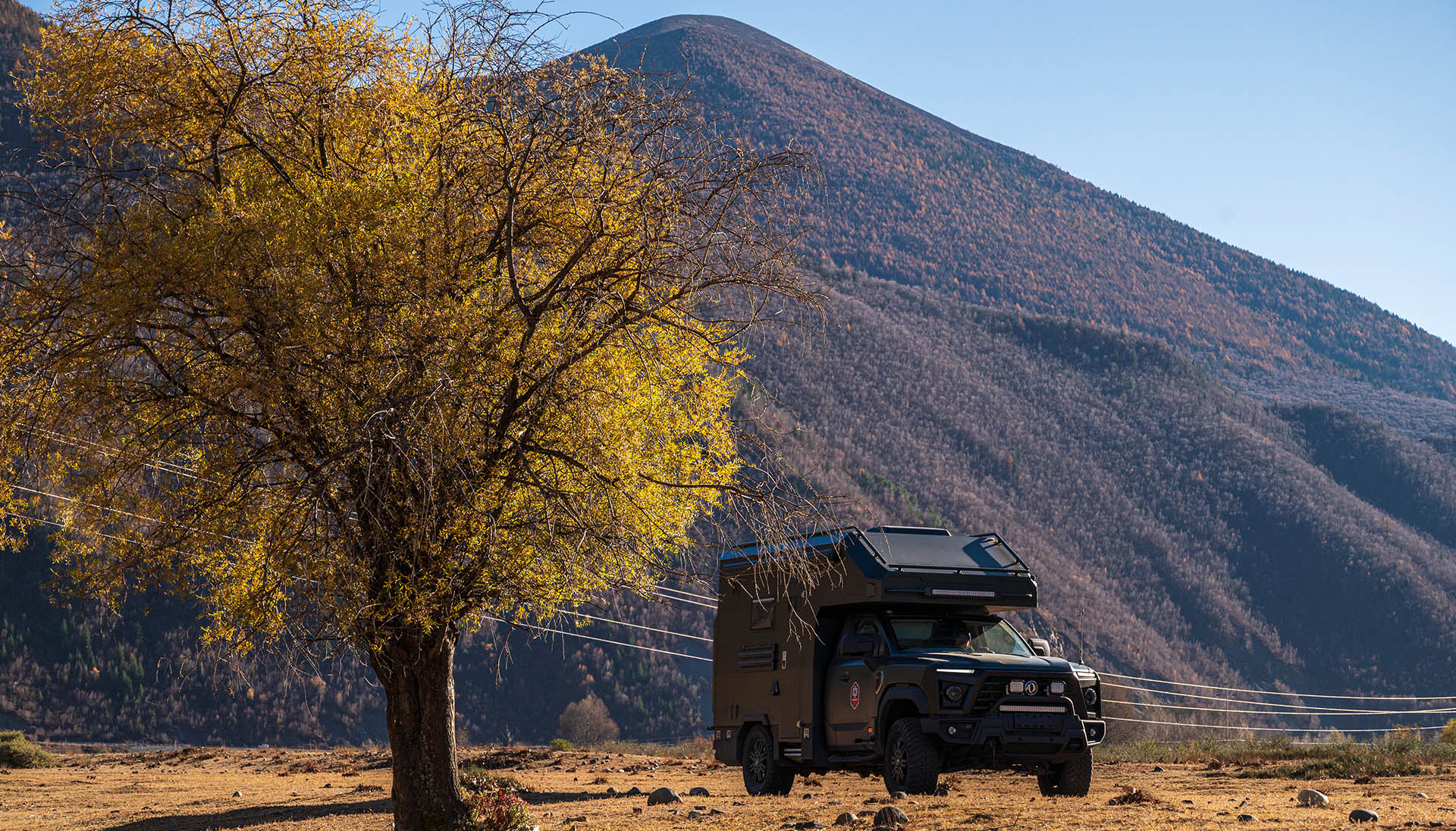

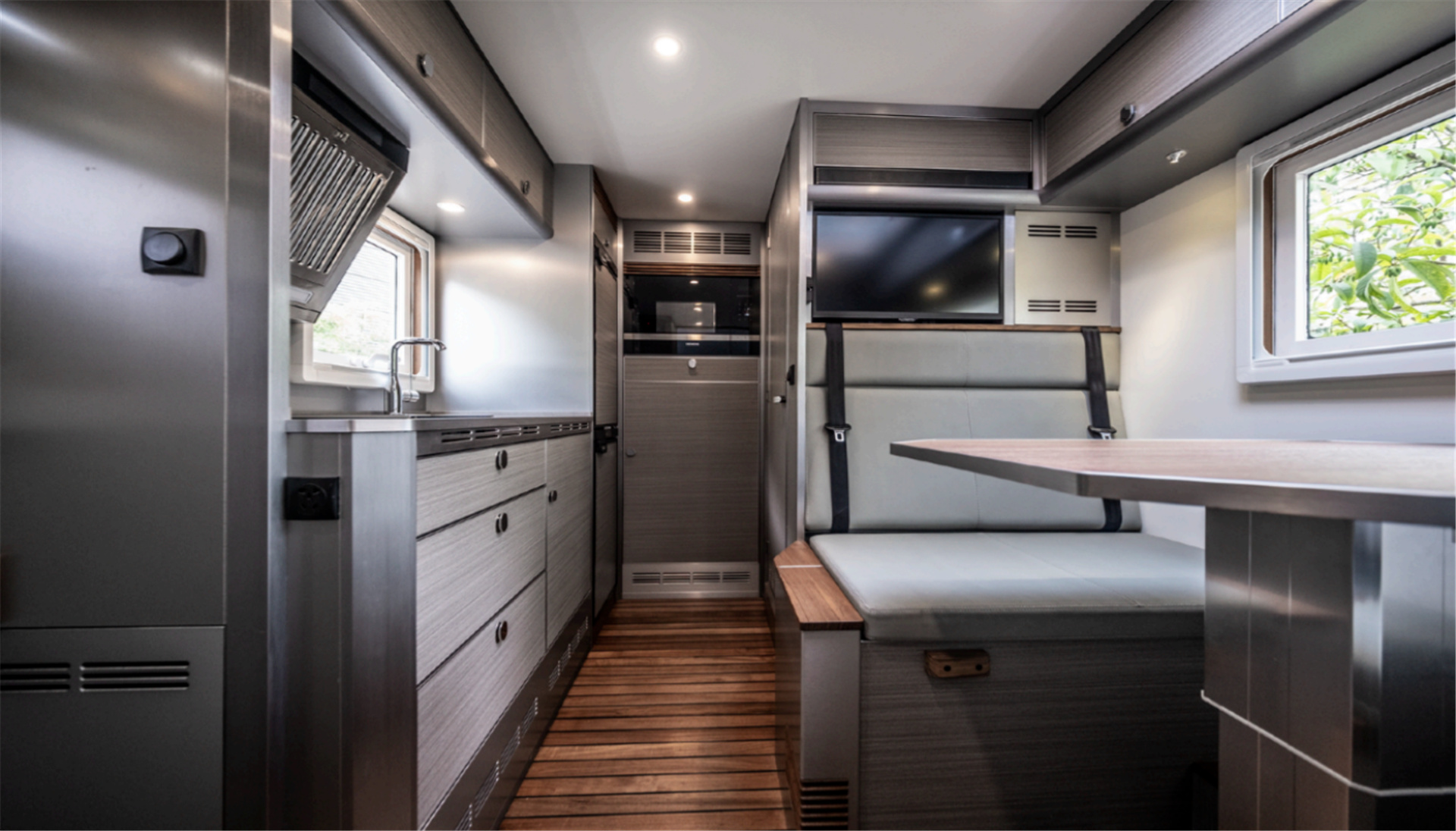

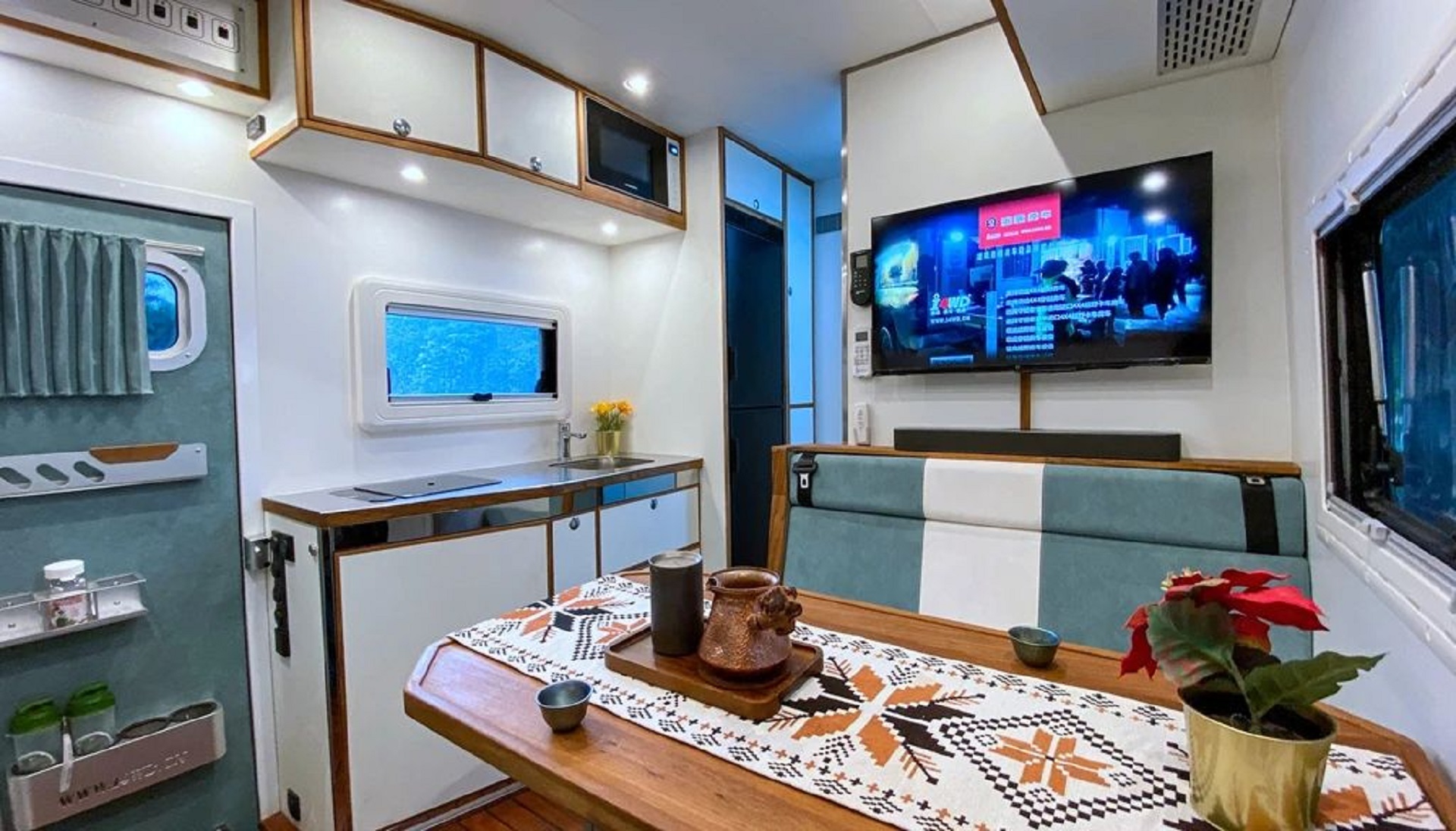

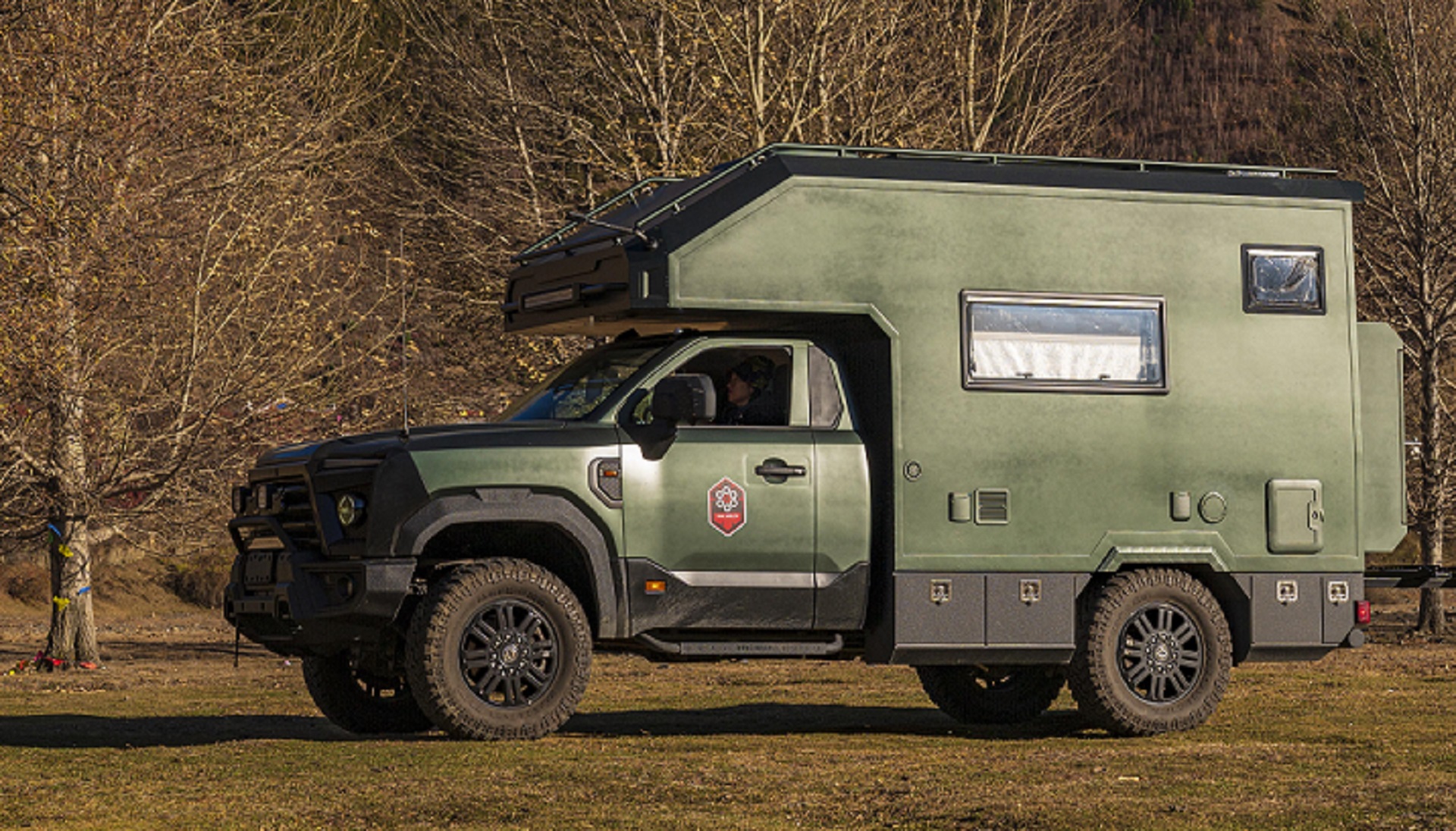

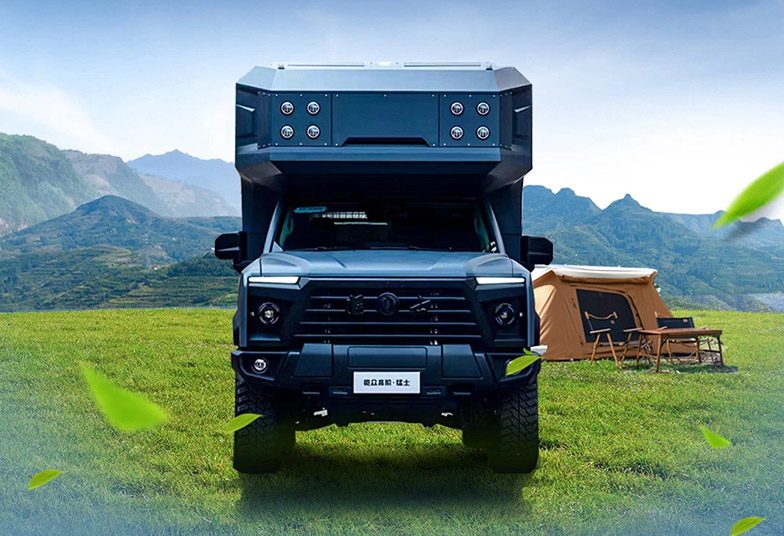

Antarctic Recreational Station Wagon

Economic and environmental protection: higher compression ratio, higher thermal efficiency, better economy and emission performance. Multiple comfortable system: dual heating, dual hot water, dual kitchens, dual power generation. Comprehensive off-road experience: reliable off-road performance, trafficability, load capacity and stability. Free travel: Leave the camp and enjoy the off-road RV tour.
GVW: 5900
curb weight: 5536,5400
Standard configuration: Bedding equipment, sanitary facilities, electrical facilities, and other specialized devices for living and camping purposes
Vehicle Model: WZH5060XLJAA
Time To market: February 2023
Vehicle Brand: Lumei
Rated Passengers: 3,5
Optional configuration: Optional different styles of wheels, grille, body decals, and interior layout and colors; Optional ETC onboard device
Body Manufacturer: Wuhu Zhiheng Automobile Co., Ltd
Body Materials: Aluminum/flame-retardant knitted fabric or leather material
Body Structure: A dedicated compartment is made from on the chassis. The compartment frame adopts an aluminum frame structure, and the inner side is made of flame-retardant knitted fabric or leather material according to user needs.
car-image

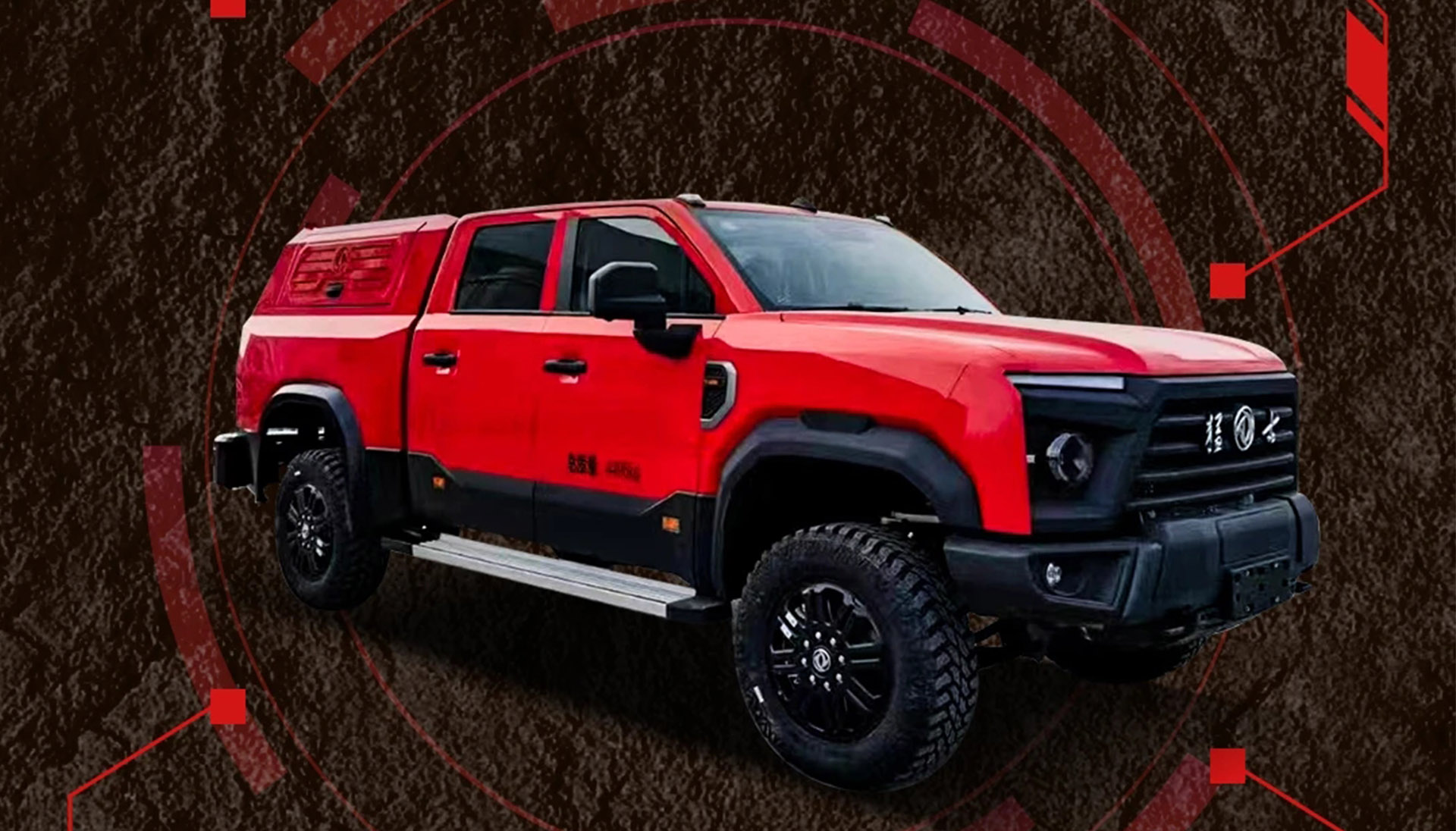

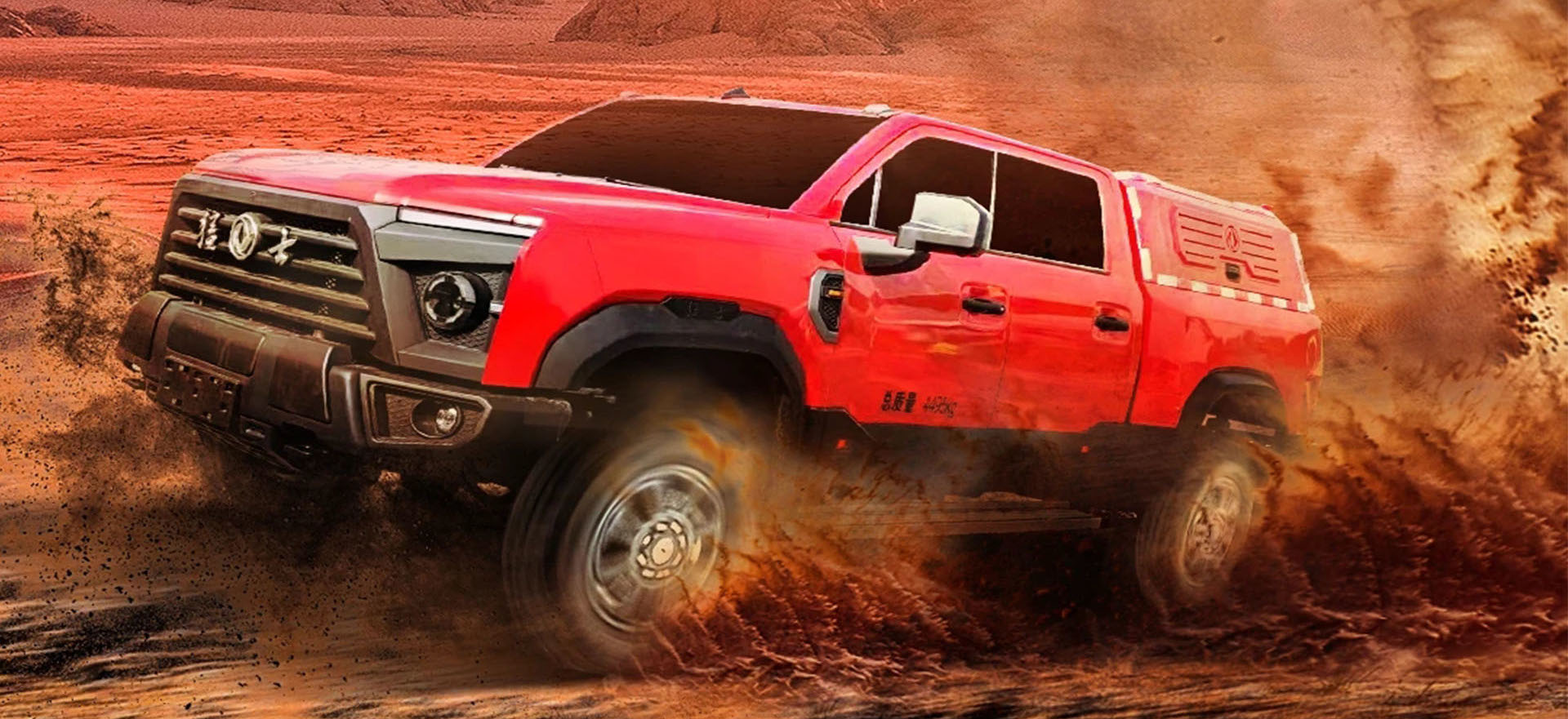

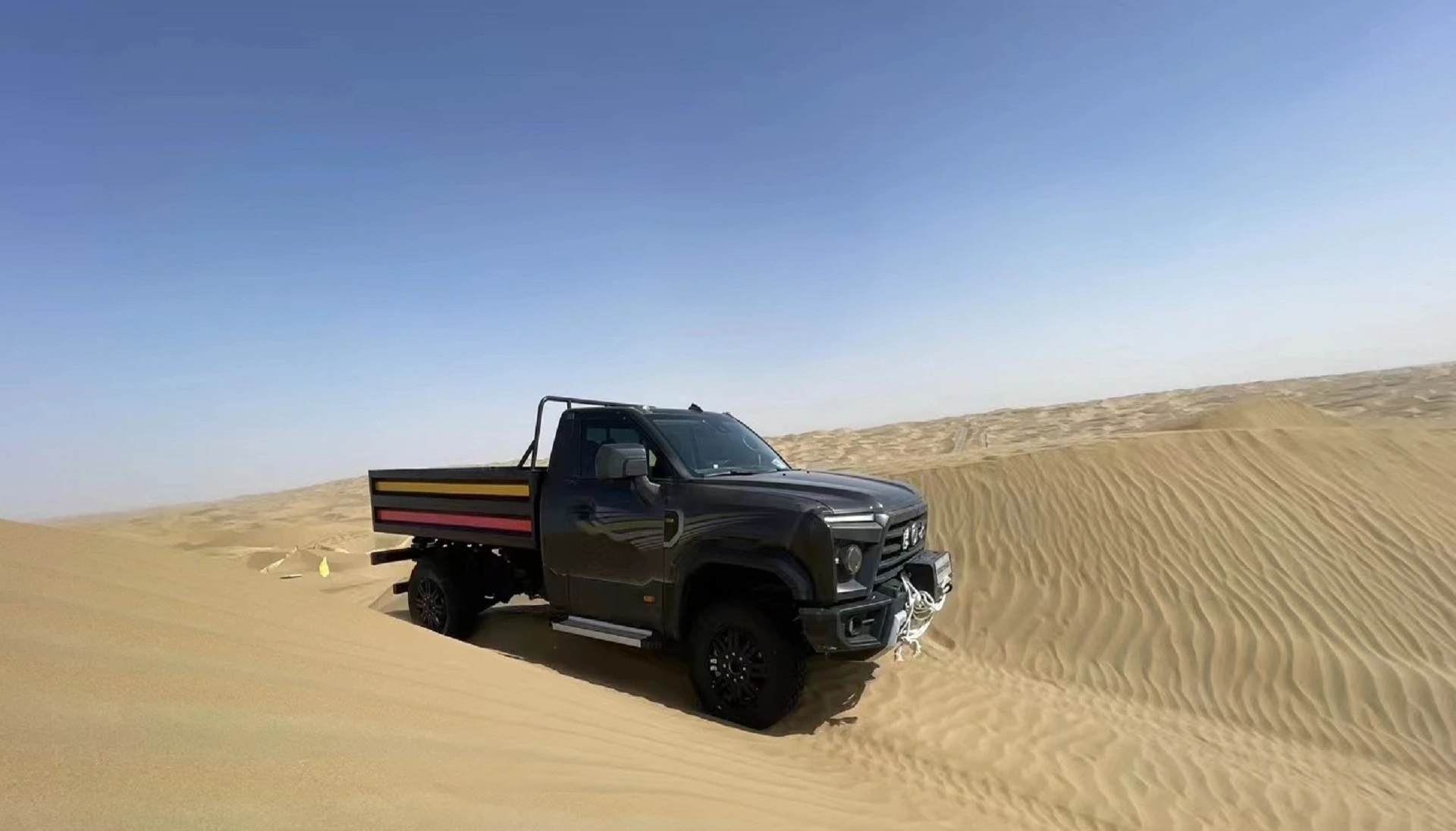

Blue License Special Pickup Vehicle

It has good off-road performance and various complex road driving capabilities, it is suitable for all-weather outdoor operations in harsh environments such as high and low temperatures and dusty conditions. This vehicle is a large pickup truck with a total mass of 6 tons, and the cargo box has two states: closed cargo box and open cargo box.
Vehicle model: Double row power supply vehicle
Chassis Model: EQ5048XDYYY6D
Driving Type: full-time four-wheel drive 4X4
Number of seats: 5
GVW: 4495
Vehicle size: 5990X2220X2220
Power device location/layout: Front/Vertical
Number of seats: 5
Vehicle wheelbase (mm): 3700
Front and rear wheelbase: 1831
Front suspension (mm): 1018
Rear suspension (mm) (long rear suspension only): 1272
Static loaded radius of front and rear wheels (mm): 417
Min. ground clearance (full load mm): 340
Distance from the center of mass of the entire vehicle to the front axle (full loaded/unloaded mm): 1552/1587
Height of vehicle center of mass (full loaded/ unloaded mm): 859/893
Approach angle (full loaded °): 33
Departure angle (full load °) long rear suspension: 25
Longitudinal passing angle (full load °): 22.5
Max. speed (km/h): ≥140
Max. climbing slope (single/traction%): ≥60/≥40
Min. turning diameter: ≤17
Wading Depth: 850
Vertical obstacle crossing height: ≥400
Trench width: ≥700
First gear minimum stable speed (unloaded/fully loaded km/h): ≤3
Acceleration performance (0-80km/h acceleration time s): ≤12
Acceleration performance (0-100km/h acceleration time s): ≤18
Operating ambient temperature (° C): -30~+41
car-image

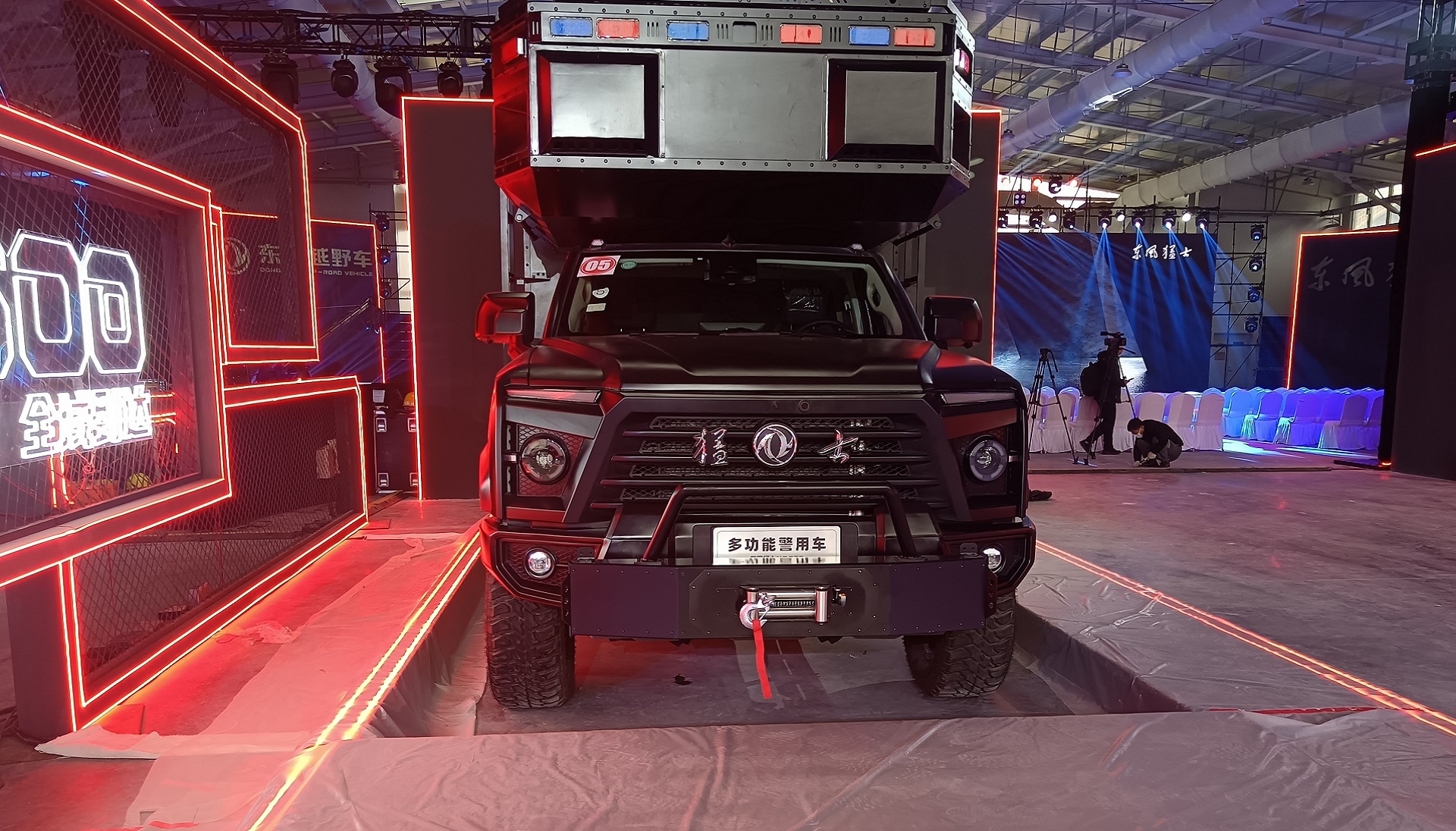

Multi-functional Police Vehicle

It can enhance the scientific, efficient and timely command work on the scene during the handling of emergencies, large-scale on-site activities, high-risk events and disaster relief. Drone reconnaissance system: full-band frequency detection, frequency countermeasures and drone countermeasures. Digital office system: audio and video transmission, mobile network, conference command, ad hoc network.
GVW (kg): 5900
Curb weight (kg): 5300
Body Structure: The body consists of a bottom plate, top plate, left and right side panels, front and rear wall panels, door and window components, etc. and is connected and formed using specialized aluminum alloy profiles.
Vehicle Model: BJK5060XZH-6
Time To Market: December 2022
Vehicle Brand: Beijinganlong
Rated Passengers: (Including driver)3-8
Meeting Space: Independent meeting space, seats can rotate, conference table can be folded and stored, windows can be opened, independent parking air conditioning and heating system
Body size (mm): 4150X2300X1850
Unmanned Cabin Dimensions (mm): 1500X2300X850
Body Manufacturer: Beijing Anlong Special Automobile Co., Ltd
car-image

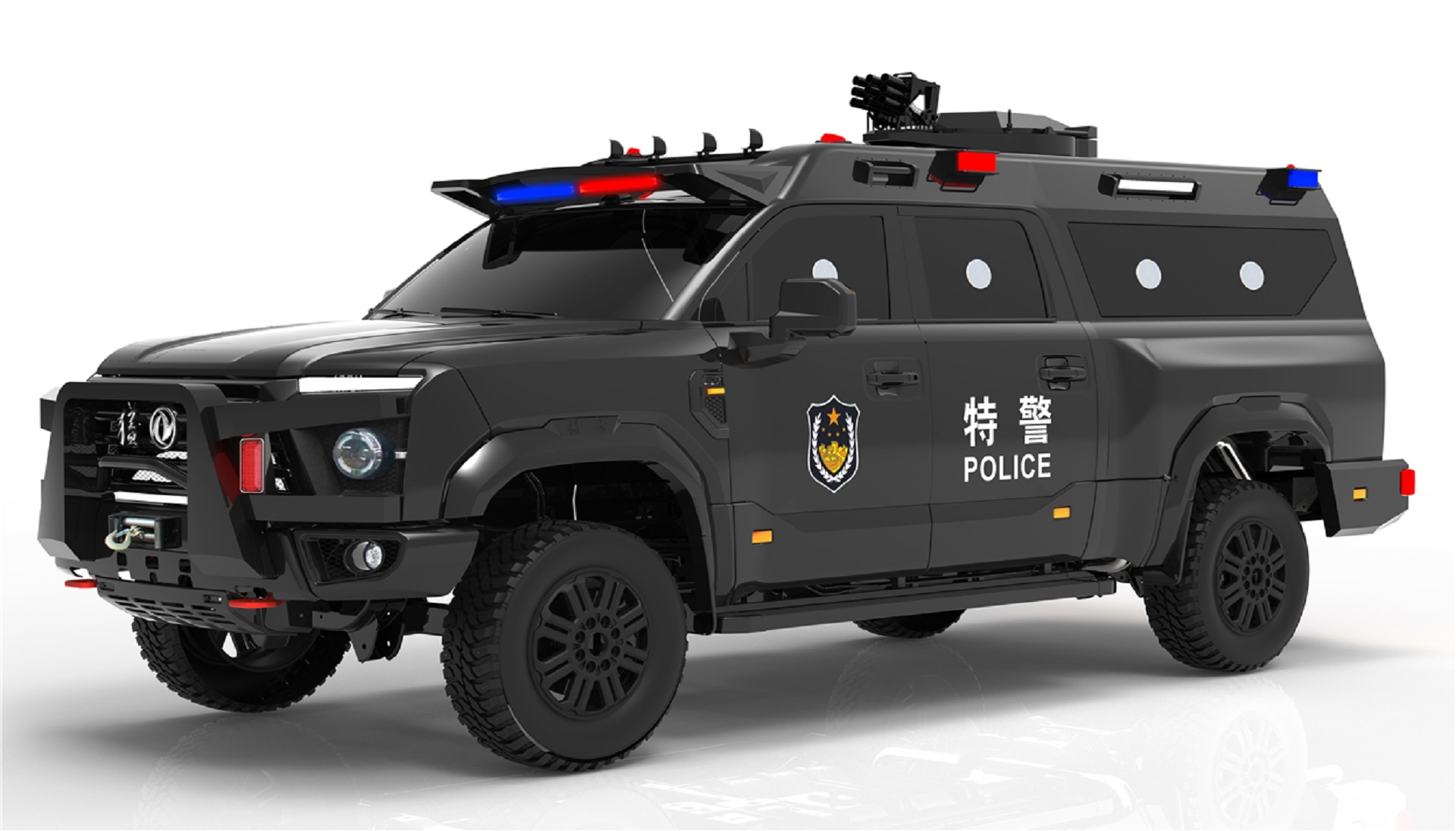

Riot Proof Pioneer Vehicle

It is modified from the MS600 double-row chassis, and can carry 9 people (including the driver). It is equipped with a warning system, a self-rescue system, an equipment carrying system, a non-lethal dispersal system, a monitoring and image transmission system, a communication system and a power supply and distribution system.

Bulletproof Modification：

Bulletproof body: The body is modified with PE bulletproof material to prevent the firing of the Type 79 submachine gun.

Bulletproof windows: Bulletproof windows accord with the ministry of public security B level.

Bulletproof key components: key components such as engine, fuel tank and batterie are retrofitted with bulletproof protection.

Bulletproof tire: There is a continuous driving device inside the tire , it is able to continue driving for more than 80 kilometers at a speed of 60km/h even after a tire blowout.

GVW: 5900
Rated Passengers: 9(including driver)
Bulletproof modification: B-level bulletproof cabin, windows and fuel tank modification
Vehicle Brand: Gelunte
Lighting: Side lighting, front searchlight, indoor lighting
Power supply and distribution system: Control wiring harness, control switch, battery, dual battery isolator, inverter, 220V socket
Monitoring System: T-shaped pan tilt integrated camera, indoor hemisphere camera monitoring display, 3D keyboard, hard disk recorder, 4G image transmission.
Warning System: Red and blue long strip alarm lights, small flashing lights and alarms.
Communications System: 350 Mbps onboard station
Optional Configuration: Electric winch, nine tube launcher, lifting platform, bulletproof tire, communication blind patch module, intelligent management module.
car-image

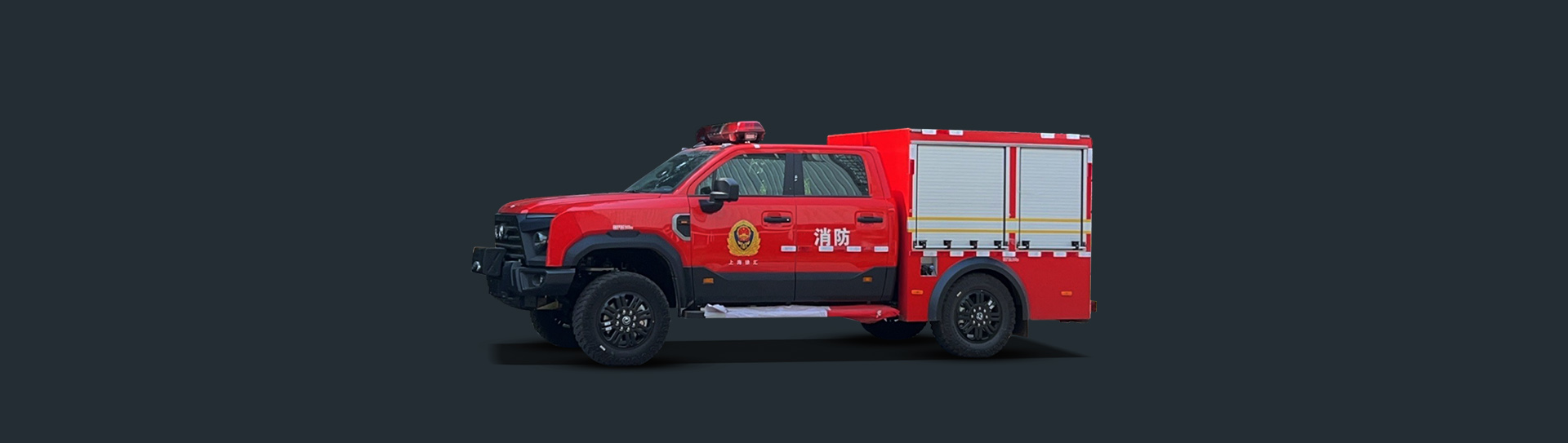

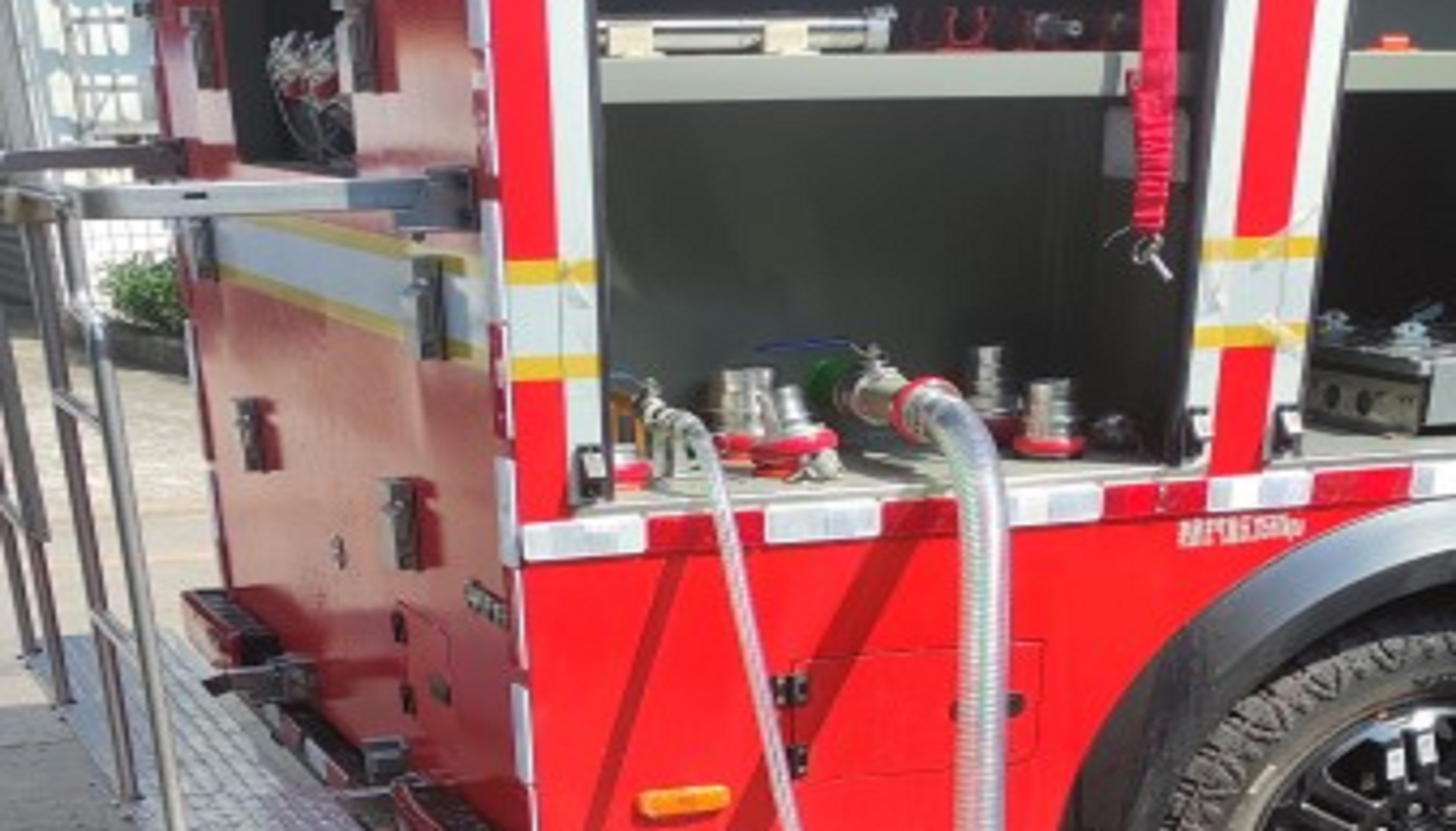

Water Mist Fire Truck

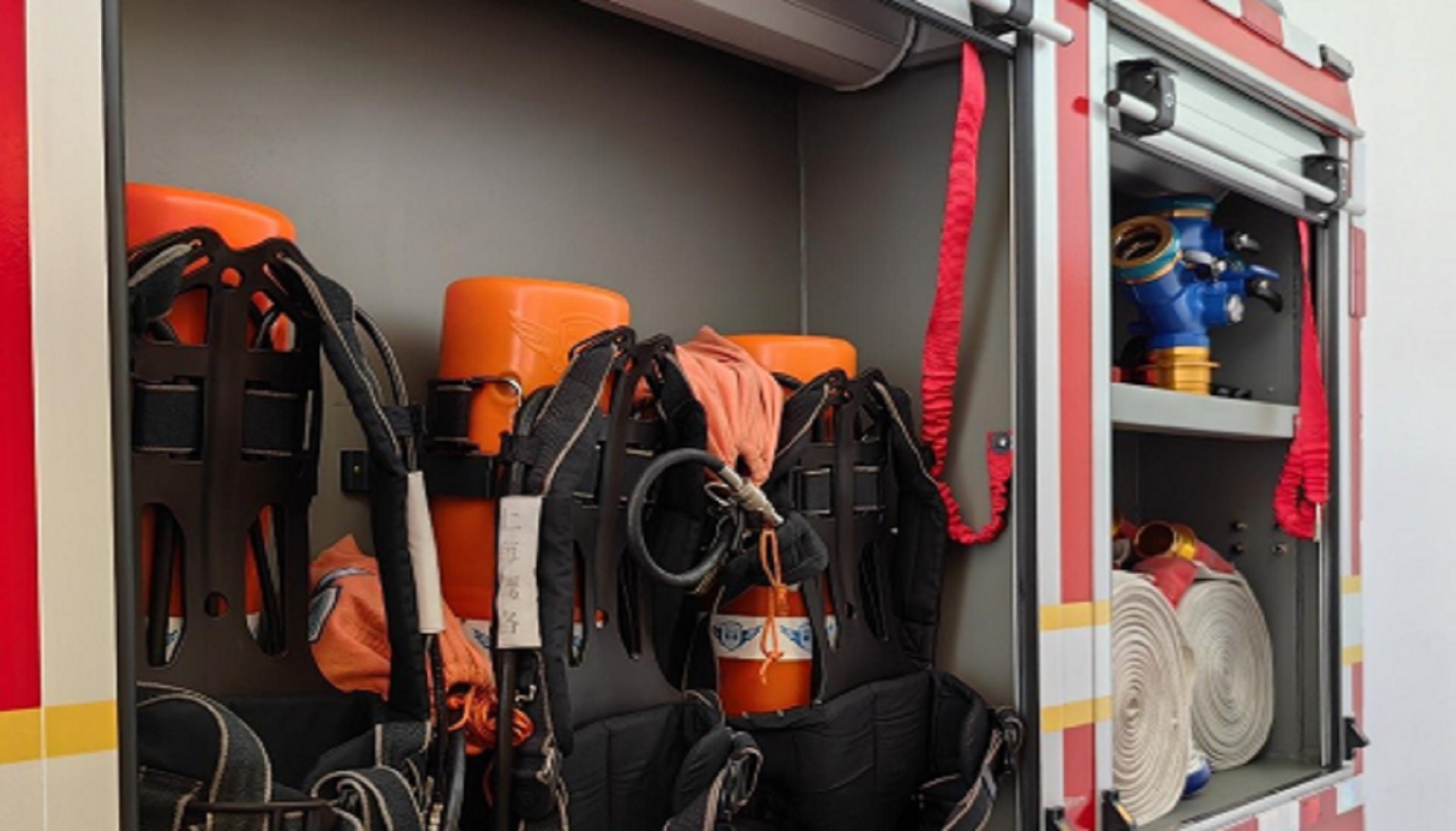

It is modified from MS600 double-row cabin chassis. The length of the cabin is about 6.2m, the height is 2.4m, the vehicle is compact, flexible and has good trafficability. Added the van box including fire pump set, fire hose, rescue equipment, and a rear folding platform. It has multiple functions such as equipment placement, hose laying, fire foam spraying, etc. It can shuttle through urban alleys to quickly connect the fire scene and large fire engines, which has good effects on controlling early fires.
GVW(kg): 5700
Curb weight (kg): 4875
Body Structure: PP material loading carriage X1; QB260D-TB hand lift pump X1; DN90 water hose X10; Rear tail folding platform X1; Other on-board equipment
Vehicle Model: DMT5060GXFPW1.5
Time to market: Expected November 2023
Rated Passengers: 5
Body Manufacturer: Chongqing Dima Industry Co., Ltd
Body Materials: PP
Indicator Name: Fire pump
Rated Flow Rate (L/min): 150 /90
Rated Working Height(m): ≮70/80
Rated geometric suction height (m): 1.5
Max. Geometric Suction Height (m): 7
Max. Working Pressure At Pump Inlet (MPa): 0.6
Max. Working Pressure At Pump Outlet (MPa): 1.0
Number And Specified Diameter Of Pressure Pipes (mm): 1X40
car-image

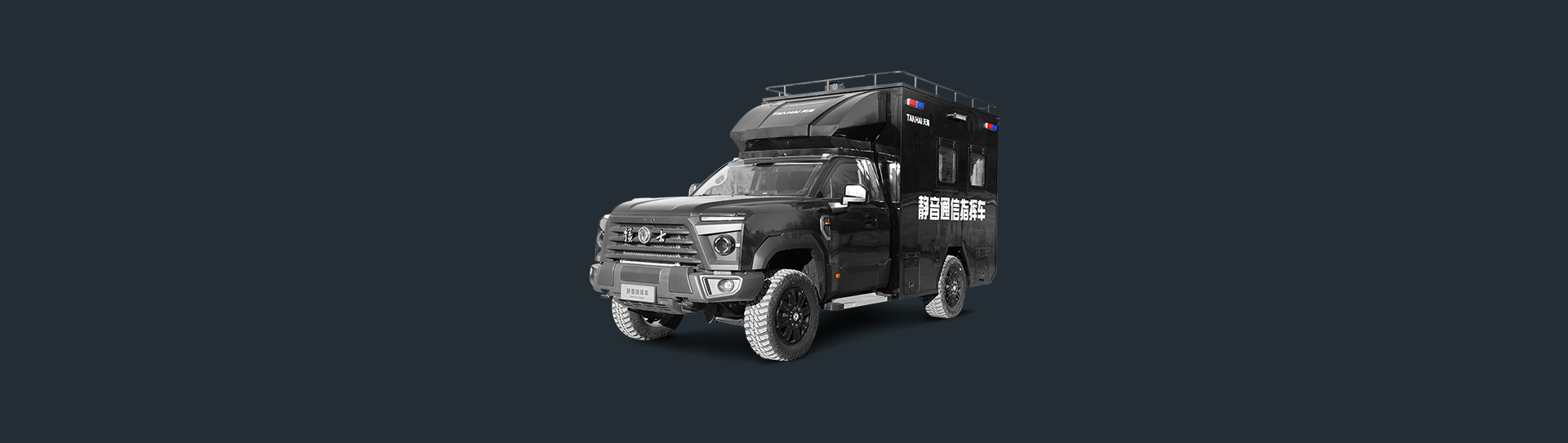

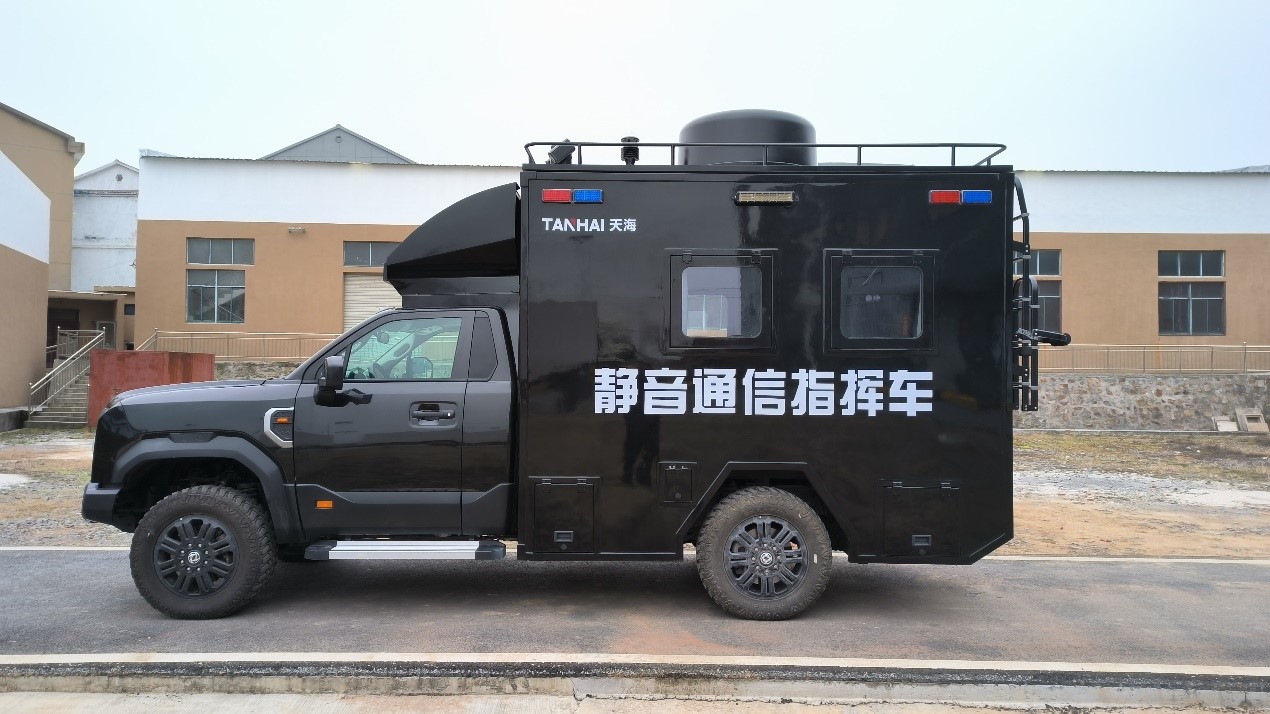

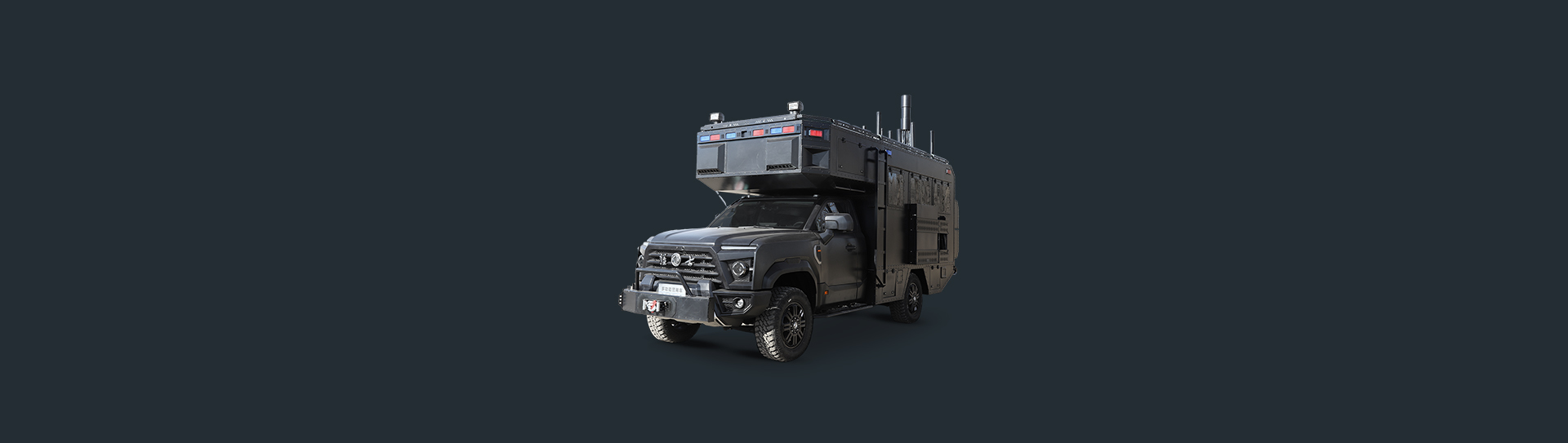

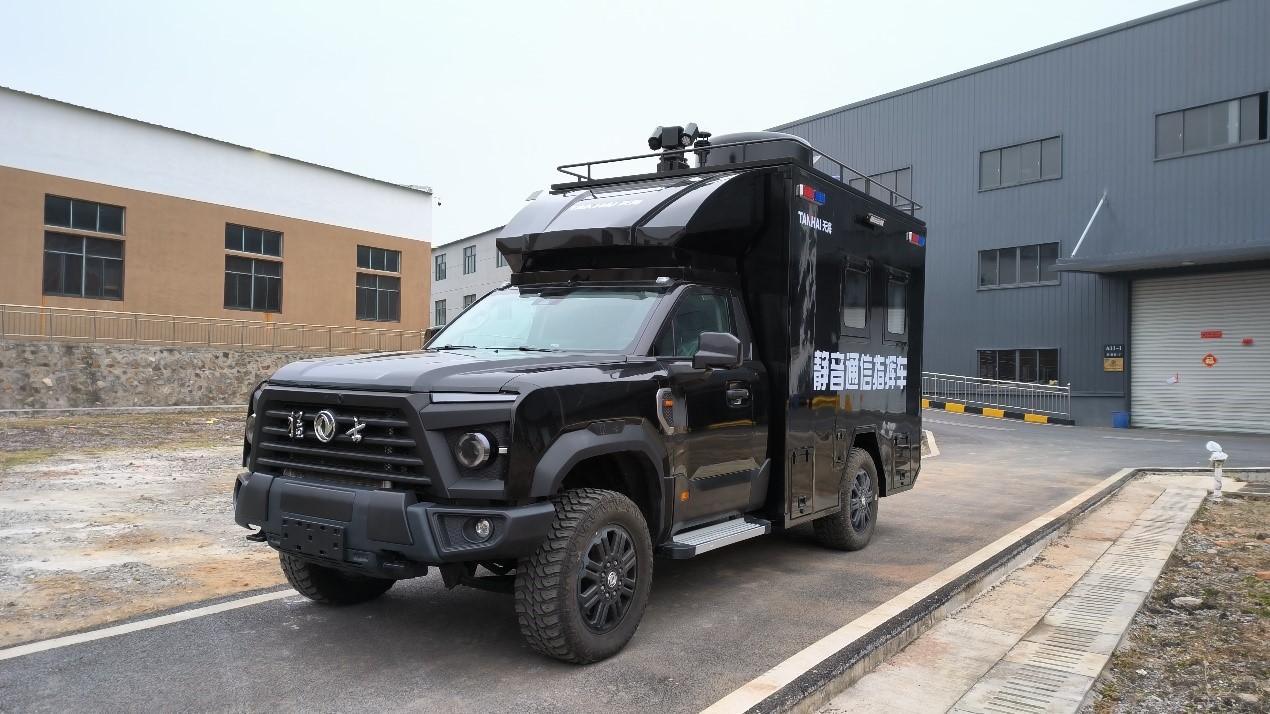

Silent Command Vehicle

The design of lightweight and noise reducing sound insulation can provide excellent space and environment for personnel to command and dispatch in the field. It can provide decision support as well as the command and dispatch for emergency response. It can complete tasks in complex situations such as urban, off-road, and mountainous areas.
GVW(kg): 5800
Curb Weight (kg): 5605
(Standard Configuration): Alarm system, audio and video system, comprehensive power supply guarantee system, centralized control system, video conference system, public network communication system, remote dispatch management system
car-image

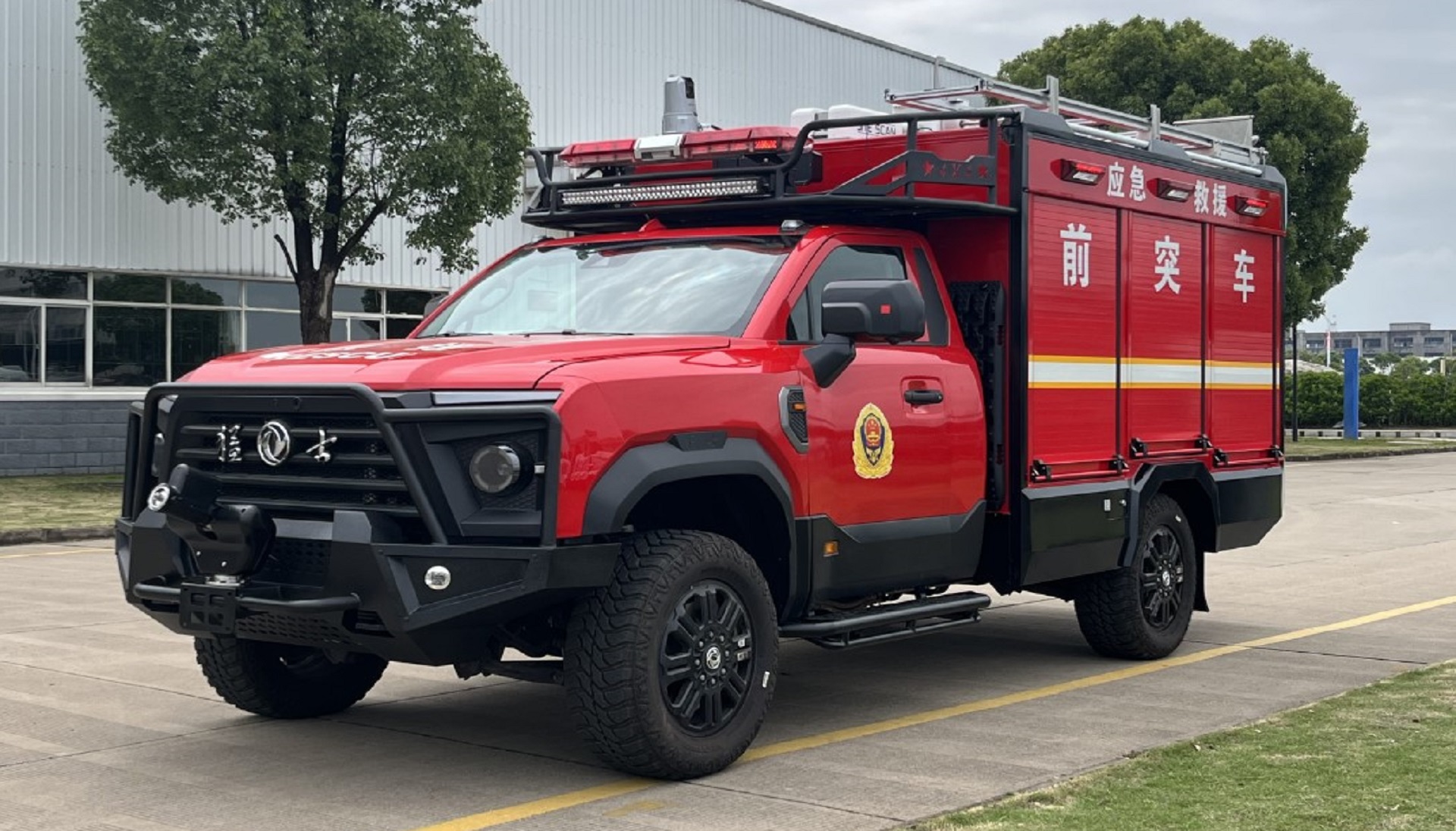

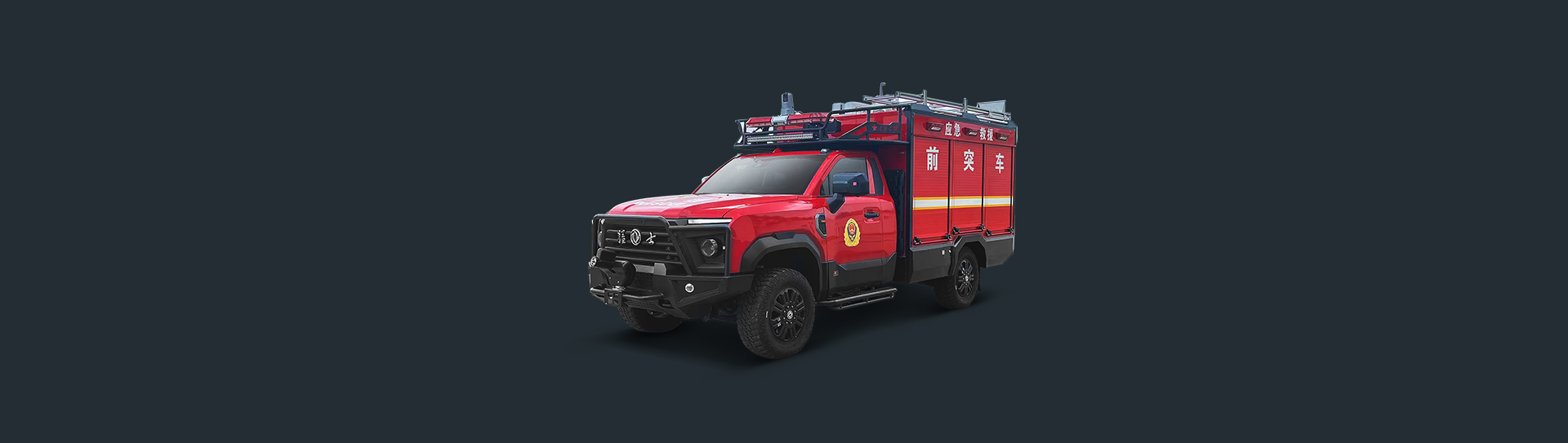

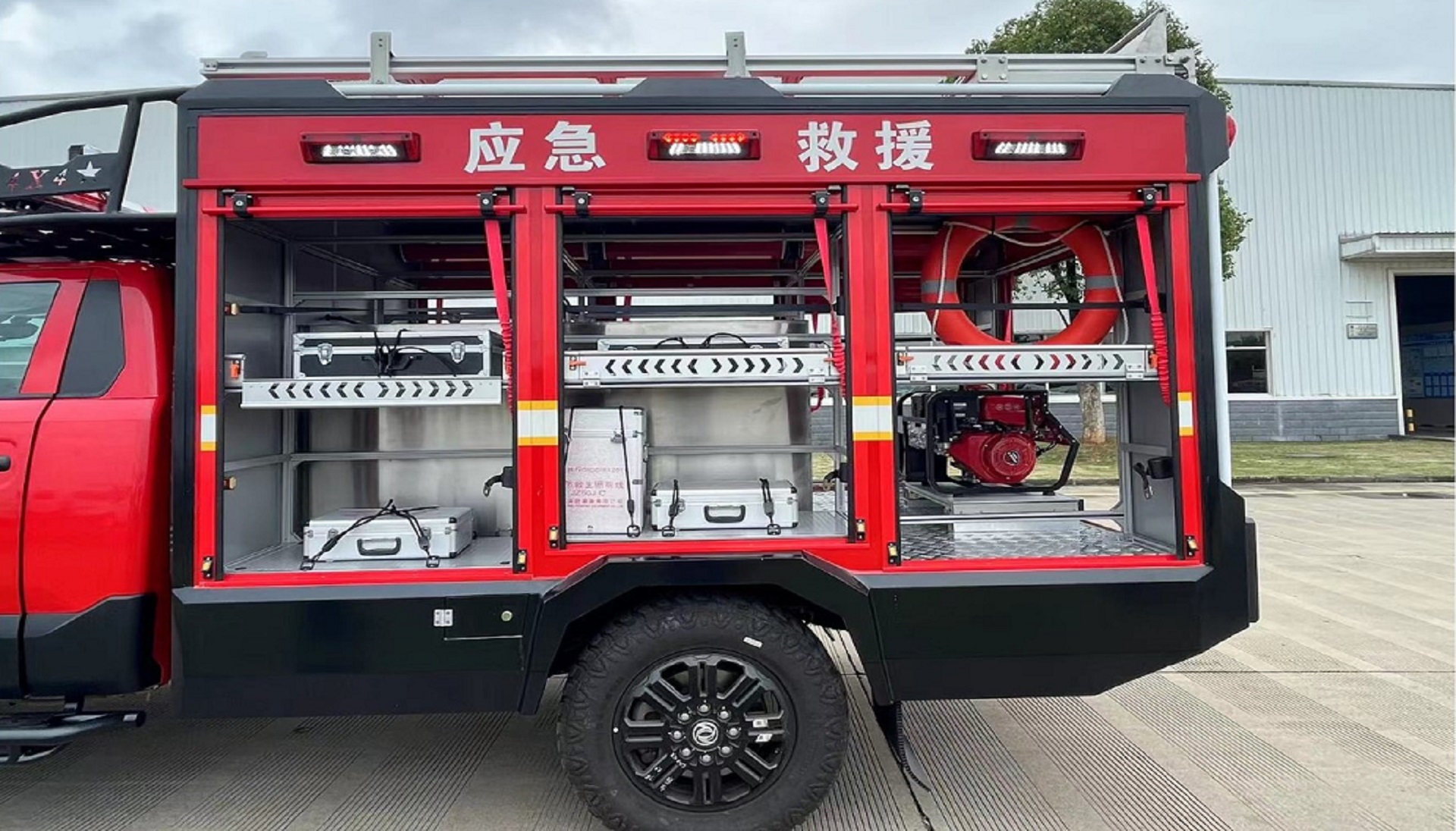

Emergency Pioneer Vehicle

Emergency Pioneer Vehicle can blaze a trail, transport rescue equipment and provide on-site information support at the disaster site. Applicable to forest fires, fire rescue, earthquake rescue, geological disaster rescue and other tasks. Applicable to fire, emergency, mining, power and other departments. It can enter complex areas and support large-scale rescue work.
External Size(mm): 6550X 2200X2600，2950
Wheelbase (mm): 3700
GVM (Kg): 5900
Standard configuration: Warning system, protection system, emergency communication system, self-protection sprinkler system, lighting system, intelligent fine water mist system, rescue module and other systems.
