Brave Version Special Vehicle

Optional new style front face： New design style：Redeveloping parts such as the hood, grille and front bumper to match the new design. Readjust the position of the turn signal to avoid the visual feeling of the headlights being "small". Side Styling Optimization： Upgraded rear wheel arches design. Back Styling Optimization： Upgraded back design. Other Features： Optional widened seats for higher comfort. Lowering the entry threshold for vehicles makes boarding more convenient.

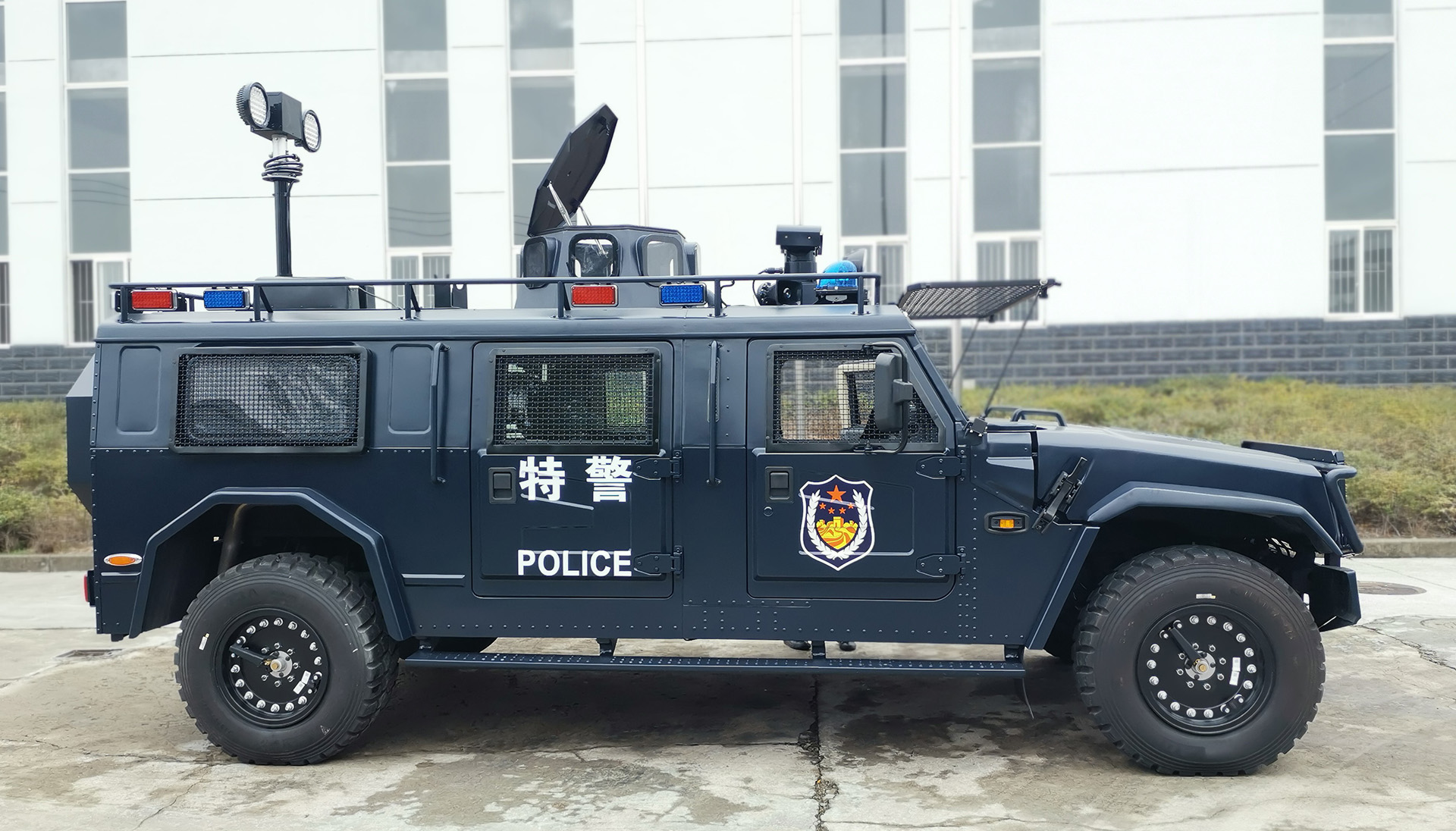

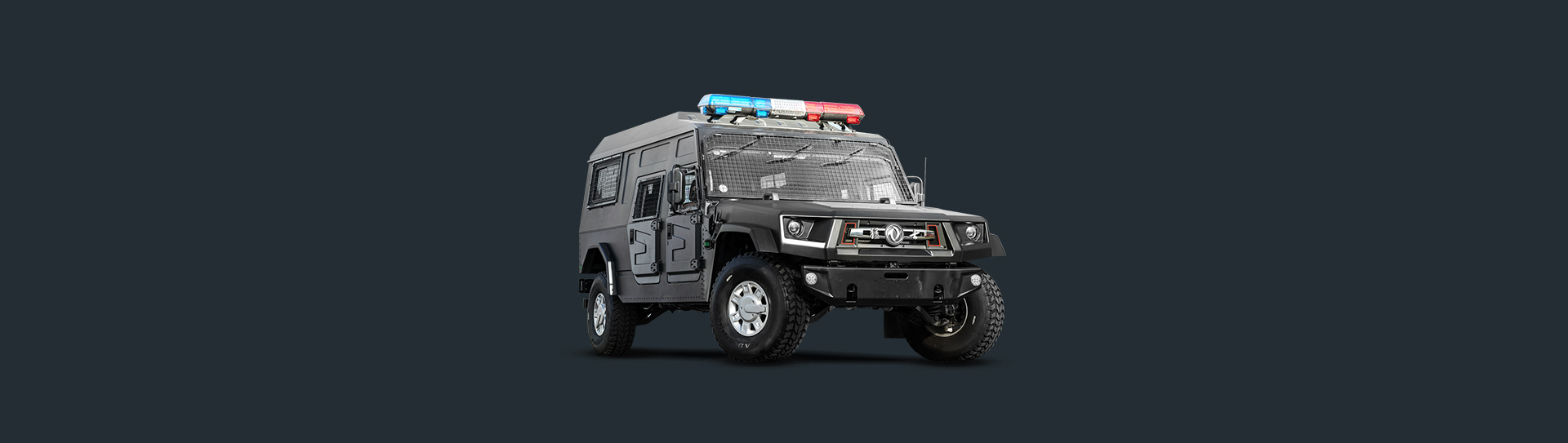

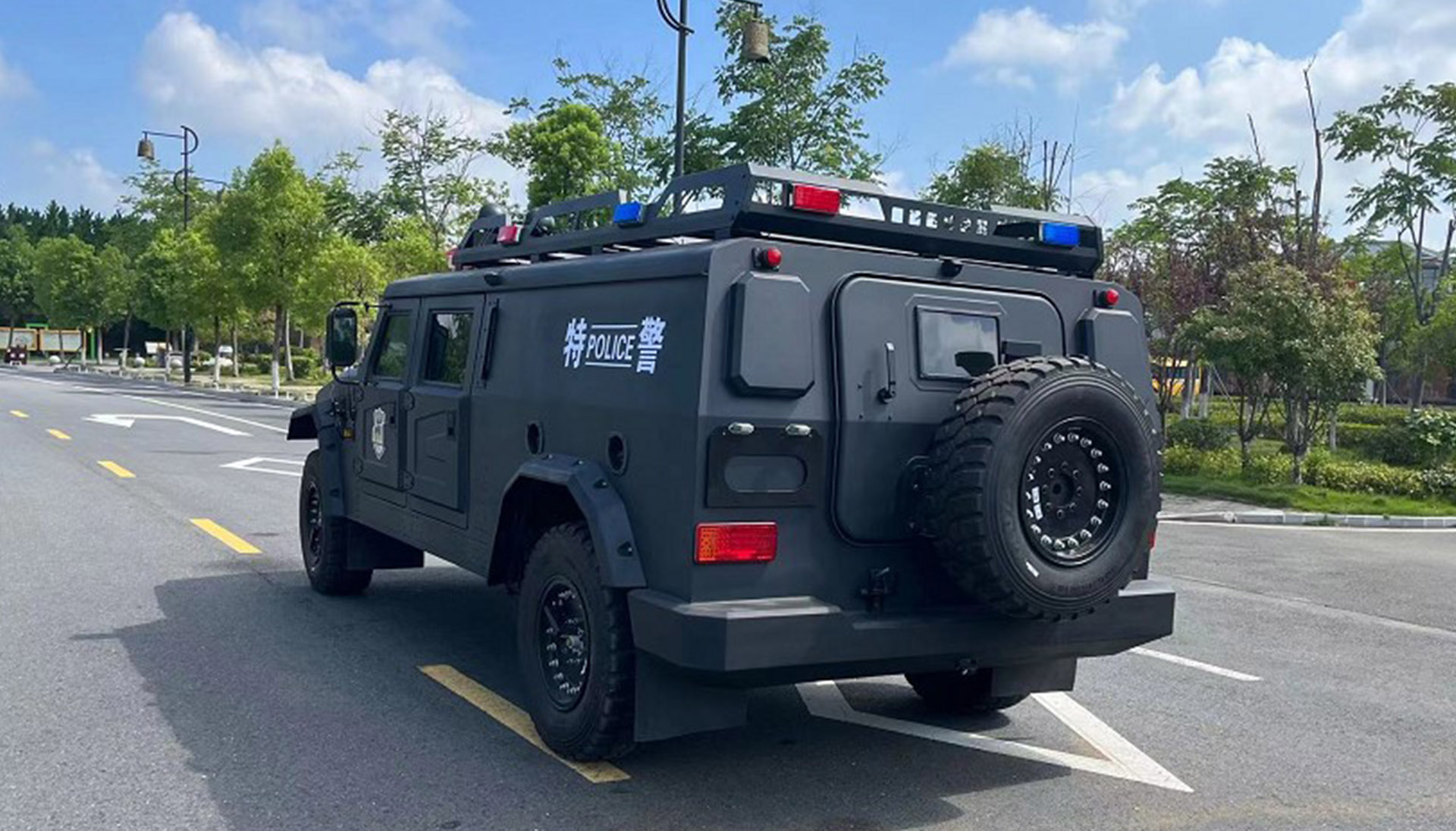

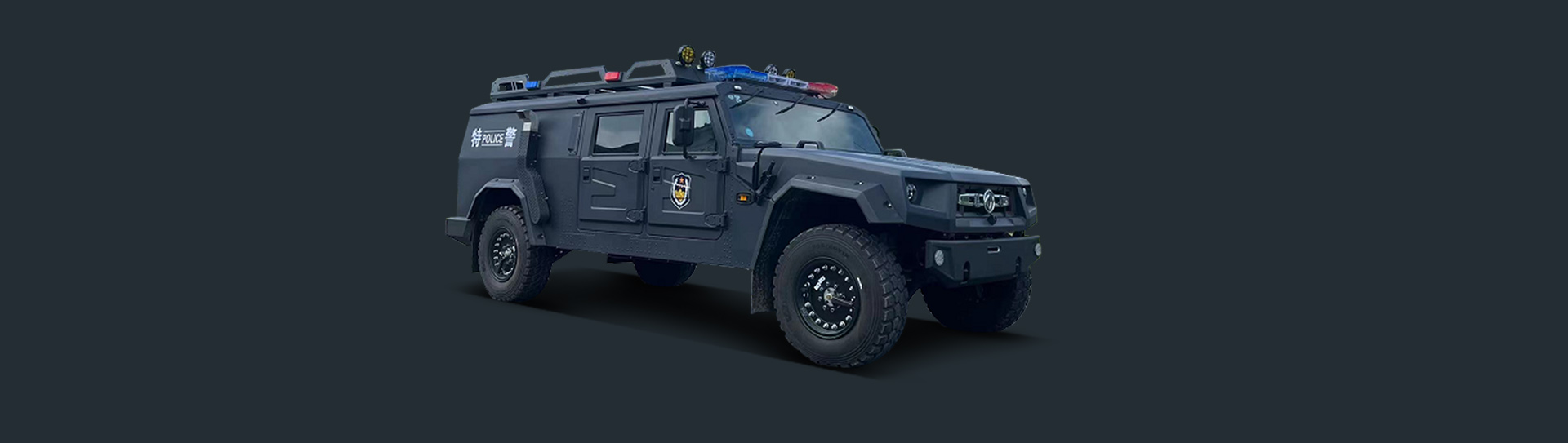

Public Security Police vehicle

The Public Security Police Vehicle has the characteristics of strong mobility, multifunctionality and convenience. It can quickly respond to various illegal behaviors. Different emergency or field operation equipment can be equipped according to customer application scenarios.

External Size (mm): 5320×2310×2430,2080

GVW(kg): 4495

Curb Weight (kg): 4105,4235

Rated Passengers: 2+4,2+2

Forward Reconnaissance Vehicle

It used for real-time information transmission in complex environments；It can quickly detect major disasters, arrive at the scene as soon as possible, and obtain comprehensive intelligence；It can predict disaster situation, analyze situation, and assess risks.

Under emergency response model：It can obtain the main chemical composition of the site through auxiliary decision-making information.Estimating the danger level and the investigation safe distance for vehicle.Flexible assembly of protective systems based on decision-making opinions.Quickly response to establish the cabin protection system.

Vehicle Name: Drone Carrier

Vehicle Specifications: A dedicated detection vehicle that integrates environmental monitoring and communication, intelligent protection and rescue system, data analysis model system, and electronic information subsystem.

Curb Weight (kg): 5480

GVW(kg): 6000

Length X Width X Height (mm): 5998X2398X2850

Drone Detection System: Equipped with 5 drones for automatic cruise control.

Reconnaissance radius of drone: 8km

Hovering accuracy: ±0.1 m vertically;±0.3 m horizontally

Max. ascent speed: 6 m/s

Max. descent speed (vertical): 5 m/s

Max. incline descent speed: 7 m/s

Max. horizontal flight speed: 23 m/s

Max. flight altitude: 5000m

Max. wind speed: 15 m/s (level 7 wind)

Max. wind speed tolerable during takeoff and landing: 12 m/s (level 6 wind)

Max. flight time: 55 min

Inspection And Thermal Imaging Cameras: Working temperature：-20°C -50°C

Sensor: effective pixel 20 million

Hybrid optical zoom: 23x

Video resolution: 3840x2160@30fps,1920x1080@30fps

Max. photo size: 5184 X 3888

Thermal imaging sensor type: Non cooled vanadium oxide (VOx) microcalorimeter

Digital zoom: 1x，2x，4x，8x

Video resolution: 640X512 @ 30 Hz

Photo resolution: 640X512

Pixel spacing: 12 μm

Wavelength range: 8-14 μm

Sensitivity (NETD): ≤50 mK @ f/1.0

Temperature measurement methods: point temperature measurement, area temperature measurement

Temperature measurement range: -40 ° C to 550 ° C

Laser rangefinder Wavelength: 905 nm

Measurement range: 3-1200 m

Measurement accuracy: ± (0.2m+D) × 0.15%, where D represents the distance between the vertical reflection surface

Gas Detection Detection elements: PM2.5、PM10、Temperature and humidity、NO2、O3、CO、SO2、VOCs

Working temperature range: -10~40°C

Working pressure range: 80~120kPa

Working humidity range: 15~85RH%

Data transmission distance: 8km

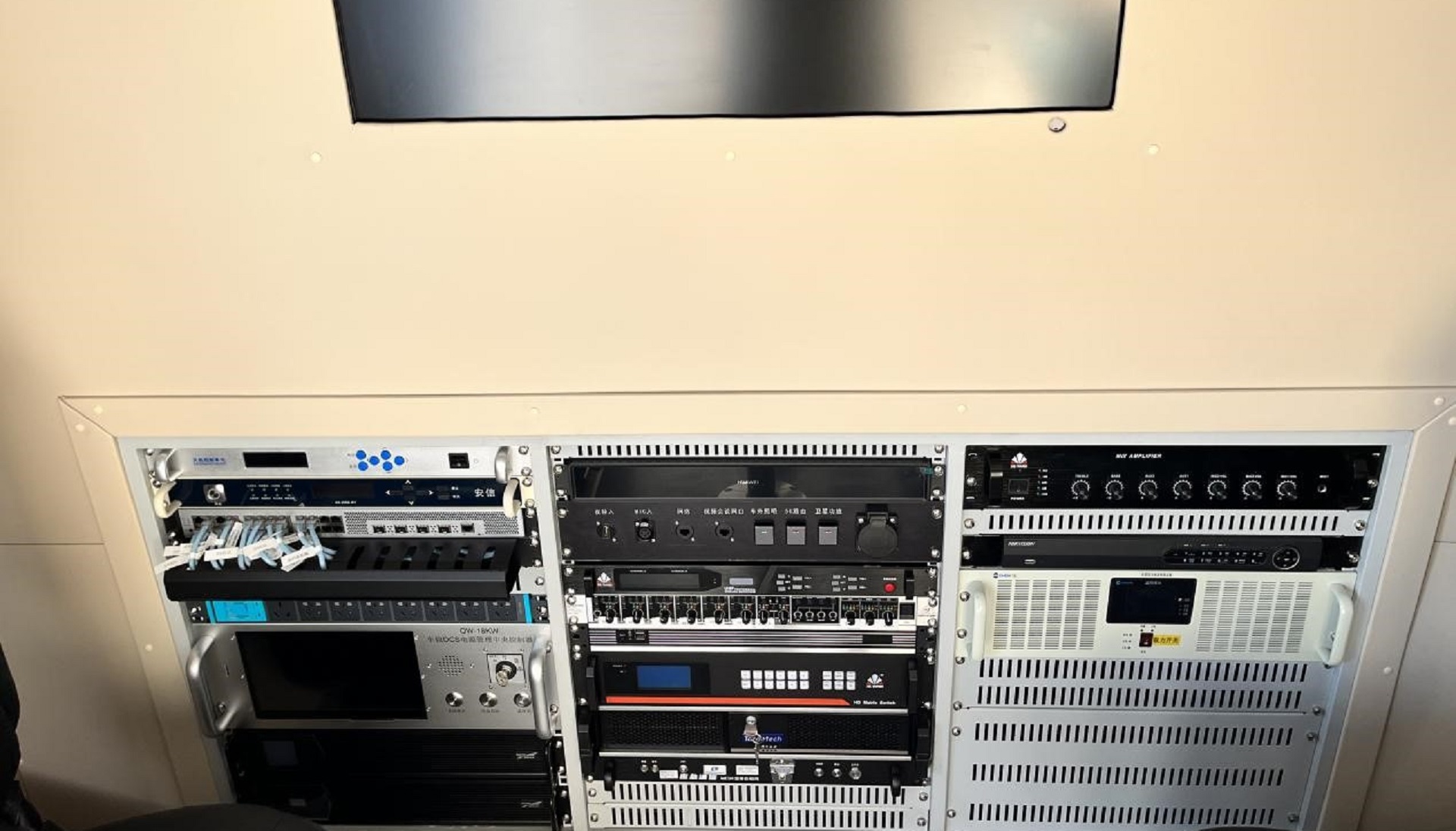

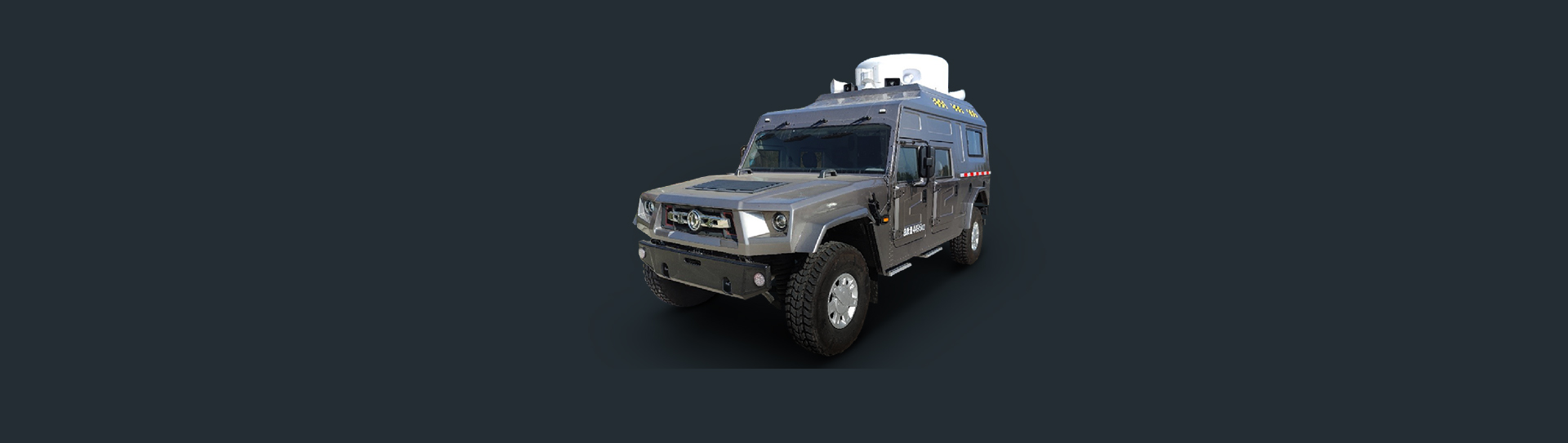

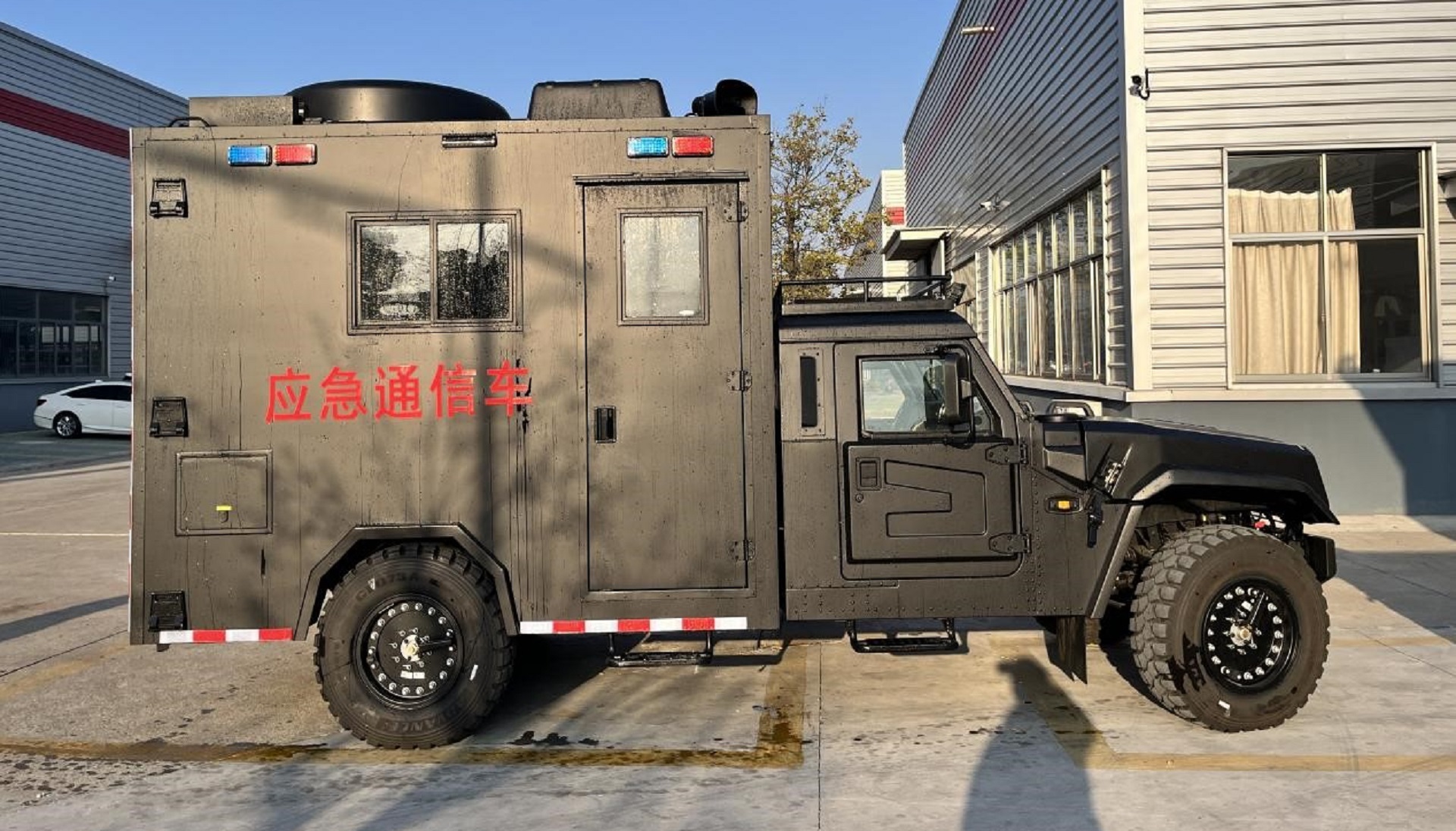

Communication Vehicle

The M500 chassis off-road vehicle is used. 1.Added the high-precision communication equipment. 2.After a sudden accident or disaster, the communication vehicle can quickly reach the scene with superior off-road performance and passing performance. 3.Ensure smooth transmission of information.

Vehicle Brand: Guangzhou Weibang

Main Configuration: 6、Emergency lighting system for lifting and lowering 7、Satellite communication system

Main Function: It can communicate through satellite, 5G, private network communication, and cable.

Main Function: 3. Comprehensive monitoring of the integration of space, air and ground, including aerial drones, roof-mounted cameras, in-car conference cameras, digital individual communication and self-organizing network systems

Main Function: 5. The drone escort function enables the vehicle to take off and land with one click when driving at high speed (less than 70 kilometers per hour), making the operation simple and fast.

Main Function: 6. Digital individual soldier system and self-organizing network, realizing real-time communication between vehicles and personnel beyond 30 kilometers

Main Configuration: 1、Video capture system such as pan tilt cameras, individual soldier systems, drones, etc. 2、Video storage and transmission system 3、Video conferencing system 4、Broadcasting and publicity system 5、Generator and other power supply and distribution systems

Main Function: 1. Mobile satellite communication system can breaks through the limitations of time, region, and distance, and achieves dynamic, static, and no-dead-angle transmission without the need for satellite alignment.

Main Function: 2. Multi-link 5G converged communication compatible with 4G and 3G communication horizontally adapts to different operator network signals, and reduces mobile signal blind zones.

Main Function: 4. Equipped with unmanned aircraft system to achieve integrated monitoring and command of the earth, sky and space.

Main Function: 7. Realized audio and video transmission and call between the communication command vehicle and the command center, quickly gather ideas from multiple parties, and convey accurate decision.

Embankment Inspection Vehicle

Embankment Inspection Vehicle is an essential technical equipment for flood prevention and rescue by the Emergency Management Department. 1.It can complete 100 meter embankment risk detection in 1 minute. 2.It can replace manual embankment patrol. 3.It can quickly detect dangerous situations such as flood piping, scattered flooding, and bank collapse.

All terrain chassis, suitable for complex flood season embankment environments; Equipped with various devices (transient electromagnetic, ground penetrating radar, LiDAR, and panoramic camera), it can detect hidden dangers inside embankments; equipped with an integrated mobile 3D measurement system, it can obtain precise positioning, 3D point cloud, and high-definition continuous full image data during high-speed movement.

GVW(kg): 5800

Curb Weight(kg): 5670

Length(mm): 5980

Width(mm): 2459

Height(mm): 2820

Potential Hazard Identification: 1. A new method for identifying hidden dangers in embankments based on the distortion of seepage flow fields, which converts the detection and positioning of defects into the identification of seepage flow field distortion.

Potential Hazard Identification: and traces back to locate the center of hidden dangers inside the embankment.

Potential Hazard Identification: A new method for layered measurement and comprehensive evaluation of electrical parameters of land, which solves layered physical parameters through iteration, fitting, and other methods, establishes a formula for solving wave velocity at different depths

Potential Hazard Identification: A new method of active and passive fusion detection of physical fields in embankments, which combines passive measurement of magnetotelluric fields with active determination of electric fields, to improve the precision and accuracy of disease detection.

State Detect: 1. Ground-towed small loop transient electromagnetic system, new transceiver shielding coil, accurate waveform transmission technology and towed continuous measurement signal processing method, forming a ground-towed transient electromagnetic system

Power Supply System: The power taking motor can provide uninterrupted power supply to the communication equipment, and can output 220V, 5000W pure sine wave power for communication and reconnaissance equipment. 12V and 220V power sockets are located at appropriate positions.

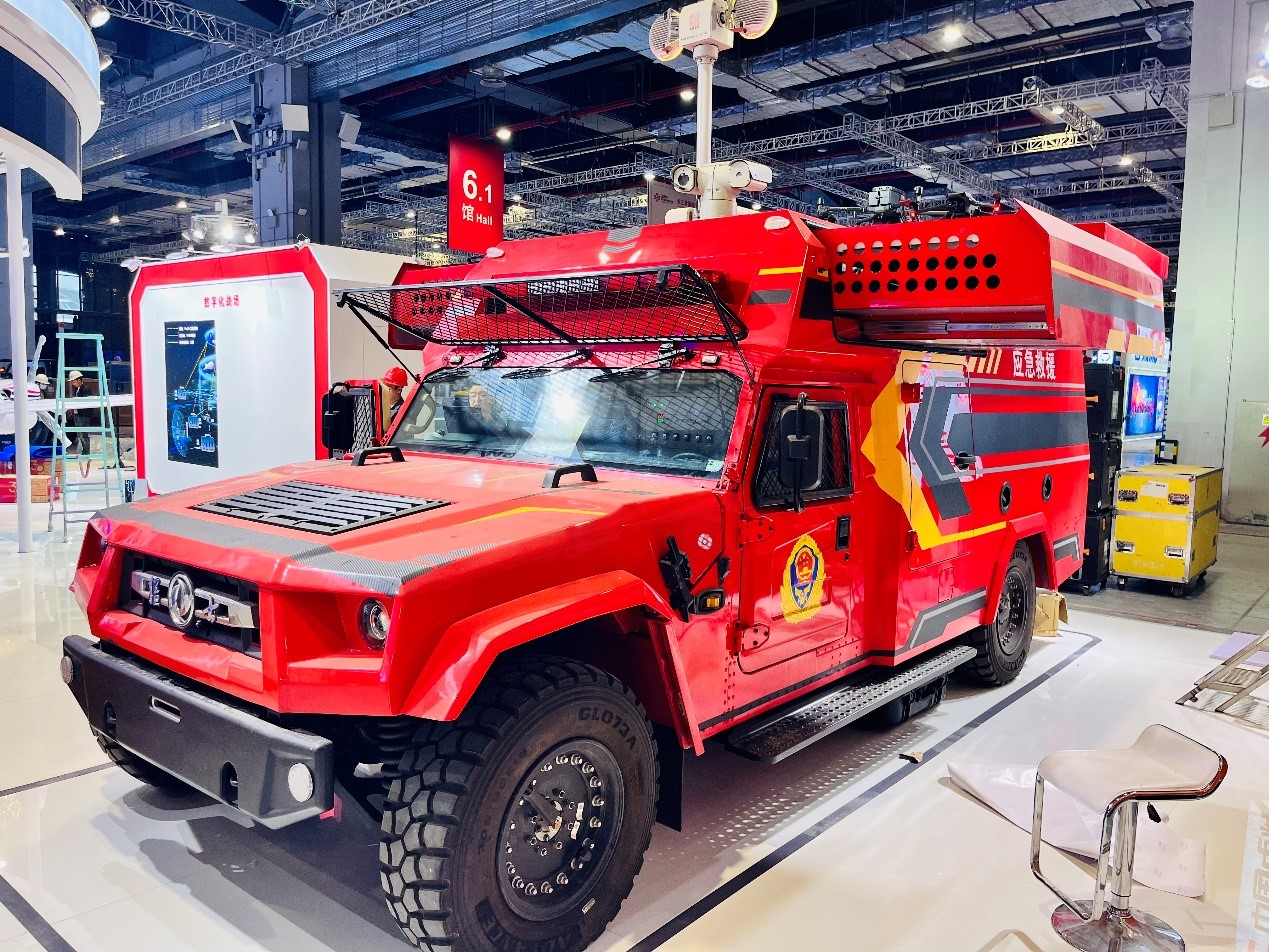

Emergency Support Vehicle

Emergency Support Vehicle, as a leading vehicle for emergency support, has relatively rich information technology decision-making tools and can penetrate into the front line of emergency firefighting. 1.It is mainly equipped with advanced communication equipment command system, which is applied to communication command in emergency scenario. 2.Suitable for complex situations such as urban off-road and mountainous areas during flood season.

GVW(kg): 5530

Curb Weight (kg): 5400

Standard Configuration: Standard shelter, warning light and alarm system, intercom system, integrated power supply system

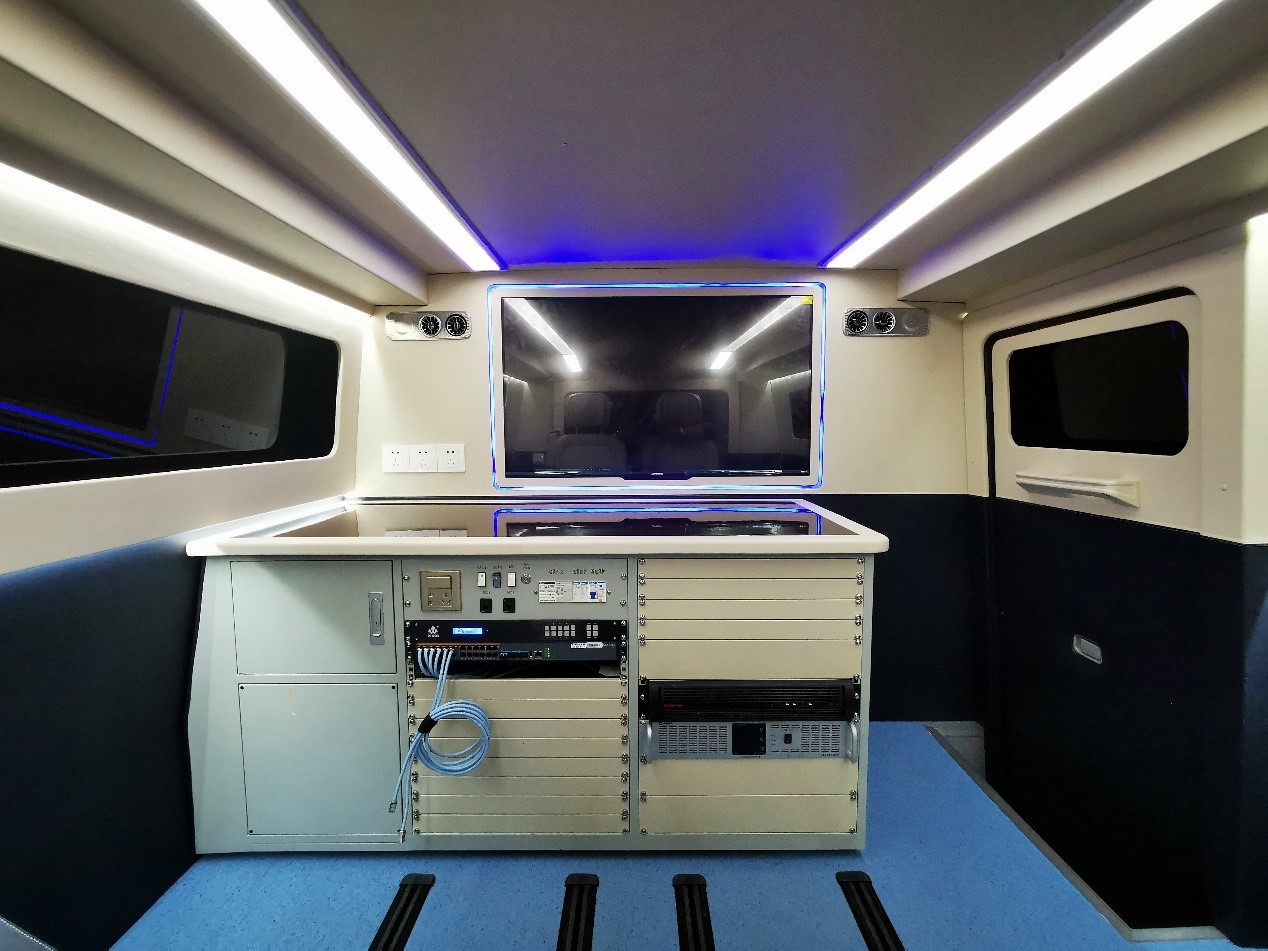

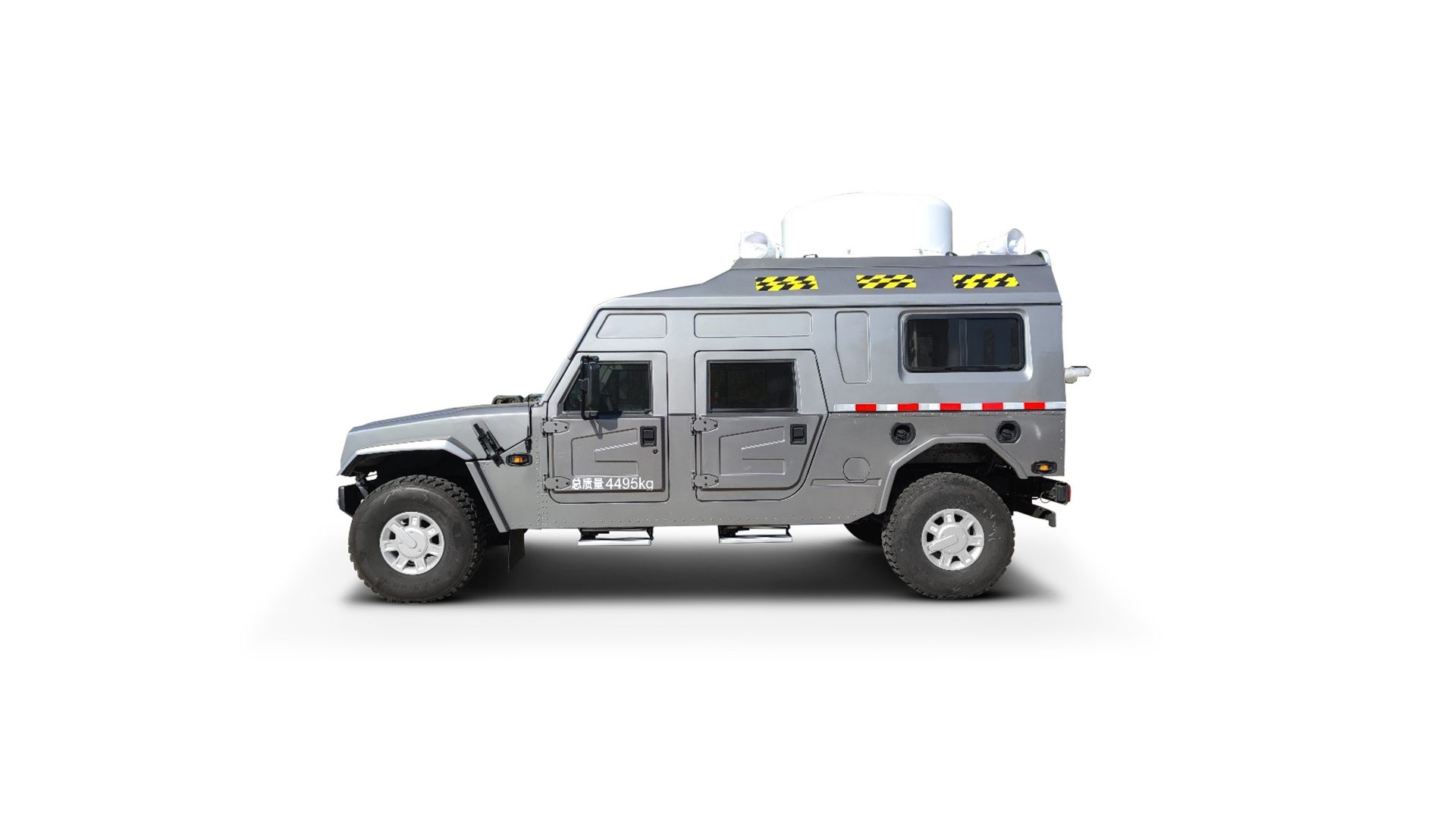

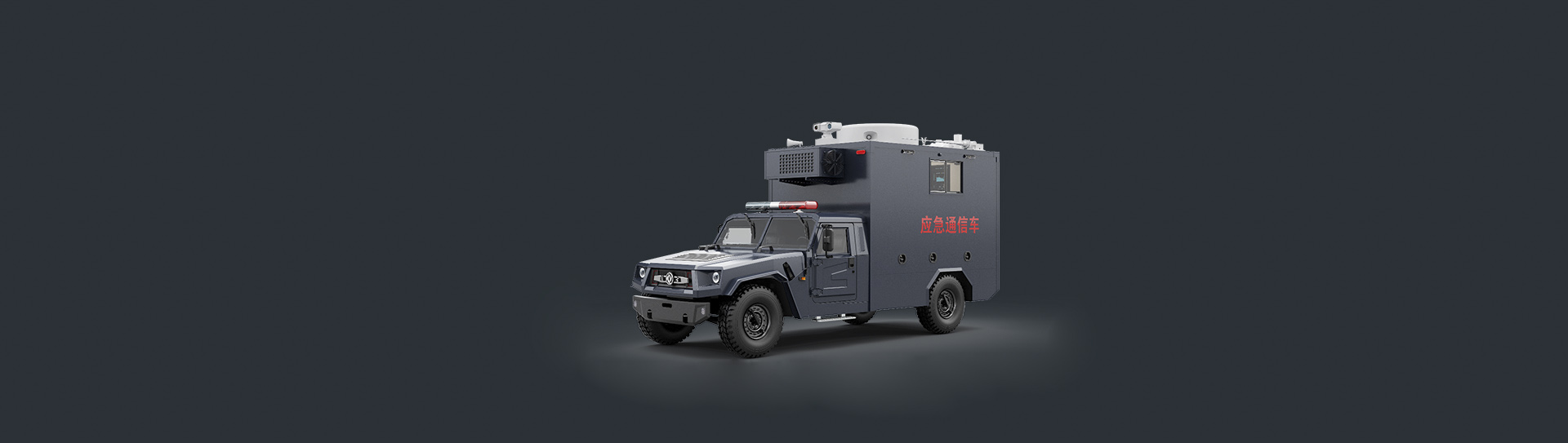

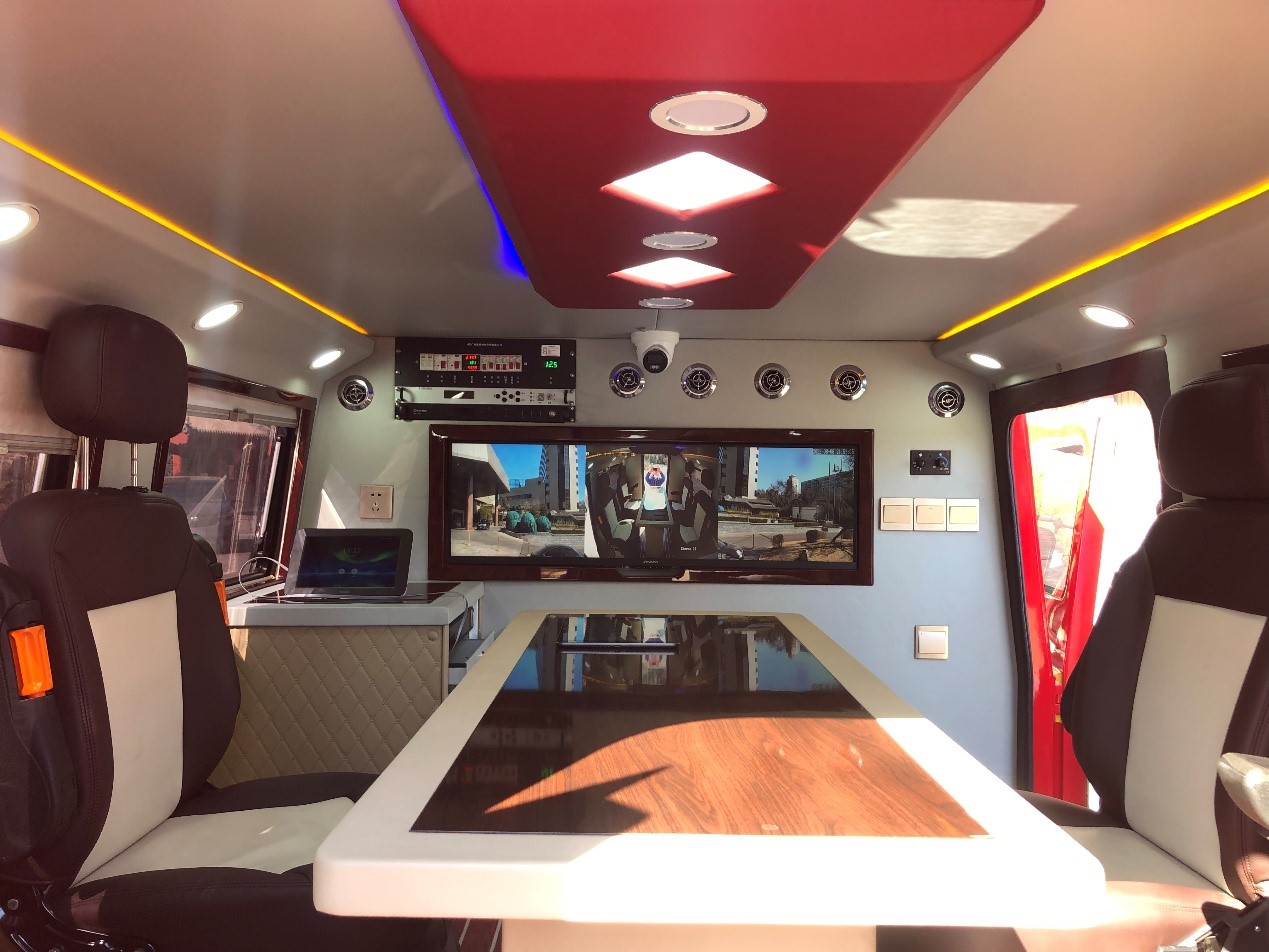

Communication Command Vehicle

It is mainly equipped with advanced communication command equipment system, which is applied to communication command in emergency scenarios. Mainly serving emergency firefighting, petrochemicals, public security and police, communication fields, etc

GVW(kg): 4495

Curb Weight (kg): 4365

Standard Configuration: I chassis, a warning light and alarm system, an intercom system, a lighting system, and a comprehensive power supply system

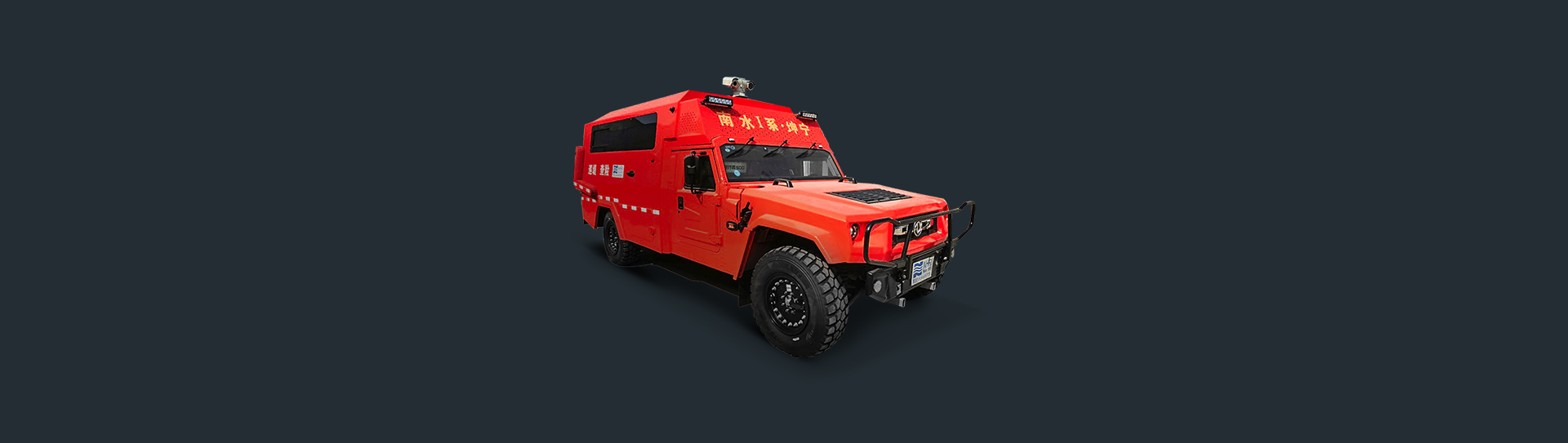

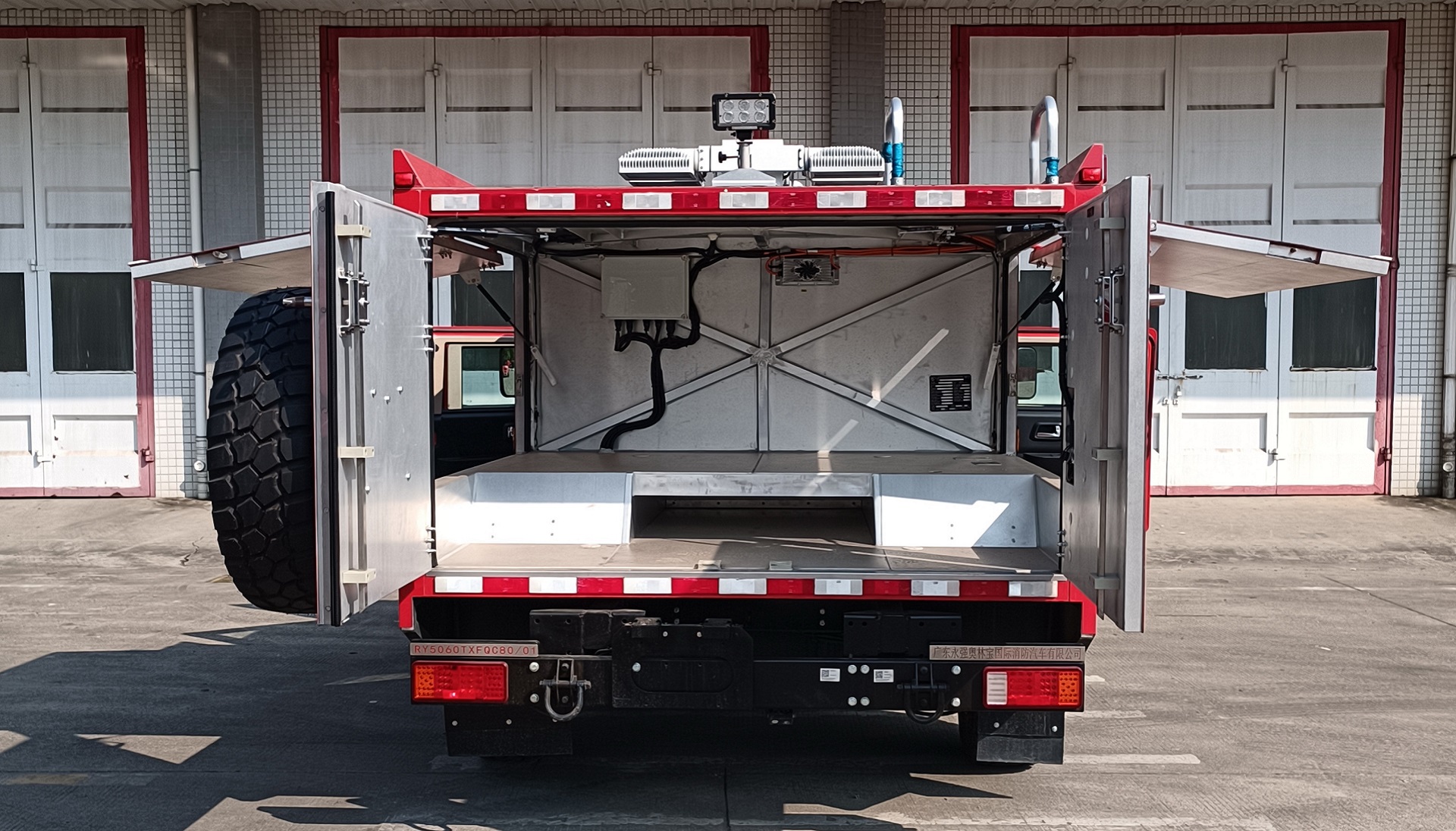

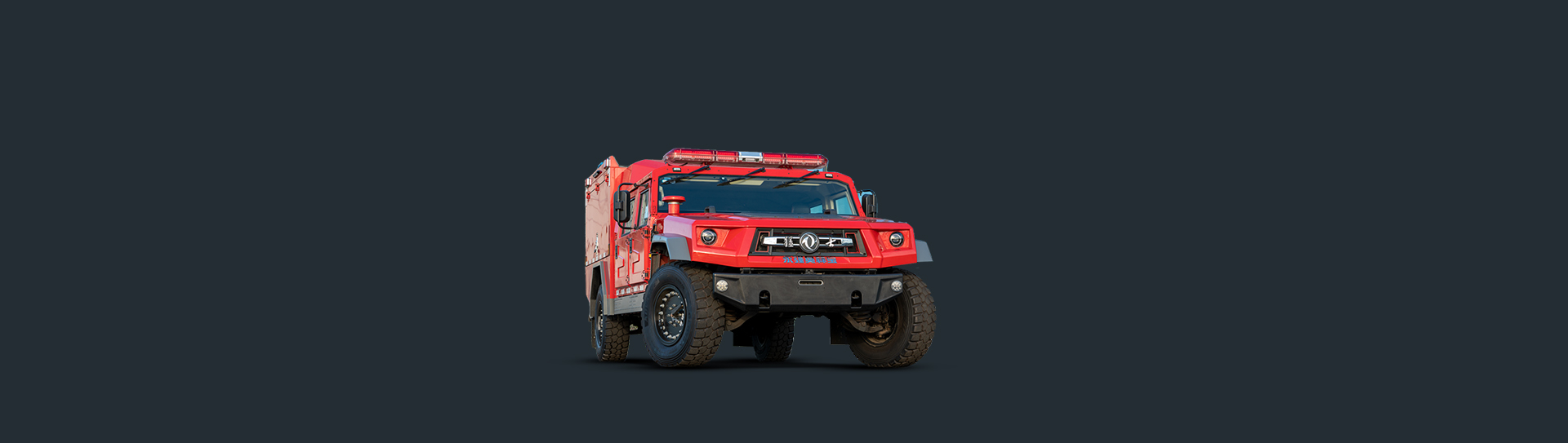

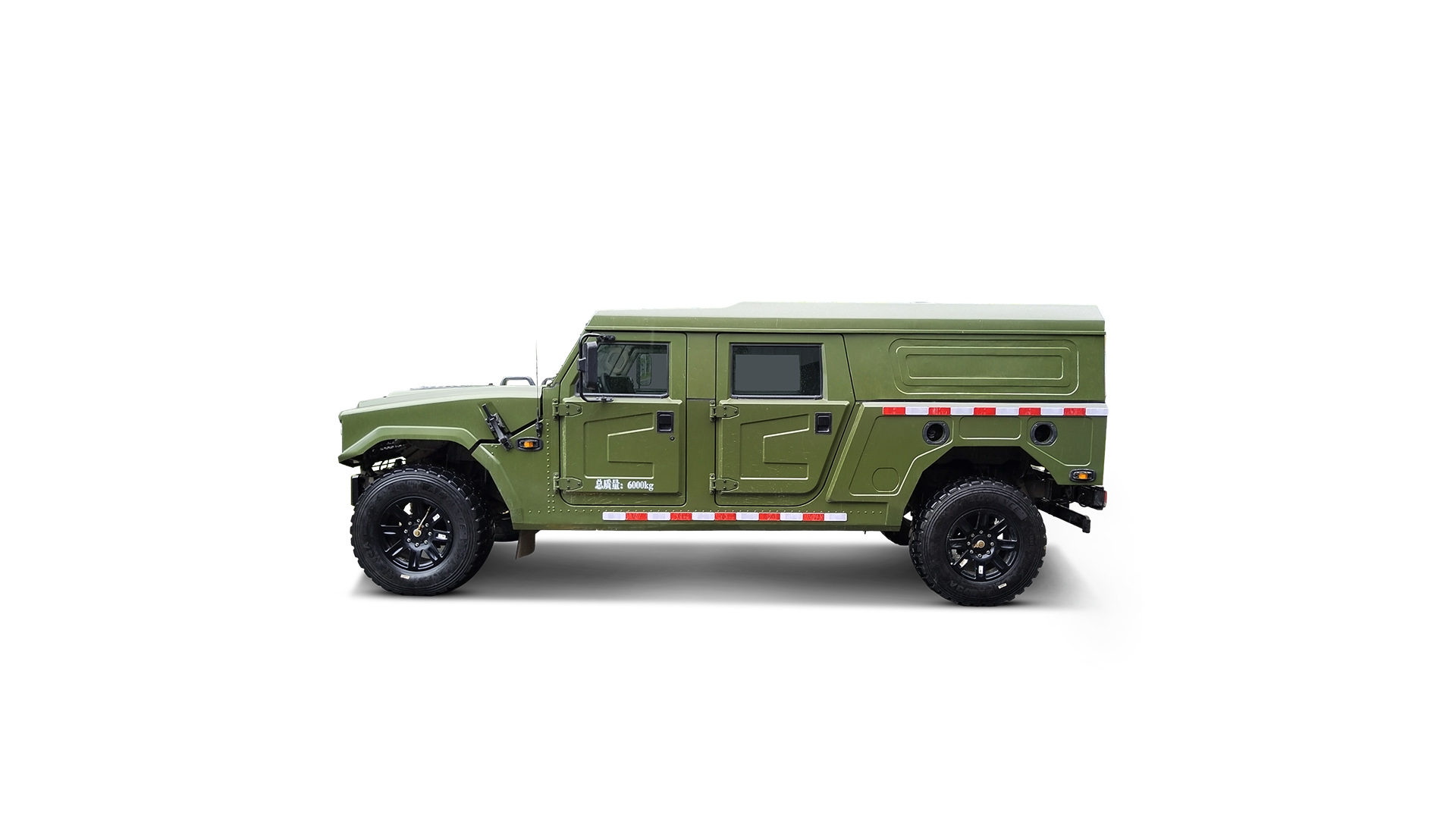

Fire Equipment Transporter Vehicle

This vehicle is mainly used for the transportation of emergency firefighting equipment and has the following characteristics. Excellent off-road mobility and good adaptability for modification. All weather, all time, all terrain, and all regional operational capabilities. Capable of performing diverse tasks in complex terrains such as mountains, jungles, towns, plateaus, high cold regions, deserts, and residential areas.

1.It can carry various types of emergency rescue equipment;

2.It can carry and tow assault boats for flood rescue;

3.It can be used for rescue in various complex environments such as forests, mountains, deserts, etc

4.Equipped with high-power lifting lighting system and front towing, achieving rescue and self rescue.

GVW(kg): 5600

Curb Weight (kg): 5300

Body Structure: All-aluminum alloy structure

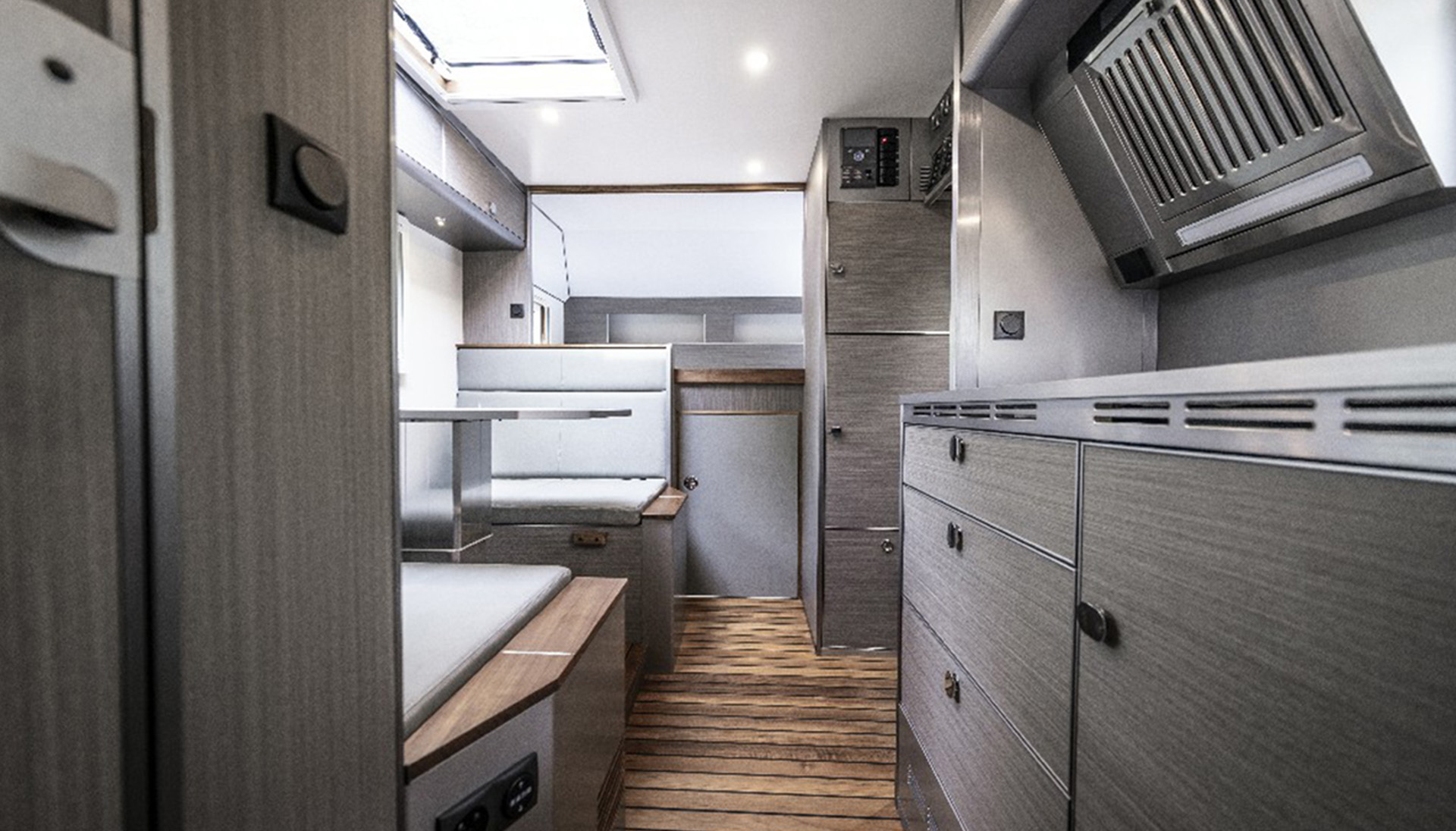

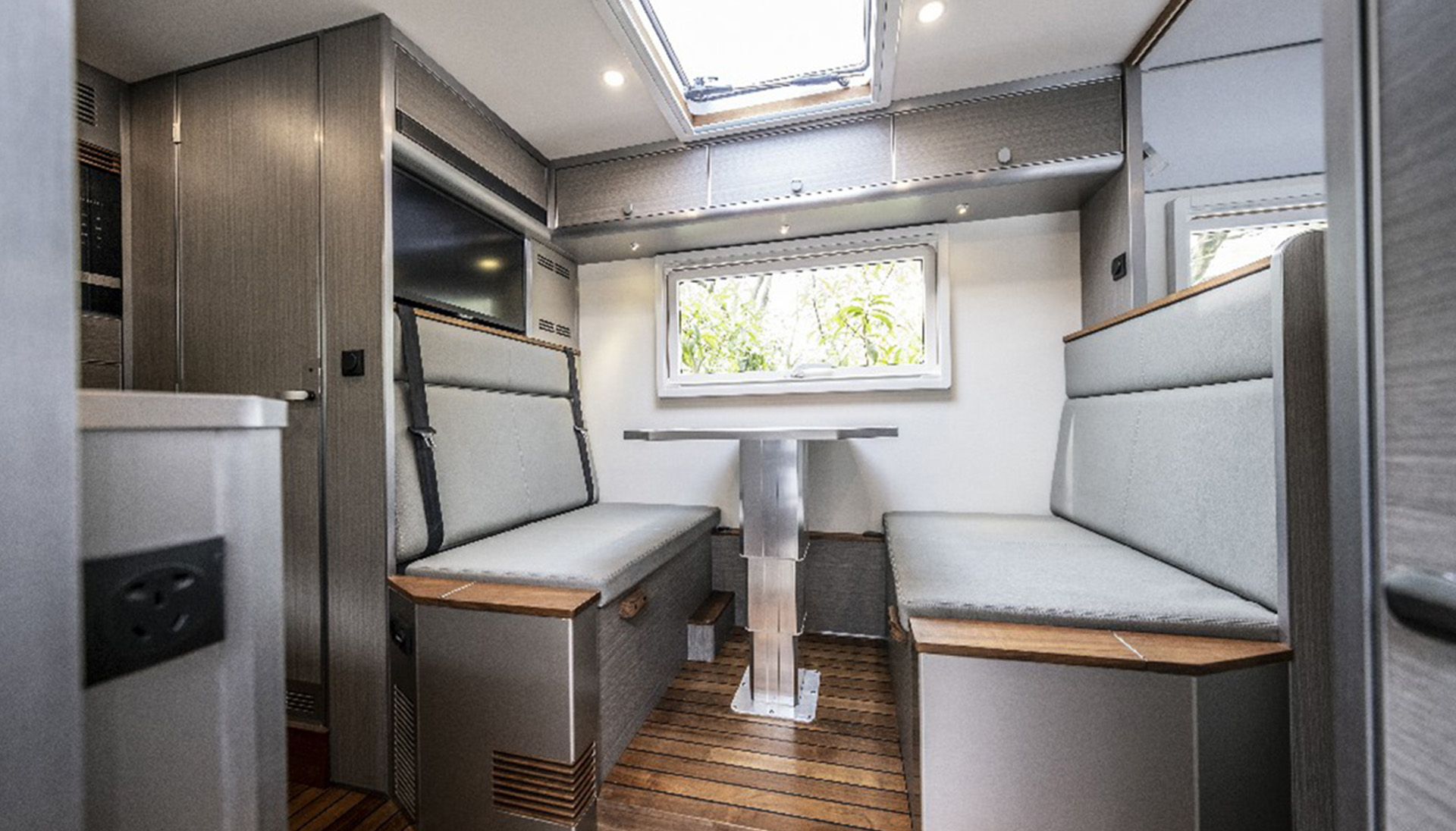

Amodiluo Station Wagon

Large forehead C-type with sharp edges, highlighting personality. Durable structure: Broken bridge insulation sandwich structure and high-strength fiberglass steel plate. Modern interior design: The combination of gray furniture panels and teak flooring adds a sense of fashion. Comfortable living area: The forehead bed, reception area, kitchen area and bathroom are all available. Cabin access window: The living area is interconnected with the cockpit for easy passage.

Vehicle Name: Amodiluo Motor Home

Length(mm): 5980

width(mm): 2260

height: 2920

GVW (kg): 6000

Rated Passengers: 4

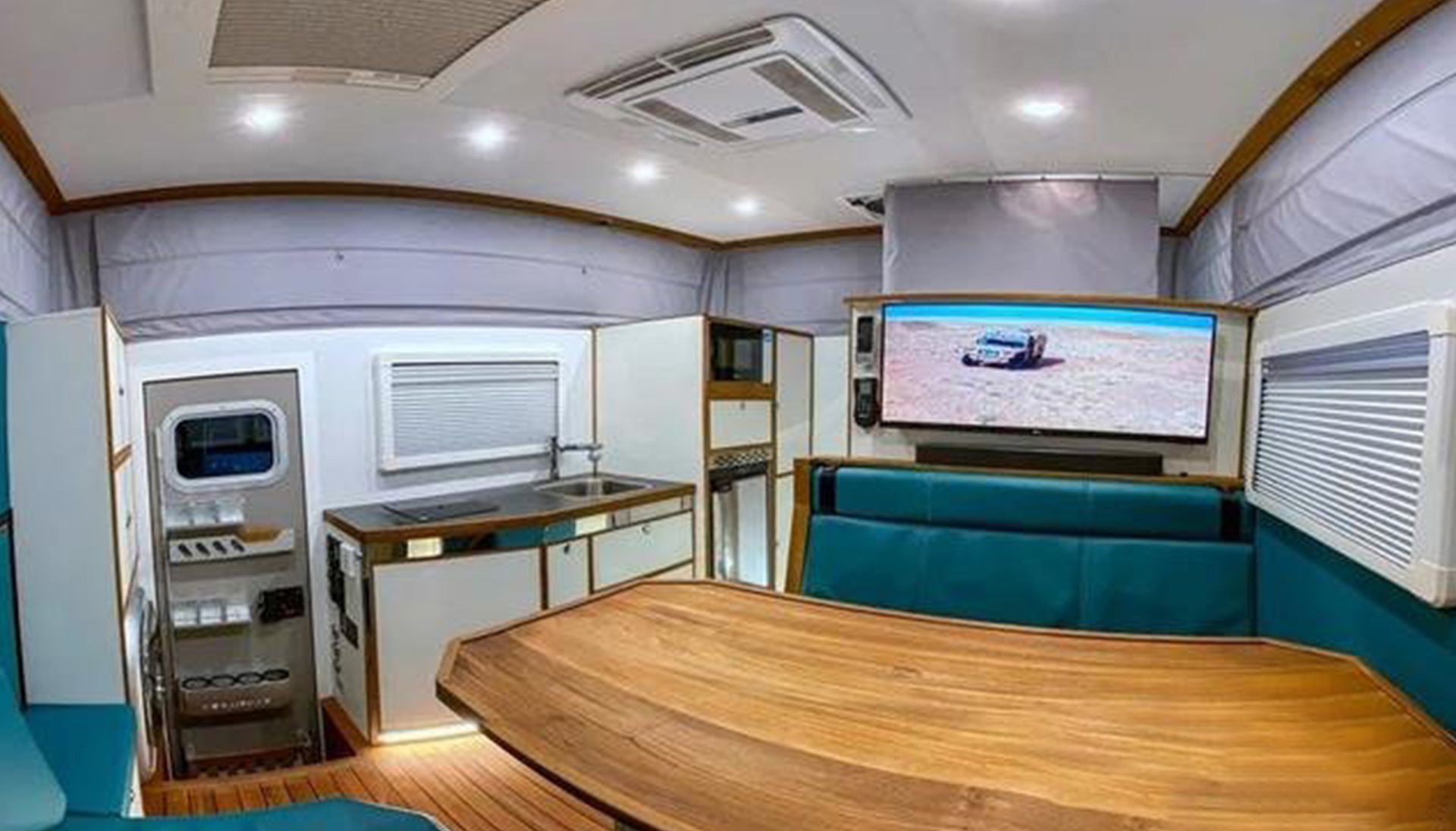

Lv Mei Station Wagon

Arrival all regions: Easily conquer mountains, jungles, plateaus, and deserts. Multifunctional station wagon: Design of dual electric motor system, dual heating, dual kitchen, and diesel stove. Ultimate Comfort: Rest, eat, park and camp at any weather and environmental conditions. Infinite freedom: abundant water and electricity, ample space making the travel experience more perfect.

Vehicle Brand: Lvmei

Rated Passengers: 2,4,5

GVW (kg): 6000

Curb Weight (kg): 5200, 5064, 4996

Long Journey Version Special Vehicle

Optional new style front face： Classic styling: air freight hooks. Redeveloping parts such as the hood, grille, and front bumper to match the new design. Readjust the position of the turn signal to avoid the visual feeling of the headlights being "small". Side Styling Optimization： The rear adopts a split type cargo box which is equipped with a goods cabinet and a generator inside. Newly development of fuel tank cap and urea tank cap which makes the side looks more coordinated. Left and right side openable doors. Back Styling Optimization： Up and down split type doors. After opening retrieve and place stuff.

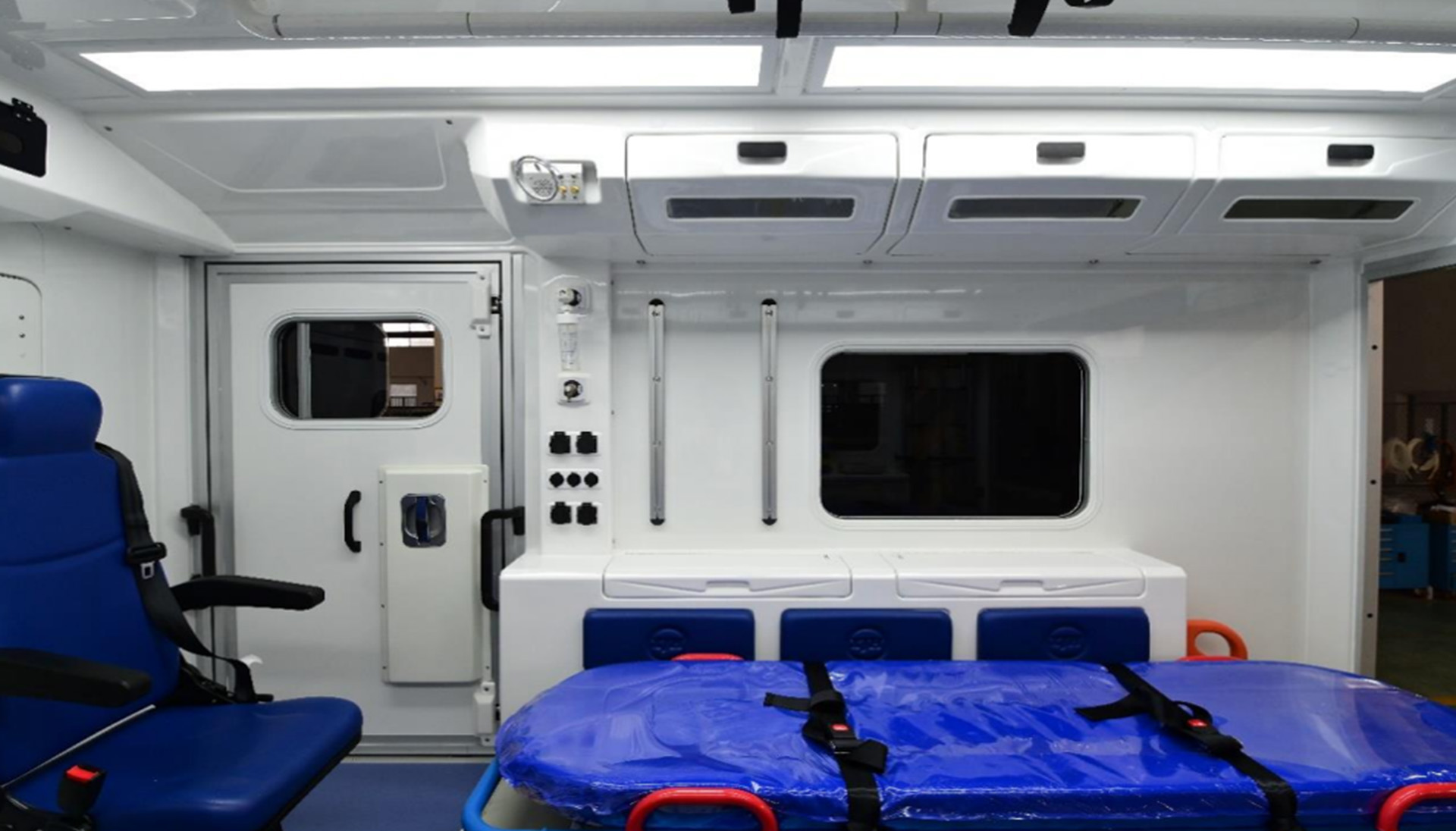

Off-road Wading Ambulance

The vehicle is mainly used for all terrain off-road rescue and can carry out tasks on unpaved extreme road surfaces. Can transport, treat, and monitor lying wounded patients simultaneously.

The interior space of the cabin fully meets the space requirements of the monitoring ambulance, at same time, not affecting the off-road performance of the chassis.

slope 60%, safe wading depth 750mm，Driving slope 40%, torsion 22 °.

1.Integrated electronic control system

2.Embedded negative pressure system

3.Dual electric stretcher platform system

4.Smart emergency information system

Vehicle Brand: Kaifulai

Rated Passengers: 5-8 (Including driver)

GVW (kg): 6000

Curb Weight (kg): 5480

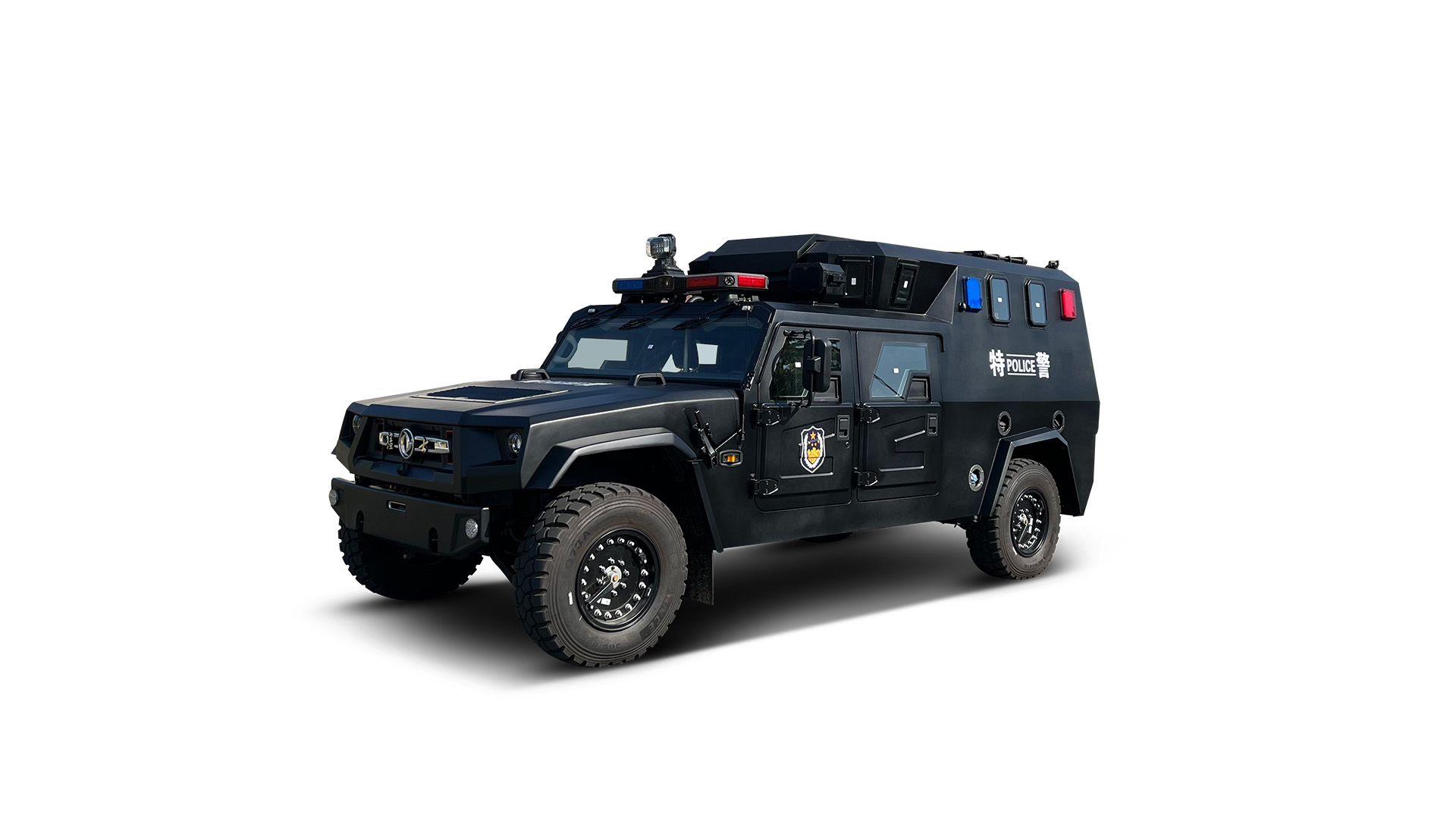

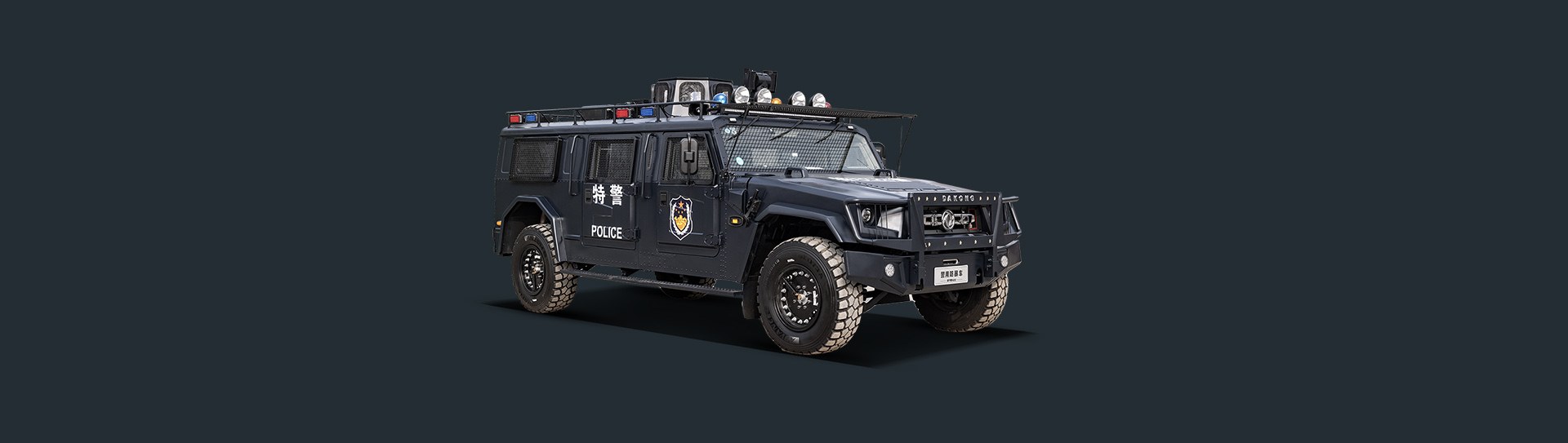

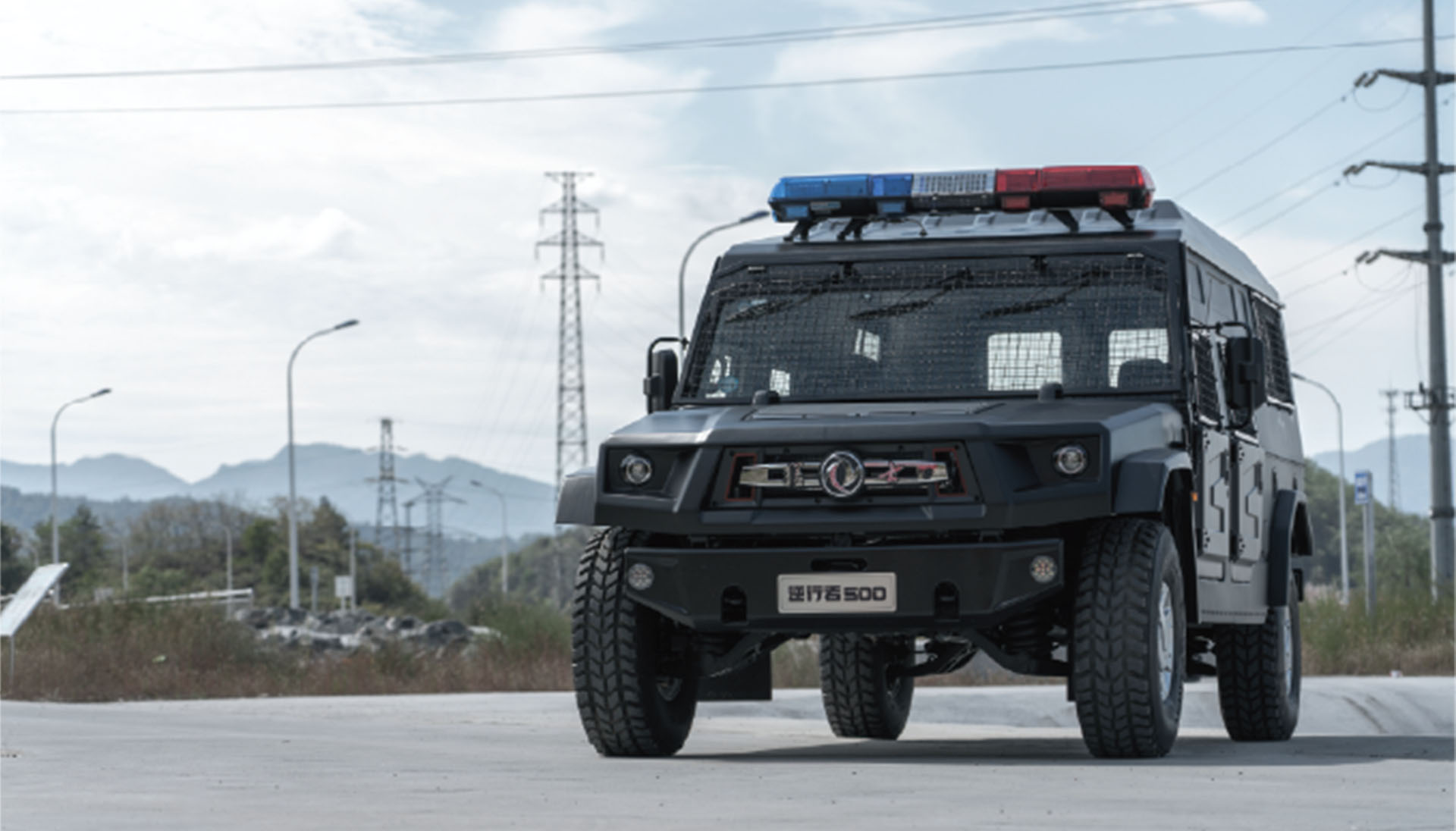

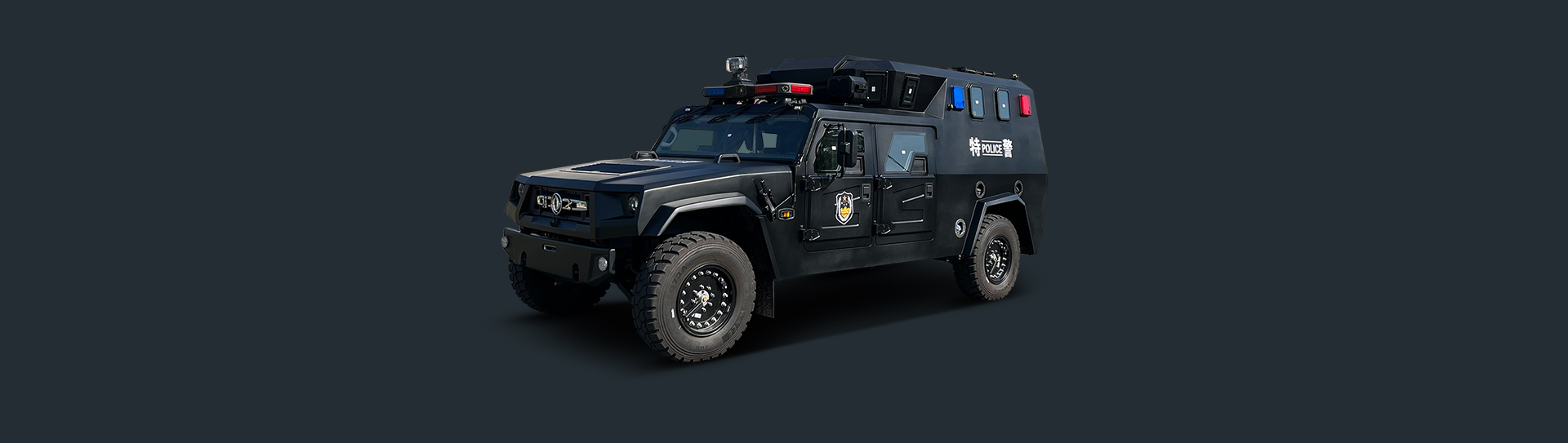

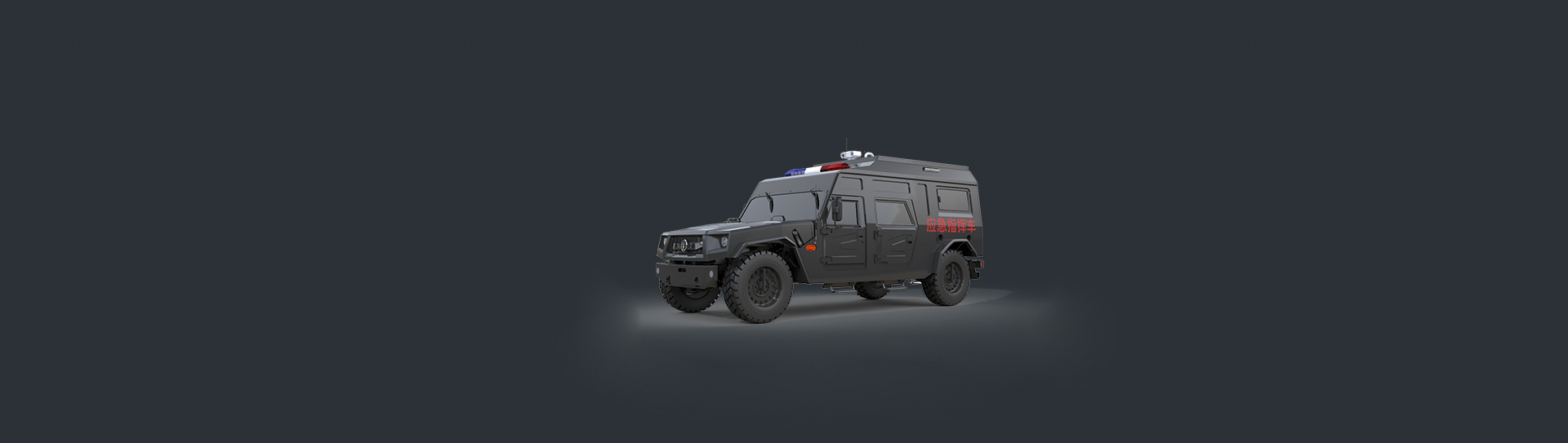

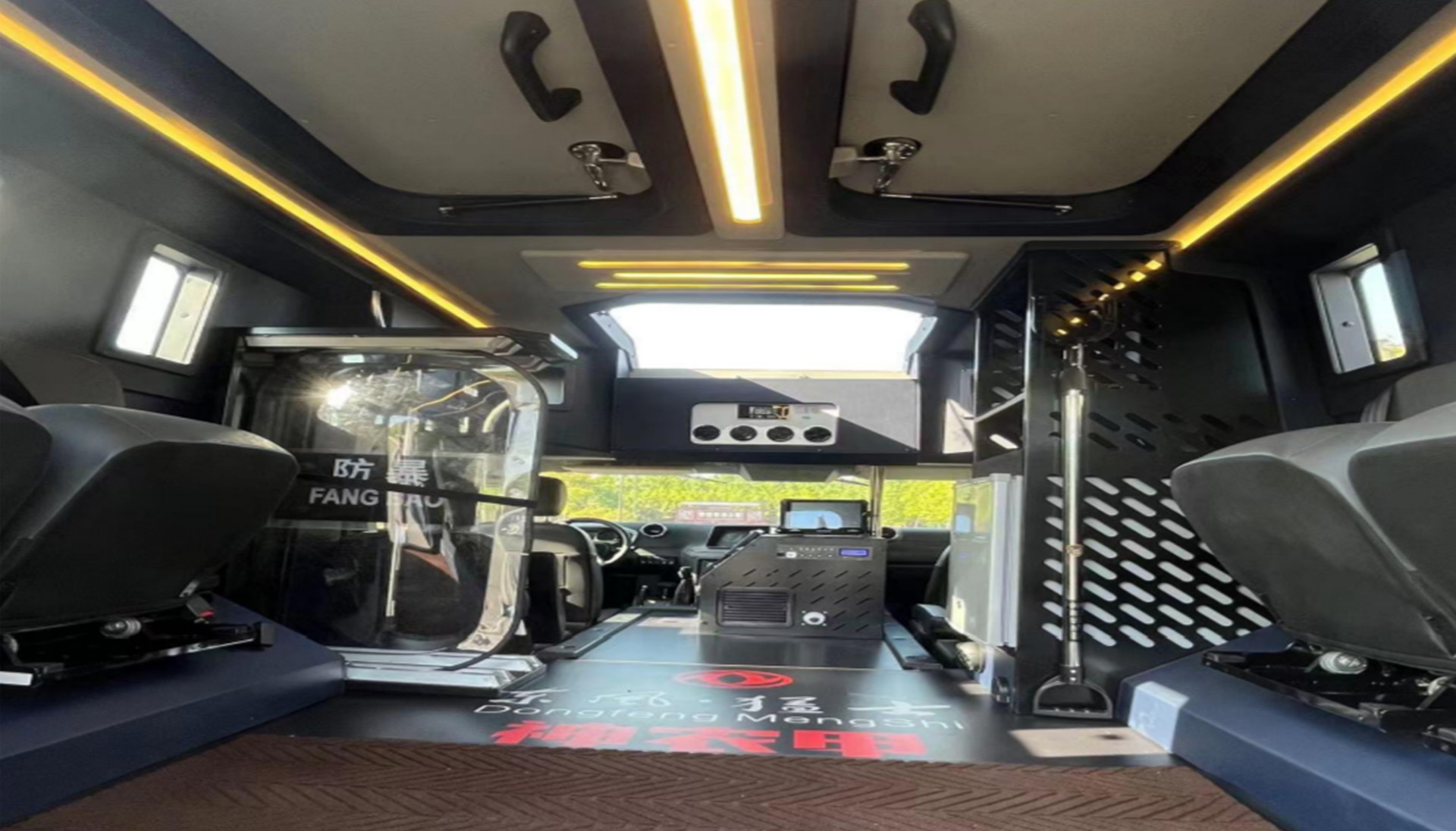

Riot Proof Vehicle

This vehicle can be used for daily police patrols, preventing and dealing with various group security incidents. Configure video capture system, 4G image transmission, car radio, etc. 1.Can carry out diverse tasks in complex terrains such as mountains, jungles, towns, plateaus, high cold regions, deserts, and residential areas. 2.Can be widely used in emergency firefighting, public security special police, petroleum exploration, geological mines, medical rescue, communication command, scientific research and exploration.

Rated Passengers: 4

Curb Weight (kg): 3540

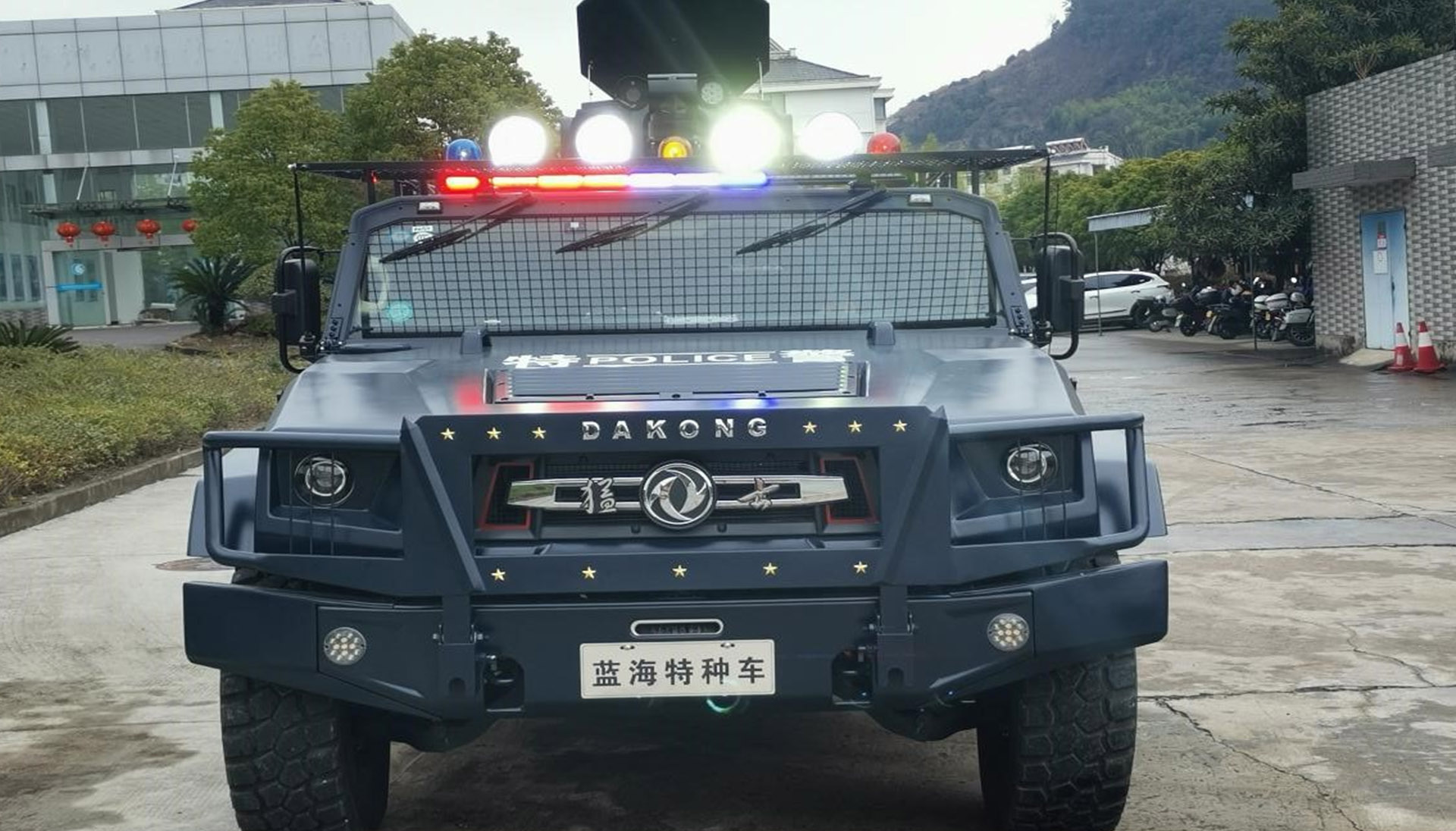

Multifunctional riot proof vehicle

The vehicle has high motility, strong stability and superior off-road performance. 1.It can be widely used for anti-terrorism and riot prevention in public security, armed police, border defense, emergency and other departments. 2.It can carry out special tasks such as maintaining public security, safety protection, border patrols, emergency response, and mobile troop transport.

Vehicle Brand: Dagong

Rated Passengers: 2-4 (High roof 2-12)

GVW(kg): 6000

Curb Weight (kg): 4540

Bulletproof And Riot Proof Vehicle

Bulletproof armor: The body is equipped with four-sided bulletproof armor, protecting the roof turret and various special equipment, which can resist the attack of the 7.62 light submachine gun. Strong power: With strong power and good maneuverability, it has strong off-road capabilities. Practical layout: The vehicle adopts a five doors layout design, greatly improving the reaction speed and versatility of the combat team. Widely applicable: It can be used in emergency firefighting, public security special police, oil exploration, geological mining, medical rescue, communication command, scientific research and exploration, and other fields.

Vehicle Brand: Shennongjia

External Size (mm): 5600X2310X2300

GVW(kg): 5200

Loading Capacity(kg): 800

Rated Passengers: 4+4 or 4+6

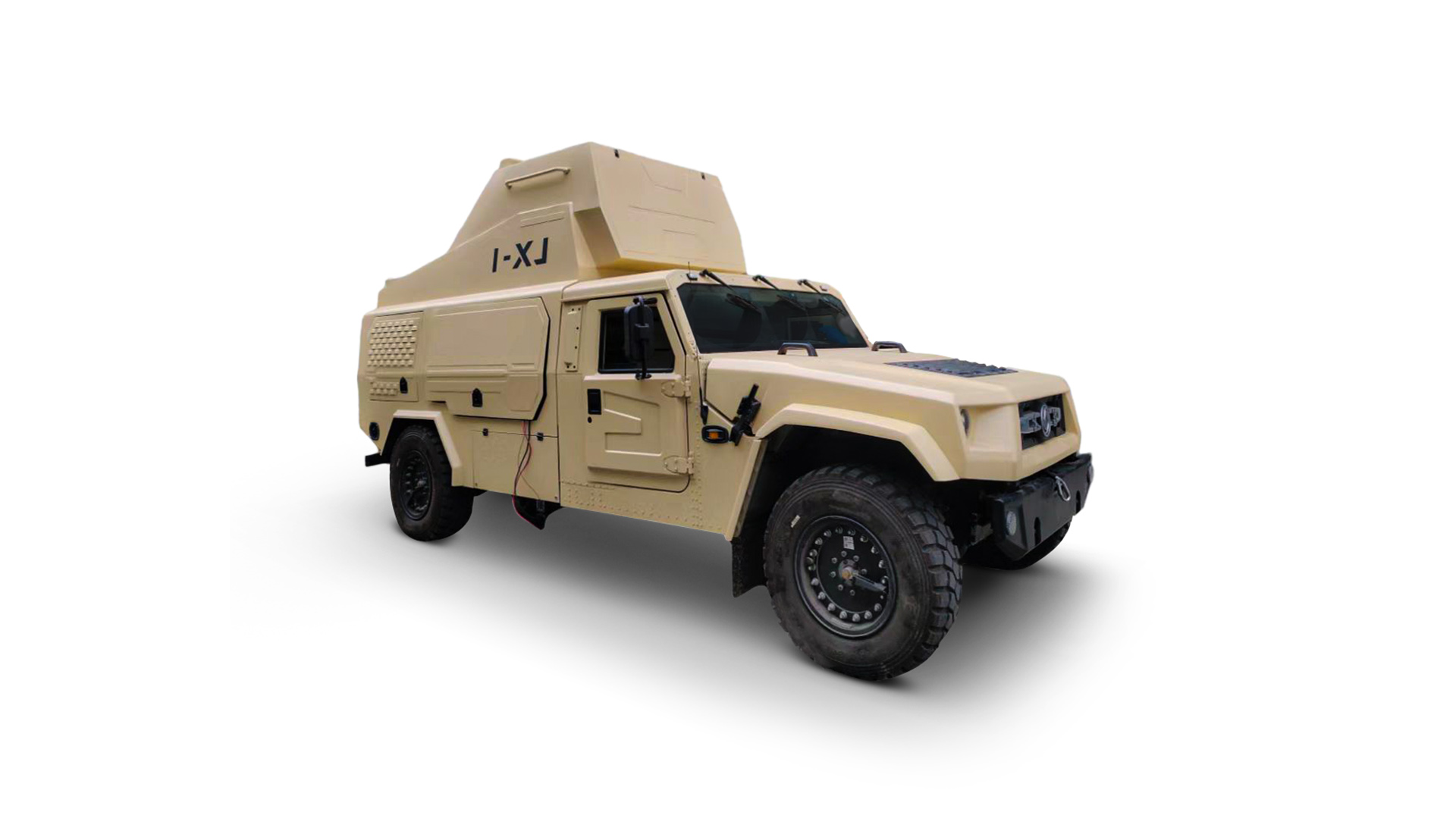

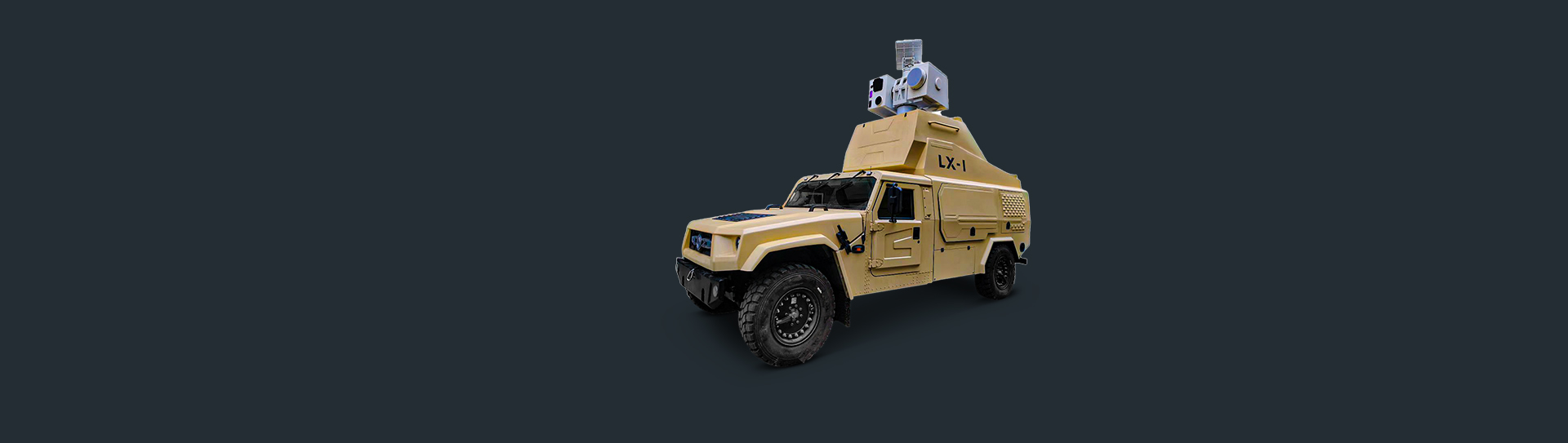

Short Range Laser Defense Vehicle

It has the function of protecting and defending the ground in the air without obstacles. Short Range Laser Defense Vehicle makes the intercepting, blinding and destroying to the "low slow small" targets. Real time detection, capture, and tracking of "low, slow, and small" targets in a 3km airspace, capable of precise interference, suppression, damage, and destruction within seconds.

”Lang Xing”Short-range laser defense system

1.Fast speed, high accuracy, strong firepower, sudden attack, strong sustained combat effectiveness, excellent killing effect, outstanding multi-target strike ability, and minimal collateral damage.

2.Silent, pollution-free, controllable in intensity, and unaffected by electromagnetic interference.

3.Easy to maintenance and low cost.

System response time(Time from radar detection to laser targeting): ≯5s

Target processing performance: Low, small, slow target: the damage time of a target at a distance of 1.5km is not more than 10s; Photoelectric target distance :the blinding time of a target at a distance of ≮3km is not more than 5s

Tracking and aiming performance: Tracking and pointing error ≯10μrad

Environmental suitability: Operating temperature range: -40°C~+60°C; humidity: ≯80% (25°C);wind speed: ≯6m/s; dust and sand prevention

Other Performance: Communicate with the resident weapon system network through Ethernet and receive remote control;

Strike target: Small multi rotor fixed wing drones and other "low slow small" targets such as DJI Elf 4

laser power: 10~20kw

Max. operating distance: 1.5km~2km (Direct destruction) 3km (Blinding)

Fire transfer time (from shooting down the target to aiming at the next target): ≯8s

Angle working range: N×(0~360°);-5°~+80°

Max. continuous light output time: ≮200s

System deployment time: ≯5min

System cancellation response time: ≯5min

Search and capture performance: It has multiple radar and electro-optical (including TV and infrared) search and capture capabilities; the maximum search distance for small multi-rotor drones is a) radar search distance: 500m~5km; b) electro-optical capture distance: 3km

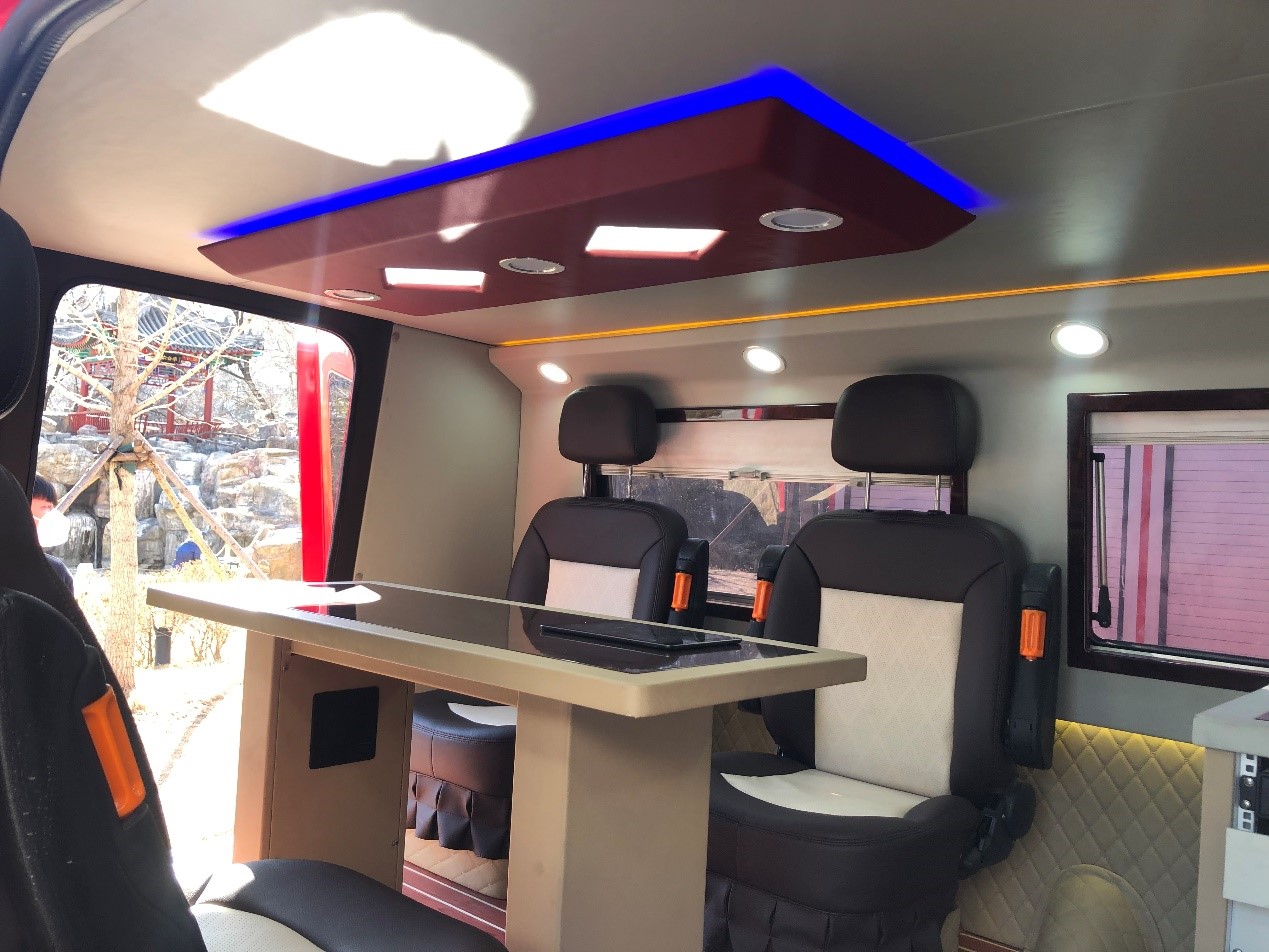

Pioneer Command Vehicle

The Pioneer Command Vehicle has fast mobility and can quickly reach the emergency scene, and provide real-time feedback to the command center through various communication modes. It suits for complex situations such as urban off-road and mountainous areas. It can provide decision support and command dispatch for emergency response of events.

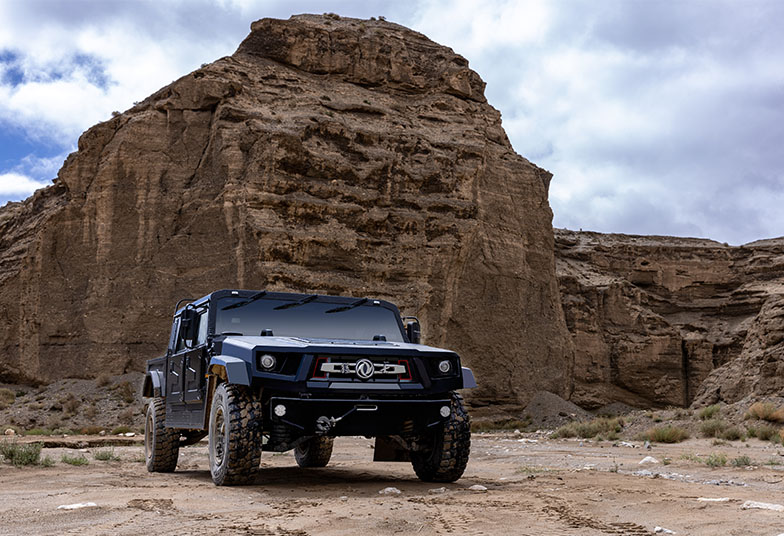

Robust performance Worry-free off-road

Easy to modify models，Luxurious interior

Single,Double-row Pickup，Standard, High-roof Van

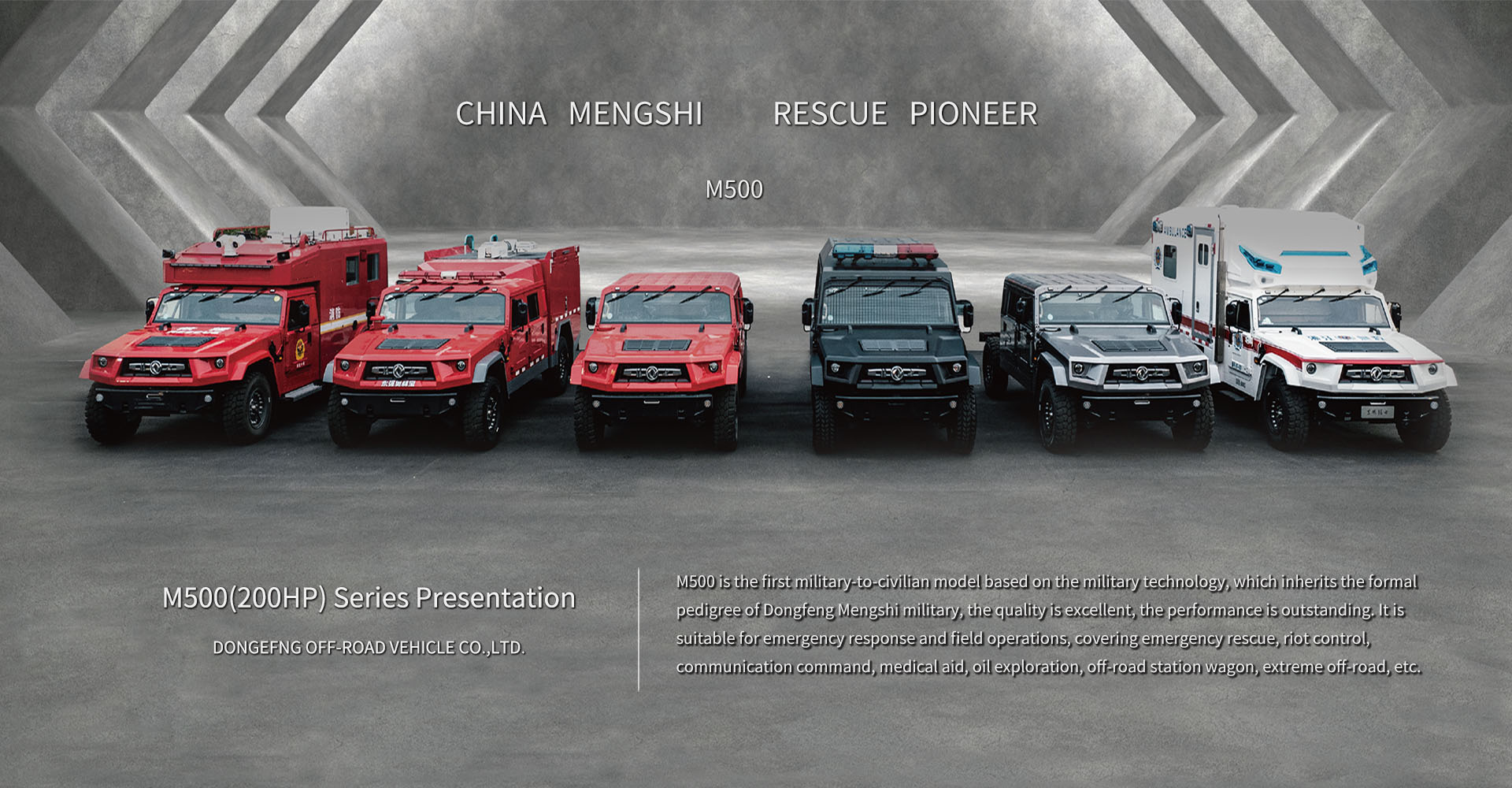

M500 Chassis Presentation
